PDU, 3-Ph, Switched, 16.2kW, 6 C13, 12 C19, 0U
| Item | 3-Phase Switched PDU |
|---|---|
| Number of Outlets | 18 |
| Cord Length | 1.83 m |
| Standards | UL 60950-1Class A (Emissions)NOM |
| Mounting Style | Vertical Rackmount/0U |
| Housing Material | Metal |
| Includes | Switched Rackmount PDU with Pre-Installed Mounting Buttons6 x C13/C14 Plug-Lock Cable Retention Sleeves12 x C19/C20 Plug-Lock Cable Retention SleevesSpare Installation ButtonsRack Mounting BracketsOwner's Manual |
| Max. Amps | 45 |
| Green Environmental Attribute | Yes |
| Width | 2.2 in |
| NEMA Plug Configuration | IEC-309 60A BLUE (3P+E) |
| Voltage | 208V |
| Height | 70 in |
| Circuit Breaker | Yes |
| NEMA Receptacle Configuration | C13, C19 |
| Depth | 2-1/2 in |
| Frequency | 50/60 Hz |
| Green Certification or Other Recognition | RoHS |
| Mouting Style | Rack-mountable |
| Input Current | 45 A |
| Mounting Orientation | Vertical |
| Power Rating (Watt) | 16.2 kW |
| Package Contents | Switched Rackmount PDU with Pre-Installed Mounting Buttons, 6 x C13/C14 Plug-Lock Cable Retention Sleeves, 12 x C19/C20 Plug-Lock Cable Retention Sleeves, Spare Installation Buttons, Rack Mounting Brackets, Owner's Manual |
| Certifications & Standards | UL 60950-1, Class A (Emissions), NOM |
| Mount Type | Rack-mountable |
| PDU Type | Switched |
| Input Voltage | 230 V AC |
| Product Type | PDU |
| Product Name | Switched Rackmount PDU with Pre-Installed Mounting Buttons |
| Plug/Connector Type | IEC 60309 60A |
| Output Voltage | 220 V AC |
| Receptacle Detail | 12 x IEC 60320 C19, 6 x IEC 60320 C13 |
| Rack Height | 0 U |
| Protection Type | Overload Protection |
| Network (RJ-45) | Yes |
| Input Phase | 3-Phase |
| Switches | Set of UP/DOWN arrow buttons scroll through available Input, Bank, Power, Load balance and Sensor options; Additional MODE button advances the LEDs to view the next measurement |
| Voltage Measurement Accuracy (Volts) | +/-1% |
| Output Nominal Voltage | 208 |
| Power Measurement Accuracy (Watts) | +/-1% |

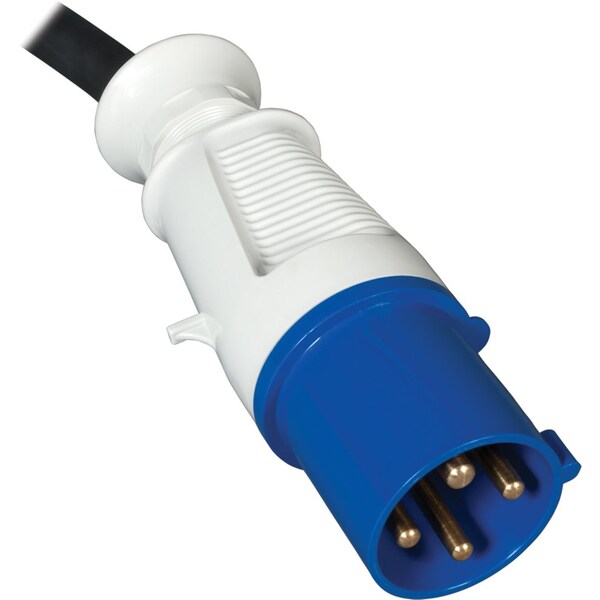

| PDU Plug Type | IEC-309 60A BLUE |
| Customized Load Management Receptacles | Each outlet is individually controllable via remote interface |
| Unit Dimensions (hwd / in.) | 70 x 2.17 x 2.49 |
| Operating Elevation (ft.) | 0-10,000 |
| Current Measurement Accuracy (Amps) | +/-1% |
| Network Compatibility | 10 Mbps; 100 Mbps (Fast Ethernet) |

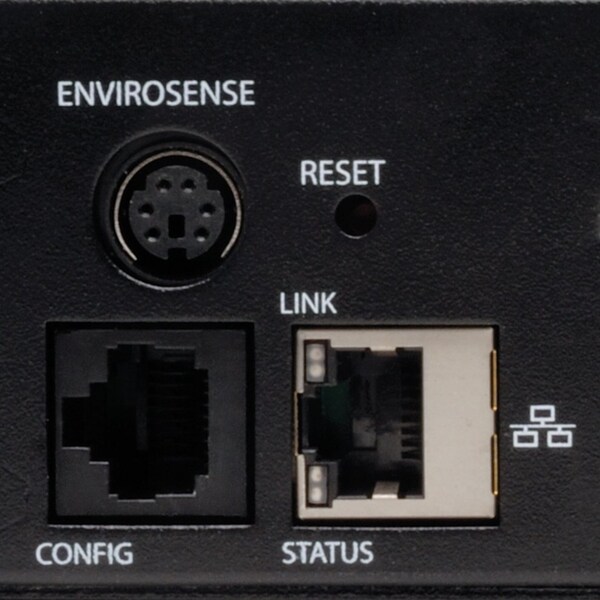

| Communications Cable | RJ45-to-DB9 configuration/console Access cable |
| Input Cord Length (ft.) | 6 |

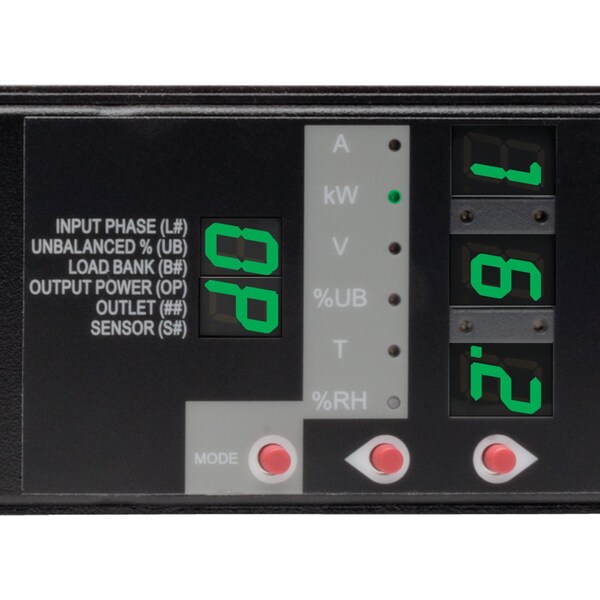

| Front Panel LCD Display | Large digital display reports Amperage, Kilowatts, Voltage, Unbalance percentage, Temperature* and Humidity* information (*requires ENIVIROSENSE option); Small digital display provides detail on the measurement the large display is reporting: Input-phase (L#), Load bank (B#), Sensor (S#), Outlet (##), Load unbalance % (UB), Output power (OP) |
| Relative Humidity | 5 to 95% (non condensing) |

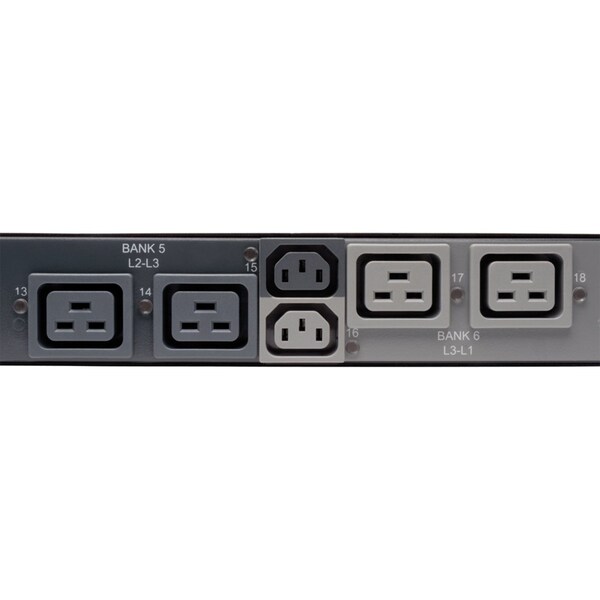

| Reported Load Segments | Reports input current per phase (L1, L2, L3), plus output current for each output load bank (B1-B6) and individual output receptacle (1-18); Outlets are color-coded and labeled for phase and load bank identification; L1-L2 feeds black outlets (B1, B4); L2-L3 feeds dark-gray outlets (B2, B5); L3-L1 feeds light-gray outlets (B3, B6) |
| SNMP Compatibility | Yes, pre-installed SNMPWEBCARD provides remote monitoring via web, telnet, SSH and SNMP management systems |
| Maximum Input Amps | 45 |
| Frequency Compatibility | 50 / 60 Hz |
| Recommended Electrical Service | 60A 208V with IEC309 60A Blue (3P+E) outlet |
| Output Receptacles | C13, C19 |
| PDU Form Factor | Vertical |

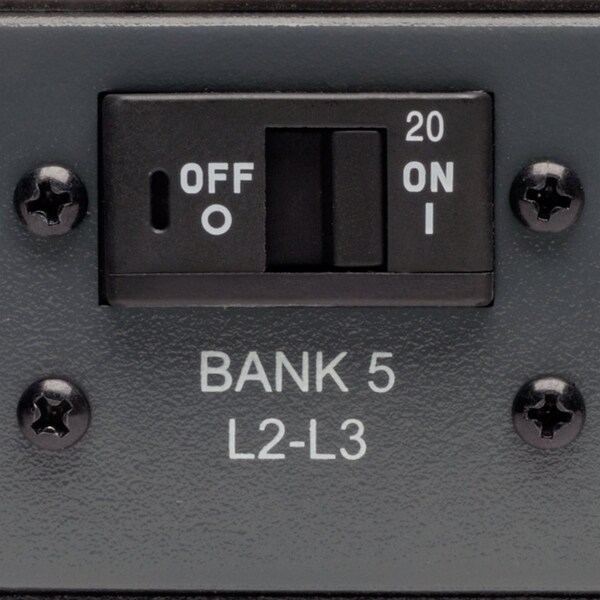

| Overload Protection | 6 20A circuit breakers, 1 per outlet bank |

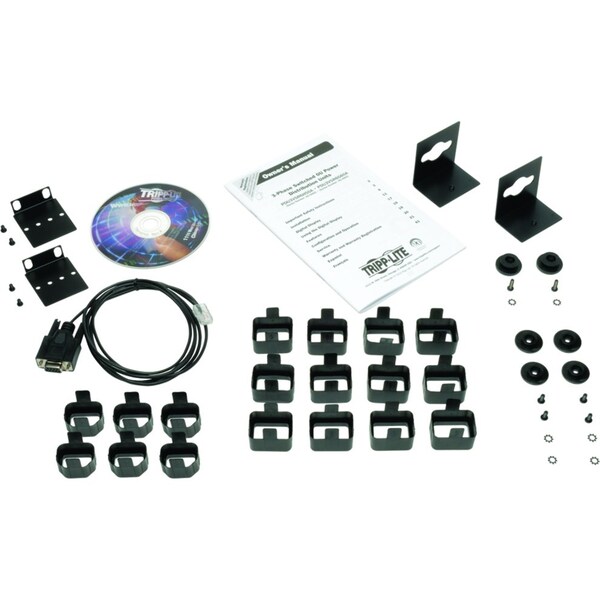

| Package Includes | Switched rackmount PDU with pre-installed mounting buttons;6 C13/C14 and 12 C19/C20 Plug-lock cable retention sleeves;Spare installation buttons (2 9mm / 4 6mm);Rack mounting brackets;Owner's manual |
| Front Panel LEDs | Set of 6 LEDs identify the value displayed on the large digital display: Amperage (A), Kilowatts (kW), Voltage (V), Unbalance percentage (%UB), Temperature (T), Humidity (%RH); One additional LED for each output receptacle offers power availability information: GREEN (Power ON, load bank capacity <80%), YELLOW (Power ON, load bank capacity >80%), RED (Power OFF/undervoltage), RED FLASHING (Power OFF/breaker trip) |
| Form Factors Supported | Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks |
| Material of Construction | Metal |
| Output Capacity Details | 16.2kW (208V) total capacity; 26A max per output phase (L1-L2, L2-L3, L3-L1); 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet |
| Package Quantity | 1 |
