PDU, 3-Ph, Switched, 18kW, 24 C13, 6 C19, 0U
| Item | 3-Phase Switched PDU |
|---|---|
| Type | Switched |
| Number of Outlets | 30 |
| Cord Length | 1.83 m |
| Standards | UL60950-1, CSA22.2, NOM, FCC Class A, TAA Compliant |
| Includes | Mounting Brackets |
| Housing Material | Metal |
| Height | 70 in |

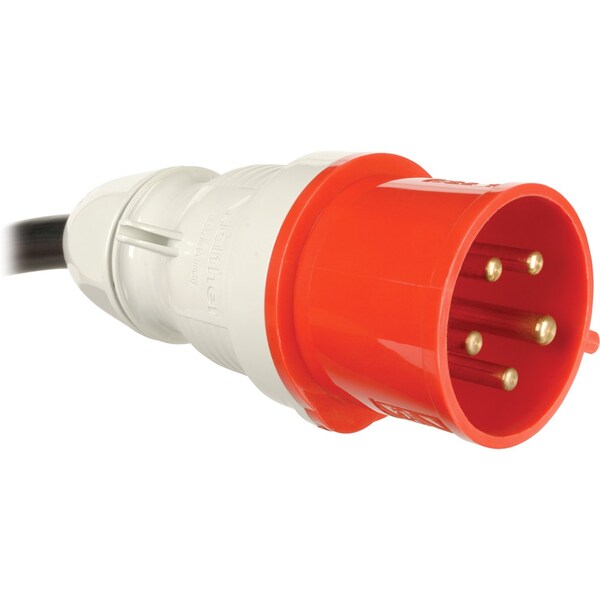

| NEMA Plug Configuration | IEC-309 30A RED (3P+N+E) |
| NEMA Receptacle Configuration | C13, C19 |
| Voltage | 415/240V |
| Depth | 2-1/2 in |
| Metered | Yes |
| Circuit Breaker | Yes |
| Phase | 3 |
| Hz | 50/60 Hz |
| Max. Amps | 24 |
| Power Indicator | Yes |
| Mounting Style | Vertical Rackmount/0U |
| Width | 2.2 in |
| Frequency | 50/60 Hz |
| Features | Large Digital Display Reports Amperage, Kilowatts, Voltage, Unbalance Percentage, Temperature and Humidity, Small Digital Display Provides Detail On The Measurement The Large Display Is Reporting |
| Watts | 17.3kW (415/240V), 16.6kW (400/230V), 15.8kW (380/220V) |
| Product Name | Switched PDU3XVSR6G30B 30-Outlets PDU |
| Power Rating (Watt) | 17.3 kW |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Output Voltage | 240 V AC |
| Product Type | PDU |
| Plug/Connector Type | IEC 60309 30A RED 3P+N+E |
| Certifications & Standards | UL60950-1, CSA22.2, NOM, FCC Class A |
| Package Contents | Switched PDU3XVSR6G30B 30-Outlets PDU, Plug-Lock Cable Retention Inserts, Spare Installation Buttons (2 9mm / 4 6mm), Mounting Brackets, Configuration Cable, Owner's Manual |
| PDU Type | Switched |
| Rack Height | 0 U |
| Product Series | Switched |

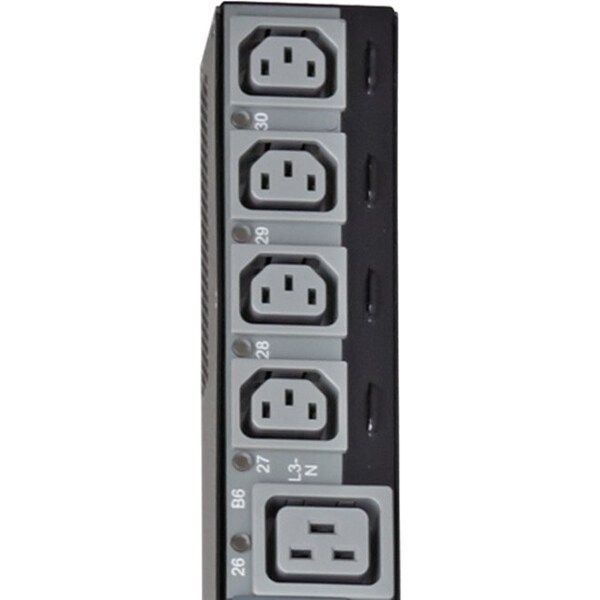

| Receptacle Detail | 24 x IEC 60320 C13, 6 x IEC 60320 C19 |
| Input Current | 24 A |
| Protection Type | Overload Protection |
| PDU Input Voltage | 380-415V |
| Frequency Compatibility | 50 / 60 Hz |
| Output Capacity Details | 17.3kW (415/240V), 16.6kW (400/230V), 15.8kW (380/220V) total capacity; 24A max per output phase (L1, L2, L3); 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet |
| Material of Construction | Metal |
| Reported Load Segments | Reports input current per phase (L1, L2, L3), plus output current for each output load bank (B1-B6) and individual output receptacle (1-30); Outlets are color-coded and labeled for phase and load bank identification; L1-N feeds black outlets (B1, B4); L2-N feeds dark-gray outlets (B2, B5); L3-N feeds light-gray outlets (B3, B6) |
| PDU Plug Type | IEC-309 30A RED |
| Storage Temperature Range | -30°C to +60°C (-22°F to +140°F) |
| Operating Temperature Range | 0C ~ 50C (32F ~ 122F) |
| Current Measurement Accuracy (Amps) | +/-1% |
| Front Panel LEDs | Set of 6 LEDs identify the value displayed on the large digital display: Amperage (A), Kilowatts (kW), Voltage (V), Unbalance percentage (%UB), Temperature (T), Humidity (%RH); One additional LED for each output receptacle offers power availability information: GREEN (Power ON, load bank capacity <80%), YELLOW (Power ON, load bank capacity >80%), RED (Power OFF/undervoltage), RED FLASHING (Power OFF/breaker trip) |
| Input Cord Length (ft.) | 6 |
| Input Phase | 3-Phase |
| Unit Dimensions (hwd / in.) | 70 x 2.17 x 2.52 |
| Relative Humidity | 5 to 95% (non condensing) |
| Operating Elevation (ft.) | 0-10,000 |

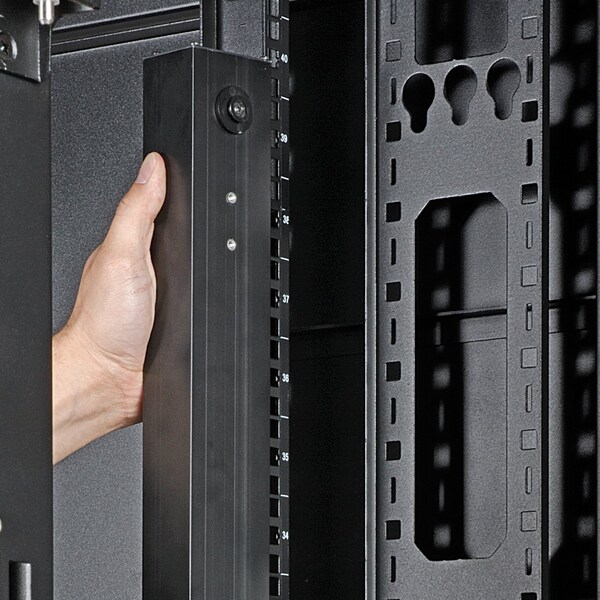

| Form Factors Supported | Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks |

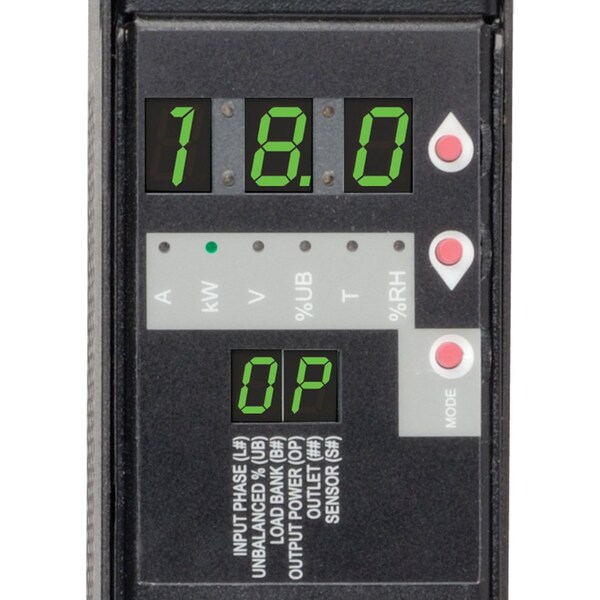

| Front Panel LCD Display | Large digital display reports Amperage, Kilowatts, Voltage, Unbalance percentage, Temperature* and Humidity* information (*requires ENIVIROSENSE option); Small digital display provides detail on the measurement the large display is reporting: Input-phase (L#), Load bank (B#), Sensor (S#), Outlet (##), Load unbalance % (UB), Output power (OP) |
| Voltage Measurement Accuracy (Volts) | +/-1% |
| Output Nominal Voltage | 220-240V |

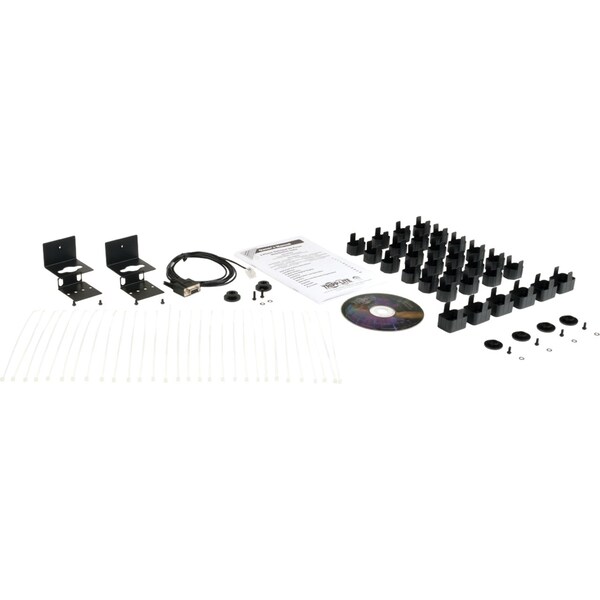

| Package Includes | Switched, vertical rackmount PDU with pre-installed mounting buttons;24 C13/C14 and 6 C19/C20 Plug-lock cable retention inserts;Spare installation buttons (2 9mm / 4 6mm), Mounting brackets;Configuration cable;Owner's manual |
| Power Measurement Accuracy (Watts) | +/-1% |
| Network Compatibility | 10 Mbps; 100 Mbps (Fast Ethernet) |
| Recommended Electrical Service | Three-phase 30A 380-415V service |

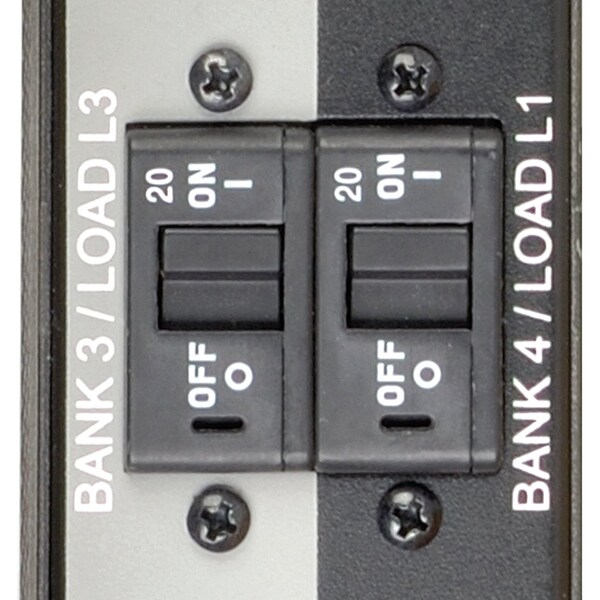

| Overload Protection | 6 20A breakers protect 4 C13 and 1 C19 outlet each |
| Switches | Set of UP/DOWN arrow buttons scroll through available Input, Bank, Power, Load balance and Sensor options; Additional MODE button advances the LEDs to view the next measurement |
| Communications Cable | RJ45-to-DB9 configuration/console Access cable |
| PDU Form Factor | Vertical |
| Maximum Input Amps | 24 |
| Output Receptacles | C13, C19 |
| Package Quantity | 1 |
