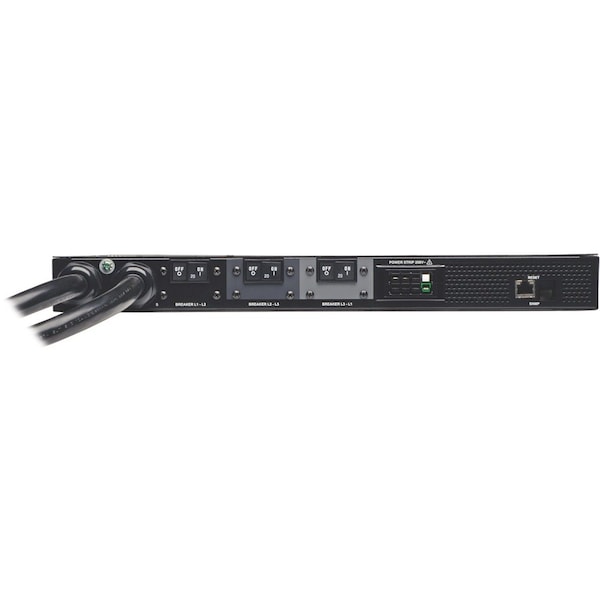

PDU, 3-Phase, ATS, 8.6kW, 208V, 2 L15-30P, 1U
| Item | 3-Phase Monitored Rack ATS |
|---|---|
| Cord Length | 1.83 m |
| Housing Material | Steel |
| NEMA Receptacle Configuration | C13, C19 |

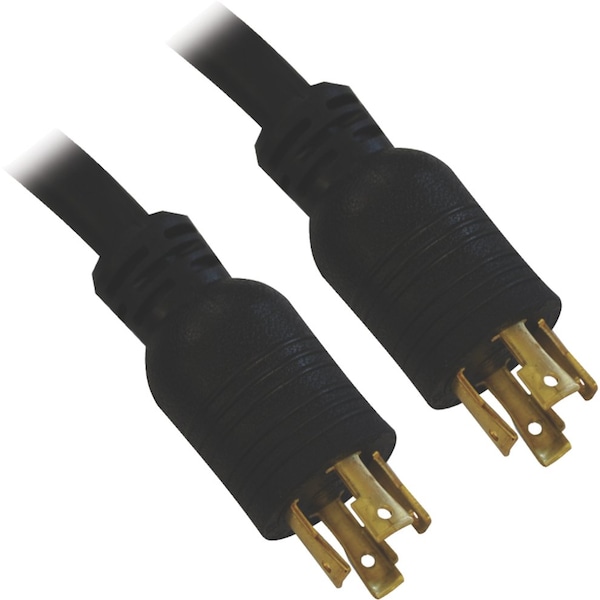

| NEMA Plug Configuration | (2) NEMA L15-30P |
| Voltage | 208V |
| Mounting Style | Horizontal Rackmount/1U |
| Width | 16.9 in |
| Max. Amps | 24 |
| Height | 1.7 in |
| Depth | 26 in |
| Frequency | 50/60 Hz |
| Product Color | Black |
| Certifications & Standards | UL/CSA 60950-1, NOM, Class A |
| Product Type | Automatic Transfer Switch |
| Package Contents | PDU330AT6L15 Automatic Transfer Switch, Grounding Lug, User Manual With Warranty Information |
| Product Name | PDU330AT6L15 Automatic Transfer Switch |
| Output Voltage | 208 V AC |
| Compatibility | Tripp Lite PDUs: PDU3V351, PDU3V354, PDU3V354A |
| Form Factor | Rack-mountable |
| Current | 24 A |
| Rack Height | 1 U |
| Load Capacity | 8600 VA |
| Plug/Connector Type | L21-30P |
| Input Voltage | 208 V AC |
| Operating Elevation (ft.) | 0-10,000 |
| Front Panel LCD Display | Large 3-character display reports data for reported values; Additional 2 character identifies the measurement value or specific location the displayed measurement applies |
| Form Factors Supported | 1U rackmount ATS module; Separate purchase 0u vertical mount PDU outlet distribution bar sold separate (3 options available) |
| Output Receptacles | C13, C19 |
| Input Cord Length (ft.) | 6 |
| Network Compatibility | 10 Mbps; 100 Mbps (Fast Ethernet) |
| Maximum Input Amps | 24 |
| Reported Load Segments | Supports local display of A & B line INPUT CURRENT, INPUT VOLTAGE & FREQUENCY per phase, OUTPUT CURRENT, KW, VOLTAGE & POWER FACTOR per phase, TOTAL OUTPUT POWER (kW), PHASE IMBALANCE (%), TEMPERATURE (C/F), FAULT CODE and SCROLL IP |
| Input Cord Details | Set of 2 input cords enable connection to separate PRIMARY and SECONDARY power sources |
| Relative Humidity | 5 to 95% (non condensing) |
| Overload Protection | 3 20A double-pole breakers (1 per output phase) |
| Output Nominal Voltage | 208 |
| PDU Plug Type | NEMA L15-30P |
| PDU Form Factor | Horizontal |
| Output Capacity Details | 8.6kW (208V) total capacity; 13.9A max per output phase (L1-L2, L2-L3, L3-L1), 12A max per C13 outlet |
| Front Panel LEDs | Set of 6 LEDs indicate A/B input PREFERRED, AVAILABLE & IN USE status; Set of 5 LEDs label the measurement value displayed (AMPS, KW, VOLTS, HZ & POWER-FACTOR); One additional red LED reports BREAKER TRIP status |
| Unit Dimensions (hwd / in.) | 1.72 x 17 x 25.98 |
| PDU Type | Monitored, Auto-Transfer Switch |
| High Availability PDU Features | Auto-Transfer Switching |
| Switches | MODE and ENTER buttons enable navigation and viewing of all reported information |
| Grounding Details | Yes |
| Package Includes | Monitored PDU with ATS Support;User manual with warranty information |
| Frequency Compatibility | 50 / 60 Hz |
| Material of Construction | Steel |
| Communications Cable | DIN-to-DB9 configuration/console Access cable |
| Input Phase | 3-Phase |
| Output Receptacle Details | 0U vertical output power distribution component is a required accessory; Order REQUIRED PDU accessory PDU3V20D354 (54 C13 outlets), PDU3V20D354A (42 C13 and 12 C19 outlets) or PDU3V20D354B (48 C13 and 6 C19 outlets) |
| Package Quantity | 1 |
