PDU, 3-Phase, Switched, 10kW 3, 24 C13, 6 C19, 0U
| Item | 3-Phase Switched PDU |
|---|---|
| Type | Switched |
| Number of Outlets | 30 |
| Cord Length | 1.83 m |
| Standards | UL/CAN 60950-1, Class A, NOM, TAA Compliant |
| Housing Material | Steel |

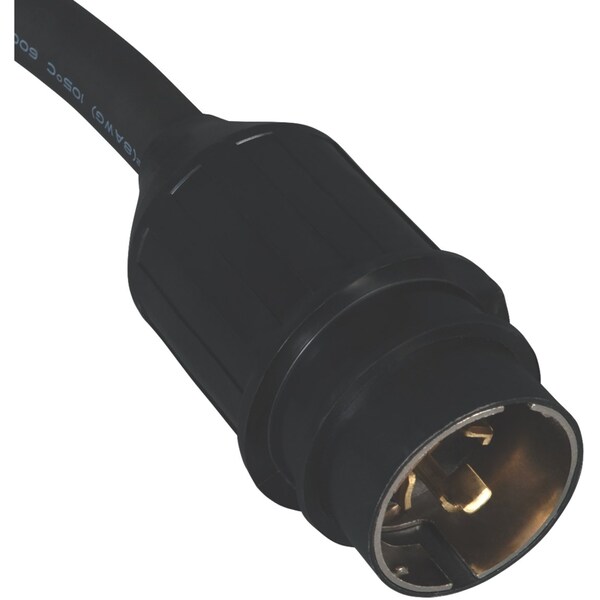

| NEMA Plug Configuration | NEMA L21-30P |
| Phase | 3 |
| Mounting Style | Vertical Rackmount/0U |
| Circuit Breaker | Yes |
| Max. Amps | 24 |
| Voltage | 200/208/240V |
| Depth | 2-1/2 in |
| Height | 70 in |
| Power Indicator | Yes |
| Hz | 50/60 Hz |
| Includes | Mounting Brackets |
| Metered | Yes |
| Width | 2.2 in |
| NEMA Receptacle Configuration | C13, C19 |
| Frequency | 50/60 Hz |
| Features | Large Digital Display Reports Amperage, Kilowatts, Voltage, Unbalance Percentage, Temperature and Humidity, Small Digital Display Provides Detail On The Measurement The Large Display Is Reporting |
| Watts | 10kW (240V), 9.6kW (230V), 9.1kW (220V), 8.6kW (208V), 8.3kW (200V) |
| Input Voltage | 230 V AC |
| Power Rating (Watt) | 10 kW |
| Plug/Connector Type | NEMA L21-30P |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Product Name | PDU3VS6L2130 30-Outlets PDU |
| Package Contents | PDU3VS6L2130 30-Outlets PDU, Plug Lock Cord Retention Sleeves, Spare Installation Buttons, Mounting Brackets, Configuration Cable, Owner's Manual |
| Product Type | PDU |
| Rack Height | 0 U |
| Receptacle Detail | 6 x IEC 60320 C19, 24 x IEC 60320 C13 |
| Output Voltage | 240 V AC |
| Input Current | 24 A |

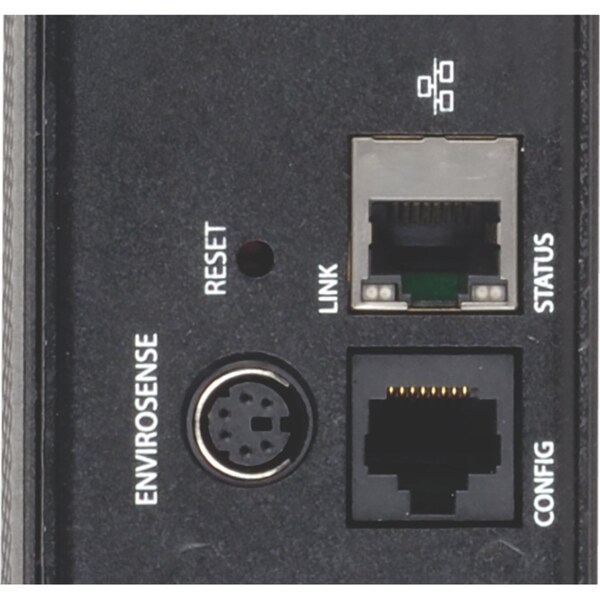

| Network (RJ-45) | Yes |
| Switches | Set of UP/DOWN arrow buttons scroll through available Input, Bank, Power, Load balance and Sensor options; Additional MODE button advances the LEDs to view the next measurement |

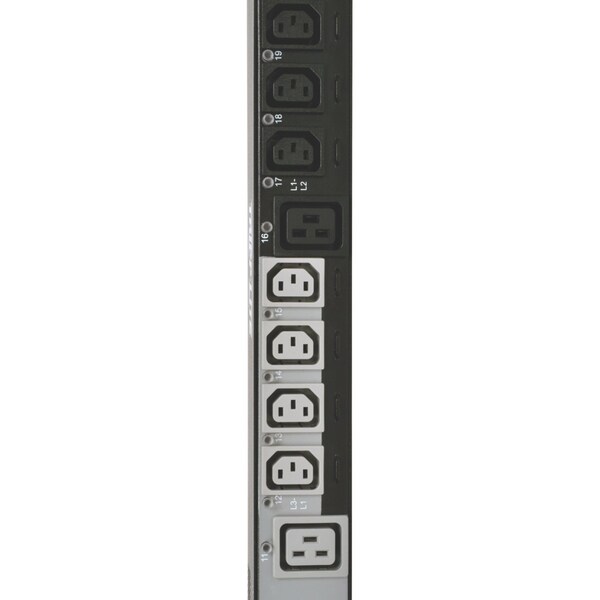

| Reported Load Segments | Reports input current per phase (L1, L2, L3) and output current for each breakered load bank (13.9A balanced max per output load banks B1-B3); Outlets are color-coded and labeled for phase and load bank identification; L1-L2 feeds black outlets (B1); L2-L3 feeds dark-gray outlets (B2); L3-L1 feeds light-gray outlets (B3) |
| Relative Humidity | 5 to 95% (non condensing) |
| Power Measurement Accuracy (Watts) | +/-1% |
| Communications Cable | RJ45-to-DB9 configuration/console Access cable |

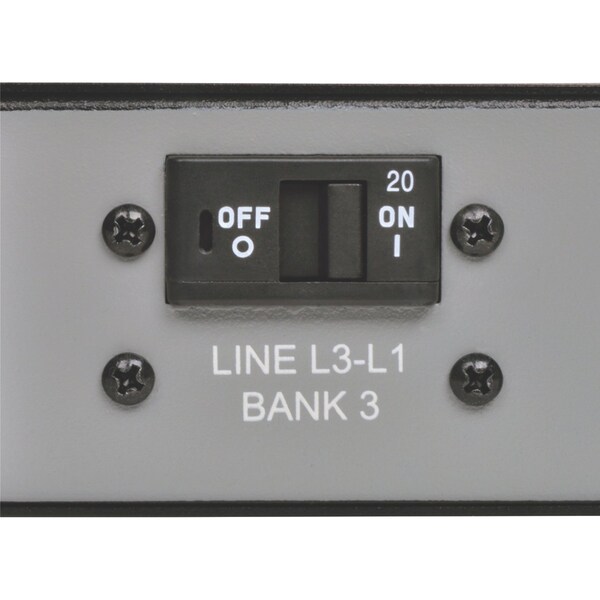

| Overload Protection | 3 20A circuit breakers, one per output load bank |
| Operating Temperature Range | 32 to 122F (0 to 50C) |
| PDU Plug Type | NEMA L21-30P |
| Operating Elevation (ft.) | 0-10,000 |
| Frequency Compatibility | 50 / 60 Hz |
| Input Cord Length (ft.) | 6 |

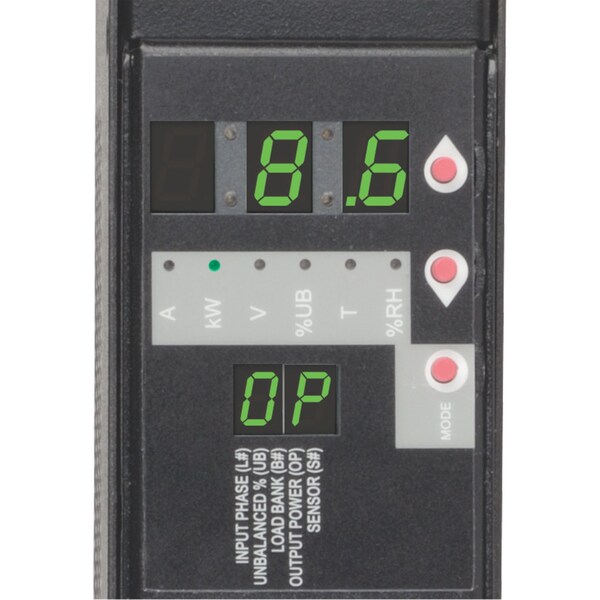

| Front Panel LCD Display | Large digital display reports Amperage, Kilowatts, Voltage, Unbalance percentage, Temperature* and Humidity* information (*requires ENIVIROSENSE option); Small digital display provides detail on the measurement the large display is reporting: Input-phase (L#), Load bank (B#), Sensor (S#), Load unbalance (UB), Output power (OP) |
| Customized Load Management Receptacles | Each outlet is individually controllable via remote interface |
| Recommended Electrical Service | 30A 208/240V with L21-30R outlet |
| PDU Form Factor | Vertical |
| Voltage Measurement Accuracy (Volts) | +/-1% |
| SNMP Compatibility | Yes, pre-installed SNMPWEBCARD provides remote monitoring via web, telnet, SSH and SNMP management systems |
| Maximum Input Amps | 24 |
| PDU Type | Switched |
| Unit Dimensions (hwd / in.) | 70 x 2.17 x 2.49 |

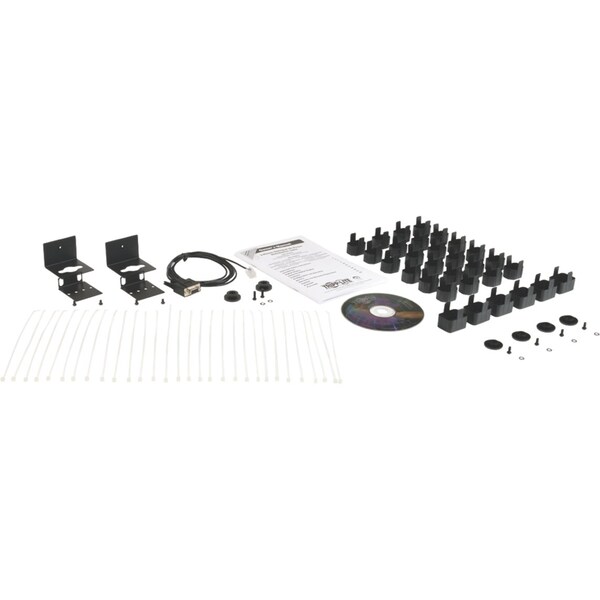

| Package Includes | Switched vertical rackmount PDU with pre-installed mounting buttons;Plug lock cord retention sleeves;Spare installation buttons (2 9mm / 4 6mm), Mounting brackets;Configuration cable;Owner's manual |
| Output Nominal Voltage | 200; 208; 240 |
| Output Receptacles | C13, C19 |
| Output Capacity Details | 10kW (240V), 9.6kW (230V), 9.1kW (220V), 8.6kW (208V), 8.3kW (200V) total capacity; 13.9A max per breakered outlet bank; 12A max per C13 outlet |
| Form Factors Supported | Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks |
| Storage Temperature Range | -30°C to +60°C (-22°F to +140°F) |
| Current Measurement Accuracy (Amps) | +/-1% |
| Input Phase | 3-Phase |
| Material of Construction | Steel |
| Network Compatibility | 10 Mbps; 100 Mbps (Fast Ethernet) |
| Front Panel LEDs | Set of 6 LEDs identify the value displayed on the large digital display: Amperage (A), Kilowatts (kW), Voltage (V), Unbalance percentage (%UB), Temperature (T), Humidity (%RH); One additional LED for each output receptacle offers power availability information: GREEN (Power ON, load bank capacity <80%), YELLOW (Power ON, load bank capacity >80%), RED (Power OFF/undervoltage), RED FLASHING (Power OFF/breaker trip) |
| Package Quantity | 1 |
