PDU, ATS/Metered, 5kW, 16C13, 2C19, L6-30R, 2U
| Item | Single-Phase Metered Automatic Transfer Switch PDU |
|---|---|
| Number of Outlets | 19 |
| Voltage | 208V |
| Cord Length | 10 ft |
| Max. Amps | 30 |
| Mounting Style | Horizontal Rackmount/2U |
| Housing Material | Metal |
| NEMA Receptacle Configuration | C13, C19, L6-30R |
| NEMA Plug Configuration | (2) NEMA L6-30P |
| Width | 17-1/2 in |
| Metered | Yes |
| Height | 3-1/2 in |
| Phase | 1 |
| Depth | 12-1/2 in |
| Hz | 50/60 Hz |
| Circuit Breaker | Yes |
| Standards | UL 60950-1, Class A, NOM, TAA Compliant |
| Frequency | 50/60 Hz |
| Features | Digital Display |
| Watts | 5kW (208/240V), 4.8kW (200V) |
| Type | Auto-Transfer Switch |
| Mount Type | Rack-mountable |
| Input Voltage | 230 V AC |
| TAA Compliant | Yes |
| Product Series | Metered |
| Input Voltage Range | 208 AC to 240 V AC |
| Plug/Connector Detail | 2 x NEMA L6-30P |
| Mounting Orientation | Horizontal |
| Package Contents | Metered PDUMH30HVAT 19-Outlets PDU, Rackmount Installation Brackets, Installable Plug-retention Shelves, Cable Ties |
| Output Voltage | 240 V AC, 208 V AC |
| Product Name | Metered PDUMH30HVAT 19-Outlets PDU |
| Product Type | PDU |
| Rack Height | 2 U |
| Receptacle Detail | 16 x IEC 60320 C13, 1 x NEMA L6-30R, 2 x IEC 60320 C19 |
| Number of Cord/Cable | 2 |
| Form Factors Supported | 2U rackmount |
| Unit Dimensions (hwd / in.) | 3.5 x 17.5 x 12.5 |

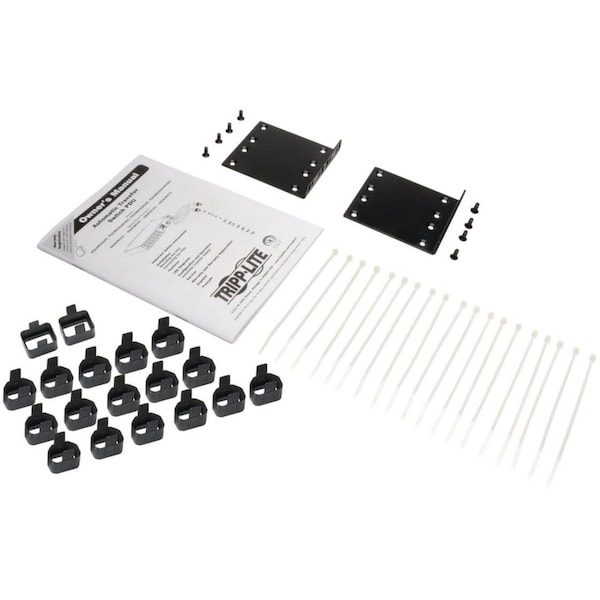

| Package Includes | Auto Transfer Switch PDU;Rackmount installation brackets;Plug-lock cable retention sleeves;Installable plug-retention shelves & cable ties |
| Relative Humidity | 5% to 95% non-condensing |
| PDU Form Factor | Horizontal |
| Maximum Input Amps | 24 |
| Output Receptacles | C13, C19, L6-30R |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Front Panel LCD Display | Digital display reports output amps in 4 separately metered loading segments (BANK 1: Outlets #1-9; BANK 2: Outlets #10-18; BANK 3: Outlet #19), whole-PDU output kW load level and input voltage on primary and secondary input lines |
| Operating Elevation (ft.) | 0-10,000 |
| Input Cord Details | Set of two inputs connect to separate PRIMARY and SECONDARY power sources |

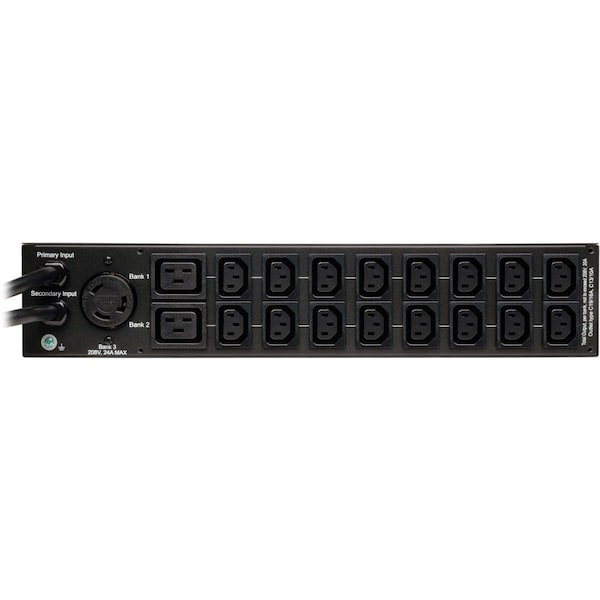

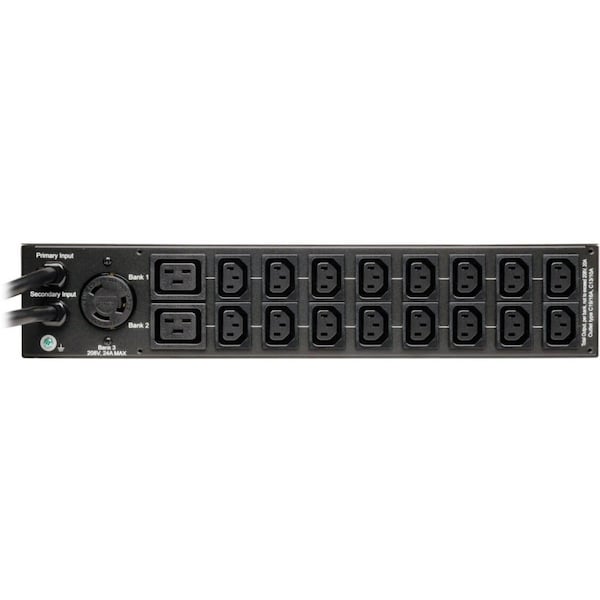

| Overload Protection | Includes two 20A output circuit breakers; Breaker 1 controls the upper row of 9 outlets (8 C13, 1 C19); Breaker 2 controls the lower row of outlets (8 C13, 1 C19); L6-30R outlet is unbreakered |
| Input Cord Length (ft.) | 10 |
| Storage Temperature Range | -22° to 122°F (-30° to 50°C) |
| Product Compliance | FCC Part 15 Class A (USA); Trade Agreements Act (TAA) |
| PDU Input Voltage | 200, 208, 220, 230, 240 |
| Material of Construction | Metal |
| High Availability PDU Features | Auto-Transfer Switching |
| Input Phase | Single-Phase |

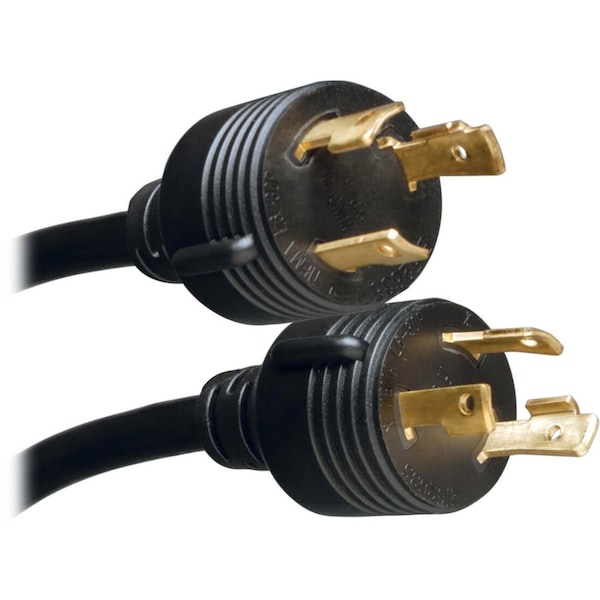

| PDU Plug Type | NEMA L6-30P |
| Recommended Electrical Service | Two single-phase 30A 200-240V circuits |
| Output Nominal Voltage | 200-240V |
| Output Capacity Details | 5.8kW (240V), 5.5kW (230V), 5.3kW (220V), 5kW (208V), 4.8kW (200V) total capacity / 30A max (Agency de-rated to 24A), 24A max per L6-30R outlet; 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet |
| Product Certifications | NOM (Mexico); UL 60950-1 |
| Switches | ENTER and MODE switches toggle the digital display to show output amps (Banks 1-4), total kW output and input voltage (primary, secondary) |
| Frequency Compatibility | 50 / 60 Hz |
| PDU Type | Local Metered |
| Front Panel LEDs | Front panel LEDs confirms amp / kilowatt / voltage reporting information |
| Minimum Required Rack Depth (inches) | 16 |
| Package Quantity | 1 |
