PDU, ATS/Switched, 3.2-3.8kW, 8 C13, 2C19, 1U
| Item | Single-Phase Switched Automatic Transfer Switch PDU |
|---|---|
| Type | Auto-Transfer Switch |
| Number of Outlets | 10 |
| Cord Length | 3.66 m |
| Standards | UL 60950, CE,, Class A, NOM, TAA Compliant |
| Power Indicator | Yes |
| Max. Amps | 20 |
| Width | 17.3 in |
| Housing Material | Metal |
| Mounting Style | Horizontal Rackmount/1U |
| NEMA Receptacle Configuration | C13, C19 |
| NEMA Plug Configuration | (2) IEC-320 C20 |
| Phase | 1 |
| Metered | Yes |
| Height | 1.7 in |
| Depth | 14.8 in |
| Voltage | 208/240V |
| Hz | 50/60 Hz |
| Frequency | 50/60 Hz |
| Features | Digital Display |
| Watts | 3.84kW (240V), 3.68kW (230V), 3.52kW (220V), 3.33kW (208V), 3.2kW (200V) |
| Rack Height | 1 U |
| Input Voltage | 230 V AC |
| Product Name | PDUMH20HVATNET PDU Switched ATS 200V - 240V 16A 10 Outlet |
| PDU Type | Switched |
| Mount Type | Rack-mountable |
| Mounting Orientation | Vertical |
| Output Voltage | 208 V AC, 220 V AC, 230 V AC, 200 V AC, 240 V AC |

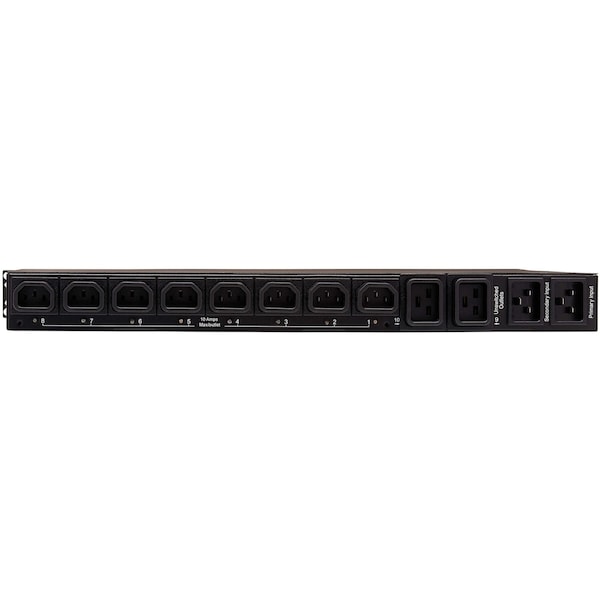

| Additional Information | Input Receptacles: 2 x IEC C20Output Receptacles: 2 x IEC C19, 8 x IEC C13 |
| Package Contents | PDUMH20HVATNET PDU Switched ATS 200V - 240V 16A 10 Outlet, User Manual with Warranty Information |
| Receptacle Detail | 8 x IEC 60320 C13, 2 x IEC 60320 C19 |
| Product Type | PDU |
| TAA Compliant | Yes |
| Material of Construction | Metal |
| Network Monitoring Port | RJ45 Network port, Micro-USB Configuration port, USB A port supports a variety of Envirosense2 environmental and control modules. See Accessories>Management Hardware section for more information about these modules. |
| Input Connection Type | Primary: C20 inlet and Secondary: C20 inlet |
| Input Cord Length (ft.) | 12 |
| Maximum Input Amps | 16 |
| Output Receptacles | C13, C19 |
| High Availability PDU Features | Auto Probe Monitoring and Reboot (included); Auto-Transfer Switching; Auto Load Shedding |
| Input Cord Details | Set of two inputs connect to separate PRIMARY and SECONDARY power sources |
| Product Compliance | CE (Europe); FCC Part 15 Class A (USA); Trade Agreements Act (TAA) |

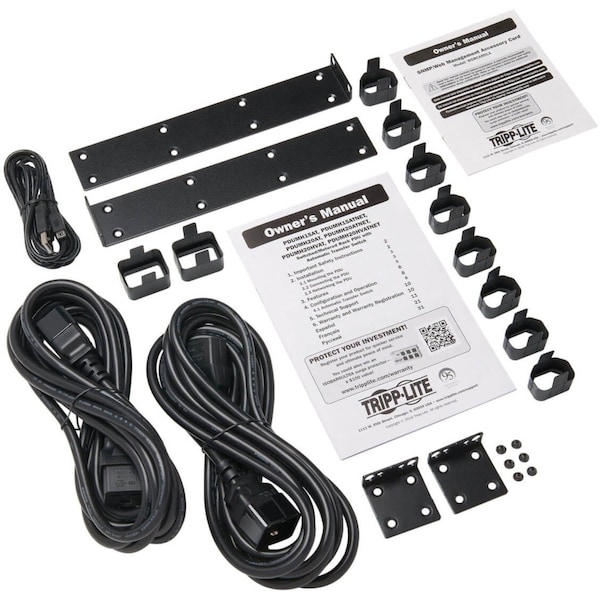

| Package Includes | Switch, Metered PDU with ATS Support;Set of 2 C19 to C20 12 ft. / 3.7m power cables;Plug-lock cable retention sleeves;User manual with warranty information |
| Product Certifications | CAN/CSA-C22.2 No. 60950-1 (Canada); NOM (Mexico); UL 60950-1 |
| Network Compatibility | 10 Mbps; 100 Mbps (Fast Ethernet) |
| Communications Cable | Micro-USB- to-USB A configuration/console Access cable |
| PDU Input Voltage | 200, 208, 220, 230, 240 |
| Customized Load Management Receptacles | 8 individually switched C13 output receptacles |
| Storage Temperature Range | -22° to 122°F (-30° to 50°C) |
| Front Panel LEDs | 8 LEDs display power on-off status for each C13 output receptacle, plus 2 additional LEDs to indicate input power status for primary and secondary inputs |
| Switches | Toggle switch near digital display enables the setting of "HI" for 220, 230 or 240V nominal applications or "LO" for 200 or 208V applications |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| PDU Form Factor | Horizontal |
| Frequency Compatibility | 50 / 60 Hz |
| Input Phase | Single-Phase |

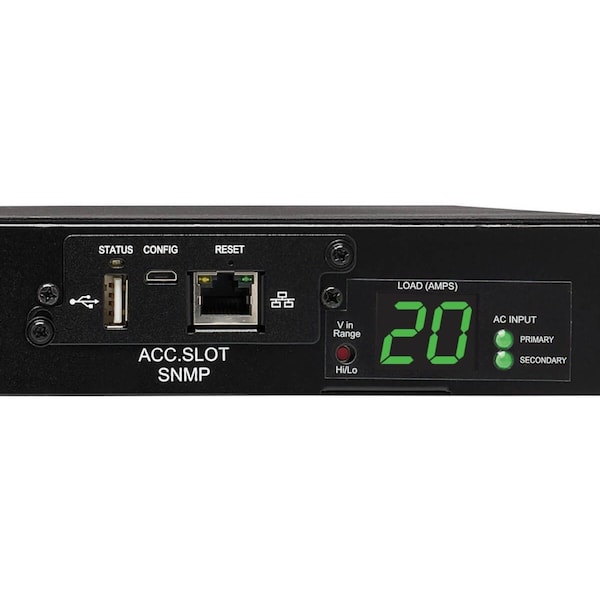

| Front Panel LCD Display | Digital display reports total PDU output current in amps |
| Output Capacity Details | 3.84kW (240V), 3.68kW (230V), 3.52kW (220V), 3.33kW (208V), 3.2kW (200V) / 16A total capacity; 16A max per C19 outlet; 12A (10A CE) max per C13 outlet |
| Output Nominal Voltage | 200-240V |
| Grounding | Rear grounding lug |
| Minimum Required Rack Depth (inches) | 18.3 |
| Relative Humidity | 5% to 95% non-condensing |
| PDU Plug Type | IEC-320 C20 |
| SNMP Compatibility | Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems |
| Recommended Electrical Service | Two single-phase 16/20A 200-240V circuits |
| Form Factors Supported | 1U rackmount |
| Unit Dimensions (hwd / in.) | 1.72 x 17.33 x 14.77 |
| Operating Elevation (ft.) | 0-10,000 |
| Package Quantity | 1 |
