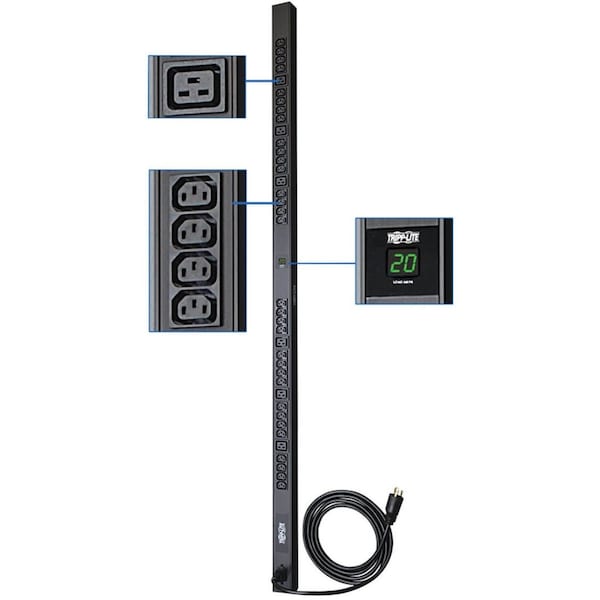

PDU, Metered, 3.2-3.8kW, 6 C19, 32 C13, 0U
| Item | Single-Phase Metered PDU |
|---|---|
| Number of Outlets | 38 |
| Voltage | 208/240V |
| Cord Length | 3.05 m |
| Max. Amps | 20 |
| Mounting Style | Vertical Rackmount/0U |
| Housing Material | Aluminum |
| NEMA Receptacle Configuration | C13, C19 |
| NEMA Plug Configuration | NEMA L6-20P; IEC-320 C20 |
| Metered | Yes |
| Standards | UL60950-1, NOM, CE (IEC 60950) |
| Phase | 1 |
| Hz | 50/60 Hz |
| Depth | 3.8 in |
| Width | 2.3 in |
| Height | 63.8 in |
| Frequency | 50/60 Hz |
| Features | Digital Meter |
| Watts | 3.84kW (240V), 3.68kW (230V), 3.52kW (220V), 3.33kW (208V), 3.2kW (200V) |
| Mount Type | Rack-mountable, Wall-mountable |
| Mounting Orientation | Vertical |
| Input Voltage Range | 208 AC to 240 V AC |
| Product Type | PDU |
| Product Name | PDUMV20HV PDU Metered 208V - 240V 20A 38 Outlet |
| Protection Type | Overload Protection |
| Input Voltage | 230 V AC |
| Output Voltage | 240 V AC, 230 V AC, 208 V AC |
| Receptacle Detail | 32 x IEC 60320 C13, 6 x IEC 60320 C19 |
| Package Contents | PDUMV20HV PDU Metered 208V - 240V 20A 38 Outlet, PDUMV20HV 63.75 inch basic PDU with owner's manual, Set of 2 bolt-on plug retention brackets and installation hardware, Set of mounting brackets and installation hardware |
| Plug/Connector Type | NEMA L6-20P |
| PDU Form Factor | Vertical |
| PDU Type | Local Metered |
| PDU Input Voltage | 208, 230 |
| Storage Temperature Range | -22° to 122°F (-30° to 50°C) |
| Form Factors Supported | 0u vertical installation in equipment racks, plus under-counter and wallmount |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Input Phase | Single-Phase |
| Product Compliance | CE (Europe); EAC (Belarus, Kazakhstan, Russia); UKCA |
| Input Connection Type | L6-20P detachable cordset, C20 inlet available |
| Output Nominal Voltage | 208/230V |
| Output Capacity Details | 3.68kW (230V), 3.33kW (208V) / 16A total capacity; 16A max per C19 outlet; 12A (10A CE) max per C13 outlet |
| Input Cord Length (ft.) | 10 |
| Product Certifications | IEC 62368-1; RETIE (Colombia); GOST (Russia); NOM (Mexico) |
| Output Receptacles | C13, C19 |
| Relative Humidity | 0% to 95% non-condensing |
| Material of Construction | Aluminum |
| Front Panel LCD Display | Digital meter reports PDU output current in amps |
| PDU Plug Type | IEC-320 C20, NEMA L6-20P |
| Maximum Input Amps | 16 |
| Frequency Compatibility | 50 / 60 Hz |
| Package Includes | PDUMV20HV 63.75 inch basic PDU;Plug-lock inserts (6 C20, 32 C13);Spare installation buttons, 2.9 mm/4.6 mm;10-ft. (3.05 m) detachable C19-to-L620P input cordset;Mounting hardware;Owner's Manual |
| Recommended Electrical Service | Single-phase 16/20A 230/208V service |
| Operating Elevation (ft.) | 0-10,000 |
| Unit Dimensions (hwd / in.) | 3.75 x 2.25 x 63.75 |
| Package Quantity | 1 |
