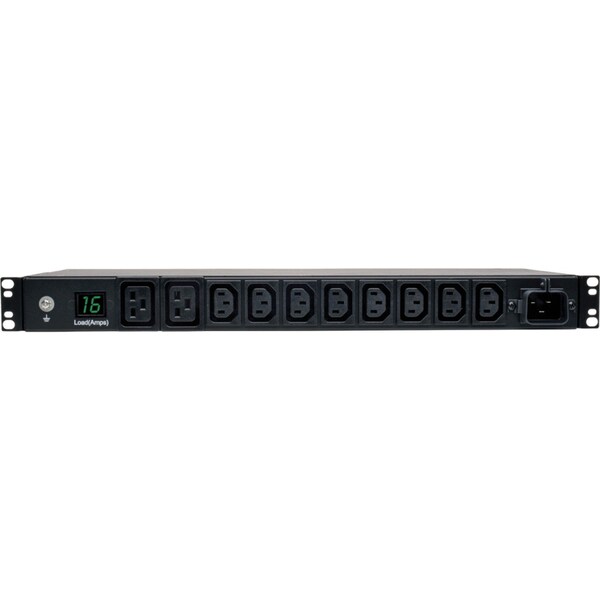

PDU, Metered, 3.8kW, 8 C13, 2 C19, 16A, 1U
| Item | Single-Phase Metered PDU |
|---|---|
| Number of Outlets | 10 |
| Cord Length | 2.5 m |
| Standards | CE (IEC / EN60950-1), GOST, TAA Compliant |
| Depth | 6-1/2 in |
| Housing Material | Metal |
| Includes | Mounting Accessories |
| Metered | Yes |
| Hz | 50/60 Hz |
| NEMA Receptacle Configuration | C13, C19 |
| Max. Amps | 16 |
| Phase | 1 |
| Width | 17-1/2 in |
| Voltage | 230V |
| NEMA Plug Configuration | IEC-309 16A BLUE (2P+E) |
| Mounting Style | Horizontal Rackmount/1U |
| Height | 1.8 in |
| Frequency | 50/60 Hz |
| Features | Digital Display |
| Watts | 3.84kW (240V), 3.68kW (230V), 3.52kW (220V), 3.2kW (200V) |
| Receptacle Detail | 8 x IEC 60320 C13, 2 x IEC 60320 C19 |

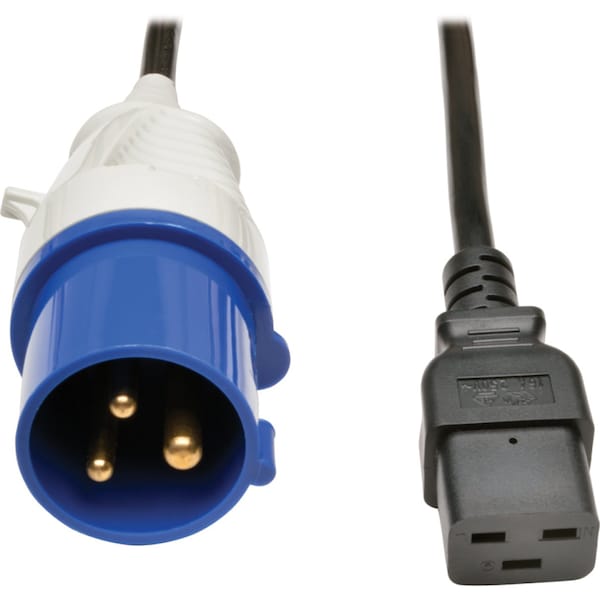

| Plug/Connector Type | IEC 60309 16A Blue |
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Product Type | PDU |
| Package Contents | Metered PDUMH16HV 10-Outlets PDU, Rack Mounting Brackets, Plug Lock Inserts, IEC-309 Blue 16A Input Cord |
| Rack Height | 1U/2U |
| Product Line | Metered |
| Input Current | 16 A |
| Output Voltage | 230 V AC, 240 V AC, 220 V AC, 200 V AC |
| Power Rating (Watt) | 3,840 W |
| Input Voltage Range | 200 AC to 240 V AC |
| TAA Compliant | Yes |
| Product Name | Metered PDUMH16HV 10-Outlets PDU |
| Input Voltage | 230 V AC |
| PDU Plug Type | IEC-309 16A BLUE |
| Grounding | Front panel grounding lug |
| Input Cord Length (ft.) | 8.2 |
| Maximum Input Amps | 16 |
| Unit Dimensions (hwd / in.) | 1.75 x 17.5 x 6.5 |
| Recommended Electrical Service | Single-phase 16/20A 230/208V service |
| Storage Temperature Range | -22° to 122°F (-30° to 50°C) |
| Frequency Compatibility | 50 / 60 Hz |
| PDU Input Voltage | 208, 230 |
| Product Compliance | CE (Europe); EAC (Belarus, Kazakhstan, Russia); FCC Part 15 Class A (USA); Trade Agreements Act (TAA) |

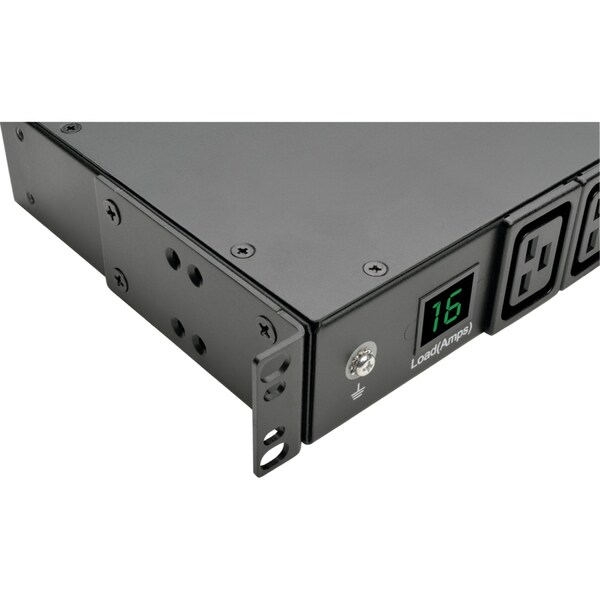

| Front Panel LCD Display | Digital display reports total PDU output current in amps |
| Form Factors Supported | 1U rackmount. Includes mounting accessories for 2-4 post racks |
| Output Nominal Voltage | 208/230V |
| Material of Construction | Metal |
| PDU Type | Local Metered |
| Output Receptacles | C13, C19 |
| Output Capacity Details | 3.7kW (230V), 3.3kW (208V) / 16A total capacity; 16A max per C19 outlet; 12A (10A CE) max per C13 outlet |

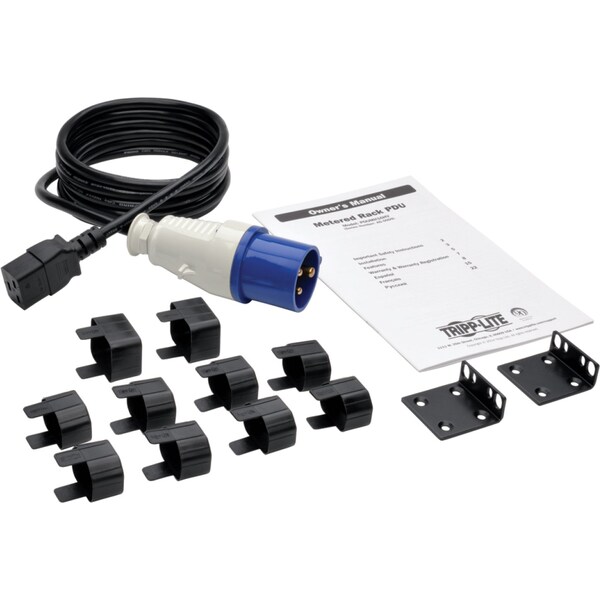

| Package Includes | Rackmount PDU;Rack mounting brackets;Plug lock inserts;IEC-309 Blue 16A input cord |
| Input Phase | Single-Phase |
| Product Certifications | IEC 62368-1; RETIE (Colombia); GOST (Russia); NOM (Mexico) |
| Minimum Required Rack Depth (inches) | 10 |
| PDU Form Factor | Horizontal |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Relative Humidity | 5% to 95% non-condensing |
| Operating Elevation (ft.) | 0-10,000 |
| Package Quantity | 1 |
