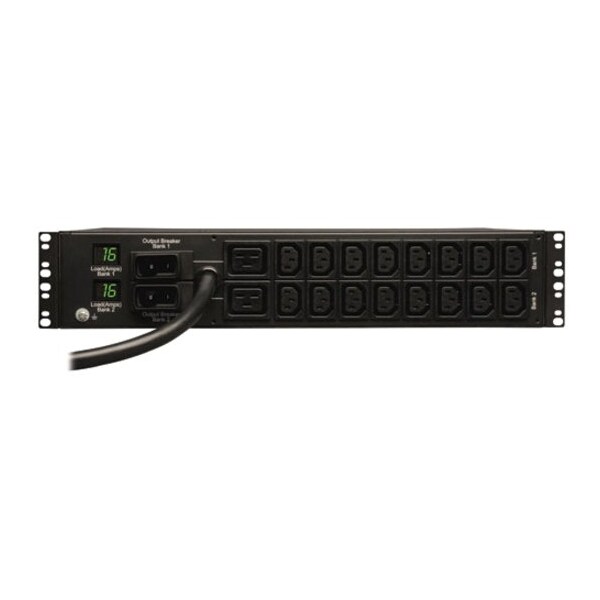

PDU, Metered, 7.4kW, 230V, 2 C19, 16C13, 2U
| Item | Single-Phase Metered PDU |
|---|---|
| Number of Outlets | 18 |
| Cord Length | 3.66 m |
| Standards | CE/IEC 60950-1, UL, CSA, Class A, TAA Compliant |
| NEMA Receptacle Configuration | C13, C19 |
| Circuit Breaker | Yes |
| Voltage | 230V |
| Max. Amps | 32 |
| Width | 17-1/2 in |
| Hz | 50/60 Hz |
| Height | 3-1/2 in |
| Metered | Yes |
| Phase | 1 |
| Housing Material | Metal |
| Mounting Style | Horizontal Rackmount/2U |
| NEMA Plug Configuration | IEC-309 32A BLUE (2P+E) |
| Depth | 12-1/2 in |
| Frequency | 50/60 Hz |
| Features | Set of 2 Digital Current Meters |
| Watts | 7.4kW (230V) |
| Package Contents | Metered PDUMH32HV 18-Outlets 7.3kW PDU, Mounting Brackets, Plug Retention Brackets, User Manual |
| Product Series | Metered |
| TAA Compliant | Yes |
| Input Voltage | 230 V AC |
| Additional Information | Plug Type : IEC-309 32A (2P+E) |
| Receptacle Detail | 2 x IEC 60320 C19, 16 x IEC 60320 C13 |
| Product Name | Metered PDUMH32HV 18-Outlets 7.3kW PDU |
| Product Type | PDU |
| Mounting Orientation | Horizontal |
| Protection Type | Overload Protection |
| Rack Height | 2 U |
| Mount Type | Rack-mountable |
| Power Rating (Watt) | 7,300 W |
| Output Voltage | 230 V AC |
| Recommended Electrical Service | Single-phase 32A 230V service |
| Form Factors Supported | 2U rackmount |
| Product Compliance | CE (Europe); EAC (Belarus, Kazakhstan, Russia); FCC Part 15 Class A (USA); UKCA; Trade Agreements Act (TAA) |
| Material of Construction | Metal |
| Minimum Required Rack Depth (inches) | 16 |
| Unit Dimensions (hwd / in.) | 3.5 x 17.5 x 12.5 |
| Frequency Compatibility | 50 / 60 Hz |
| Overload Protection | Two 20A circuit breakers protect 9 outlets each |
| Output Nominal Voltage | 230V |
| PDU Plug Type | IEC-309 32A BLUE |
| PDU Form Factor | Horizontal |
| Storage Temperature Range | -22° to 122°F (-30° to 50°C) |
| Output Receptacles | C13, C19 |
| Input Cord Length (ft.) | 12 |
| Relative Humidity | 5% to 95% non-condensing |
| PDU Input Voltage | 230 |
| Operating Elevation (ft.) | 0-10,000 |
| Output Capacity Details | 7.4kW (230V) / 32A total capacity / 16A max per breakered outlet bank; 16A max per C19 outlet; 10A max per C13 outlet |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Package Includes | 2U local metered PDU;Mounting brackets;Plug retention brackets;User manual |
| Product Certifications | IEC 62368-1; GOST (Russia); UL 62368-1 |
| Input Phase | Single-Phase |
| Front Panel LCD Display | Set of 2 digital meters continuously report output current for breakered load bank; Bank 1 (Upper row of 9 outlets), Bank 2 (Lower row of 9 outlets) |
| Maximum Input Amps | 32 |
| PDU Type | Local Metered |
| Package Quantity | 1 |
