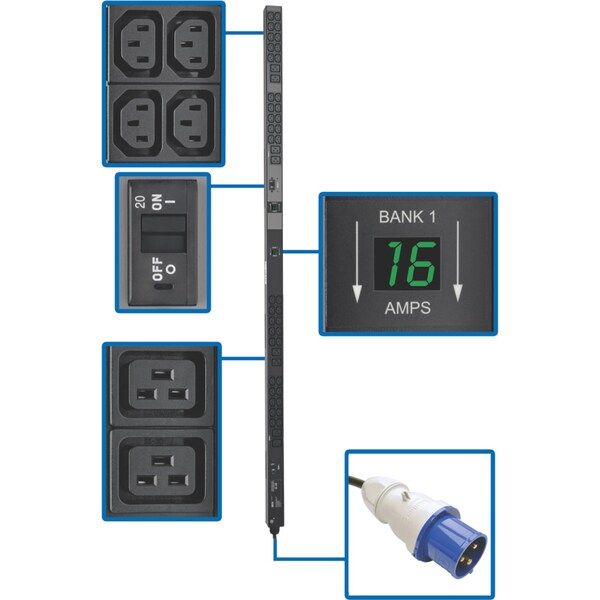

PDU, Metered, 7.4kW, 230V, 8 C19/40 C13, 0U
| Item | Single-Phase Metered PDU |
|---|---|
| Number of Outlets | 48 |
| Cord Length | 3.05 m |
| Standards | CE EN 60950-1, CE Class A |
| Hz | 50/60 Hz |
| Voltage | 230V |
| NEMA Plug Configuration | IEC-309 32A BLUE (2P+E) |
| Height | 70 in |
| Housing Material | Metal |
| NEMA Receptacle Configuration | C13, C19 |
| Phase | 1 |

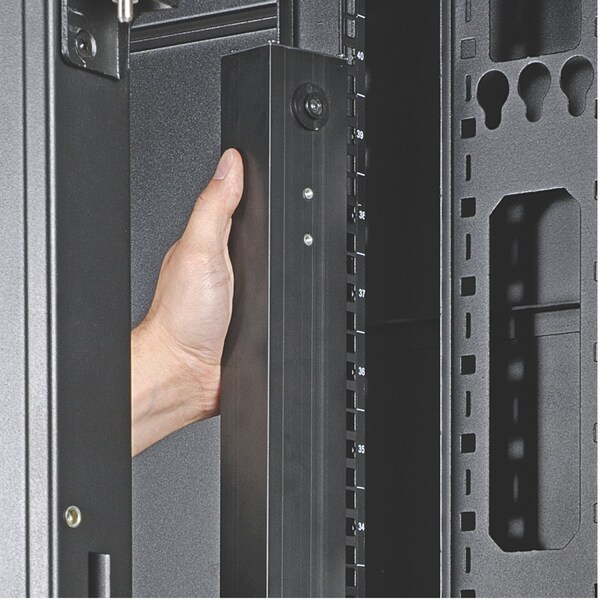

| Mounting Style | Vertical Rackmount/0U |
| Width | 2.2 in |
| Circuit Breaker | Yes |
| Metered | Yes |
| Depth | 2-1/2 in |
| Max. Amps | 32 |
| Frequency | 50/60 Hz |
| Features | Set of Two Digital Current Meters |
| Watts | 7.7kW (240V), 7.4kW (230V), 7kW (220V), 6.7kW (208V), 6.4kW (200V) |
| Power Rating (Watt) | 7,400 W |
| Rack Height | 0 U |
| Output Voltage | 230 V AC |

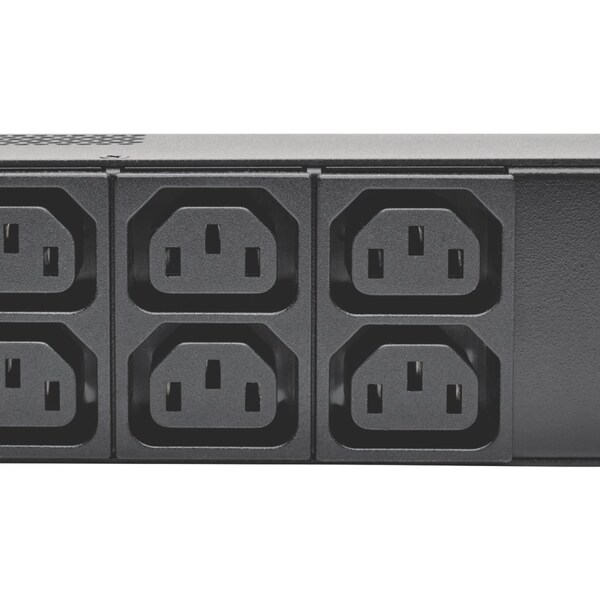

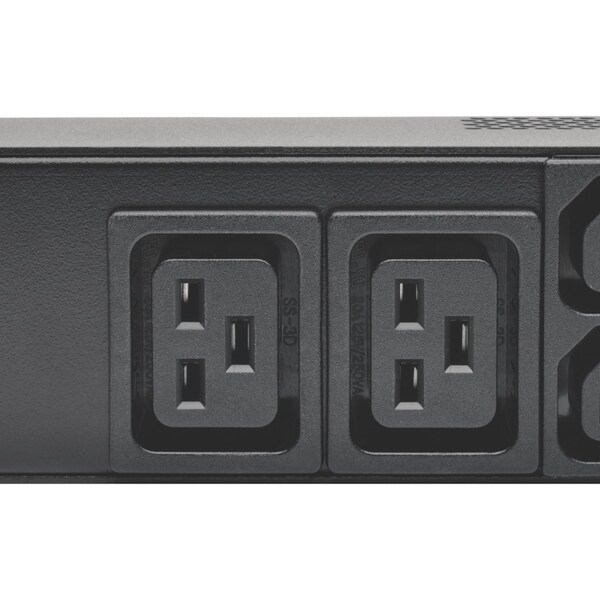

| Receptacle Detail | 40 x IEC 60320 C13, 8 x IEC 60320 C19 |
| TAA Compliant | Yes |
| Mounting Orientation | Vertical |
| Package Contents | Metered PDUMV30HV 48-Outlet PDU, Plug-lock inserts (8 C20, 40 C13), Spare installation buttons, 2.9mm/4.6 mm, Ground screw, Mounting hardware, Owner's Manual |
| Plug/Connector Type | IEC 60309 2P+E |
| Product Type | PDU |
| Input Current | 32 A |
| Product Name | Metered PDUMV32HV 48-Outlet PDU |
| Product Line | Metered |
| Input Voltage | 230 V AC |
| Protection Type | Overload Protection |
| Output Receptacles | C13, C19 |
| Relative Humidity | 5% to 95% non-condensing |
| Material of Construction | Metal |
| Output Nominal Voltage | 200-240V |
| Input Cord Length (ft.) | 10 |
| Reported Load Segments | Supports local monitoring of output current for each output load bank; Outlets, circuit breakers and current meters are color-coded and labeled for easy identification (Black: 20A Bank 1 / Gray: 20A Bank 2) |
| Operating Elevation (ft.) | 0-10,000 |

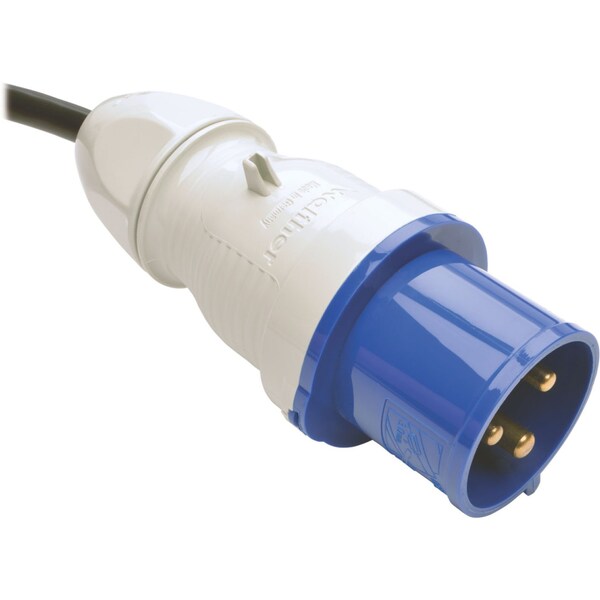

| PDU Plug Type | IEC-309 32A BLUE |
| Operating Temperature Range | 32° to 122°F (0° to 50°C) |

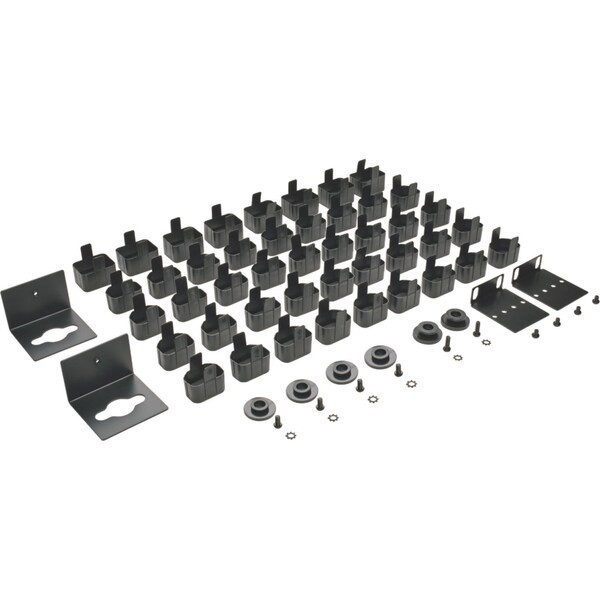

| Package Includes | PDUMV32HV 32A 200-240V 7.7kW Single-Phase Local Metered PDU;Plug-lock inserts (8 C20, 40 C13);Spare installation buttons, 2.9 mm/4.6 mm;Ground screw;Mounting hardware;Owner's Manual |
| Maximum Input Amps | 32 |
| Unit Dimensions (hwd / in.) | 70 x 2.17 x 2.52 |
| Form Factors Supported | 0u vertical installation in equipment racks, plus under-counter and wallmount |

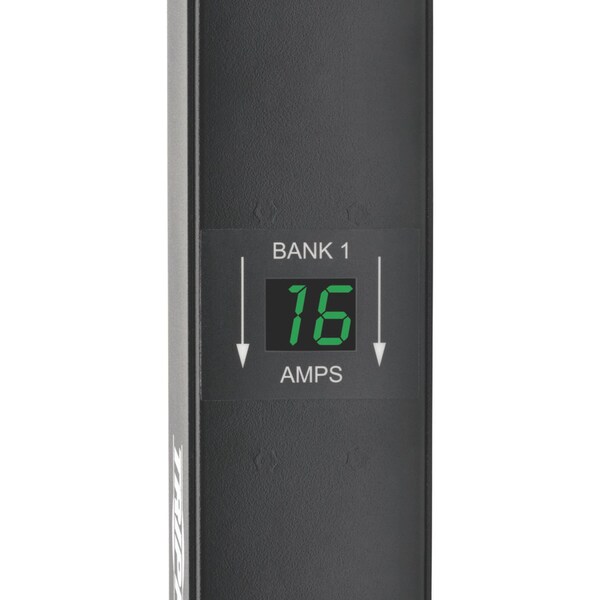

| Front Panel LCD Display | Set of two digital current meters report output current in two segments |
| PDU Form Factor | Vertical |
| Product Compliance | CE (Europe); FCC Part 15 Class B (USA); Trade Agreements Act (TAA) |
| Storage Temperature Range | -22° to 140°F (-30° to 60°C) |
| Recommended Electrical Service | Single-phase 32A 200-240V service |
| Product Certifications | IEC 62368-1; RETIE (Colombia); NOM (Mexico) |
| Frequency Compatibility | 50 / 60 Hz |
| PDU Type | Local Metered |
| PDU Input Voltage | 200, 208, 230, 240 |

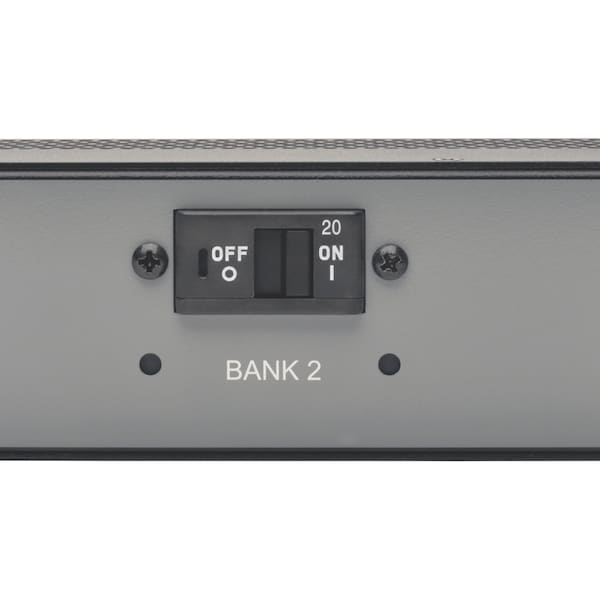

| Overload Protection | Two 20A circuit breakers protect 24 outlets each |
| Output Capacity Details | 7.7kW (240V), 7.4kW (230V), 7kW (220V), 6.7kW (208V), 6.4kW (200V) / 32A total capacity; 16A max per breakered outlet bank; 16A max per C19 outlet; 10A max per C13 outlet |
| Input Phase | Single-Phase |
| Package Quantity | 1 |
