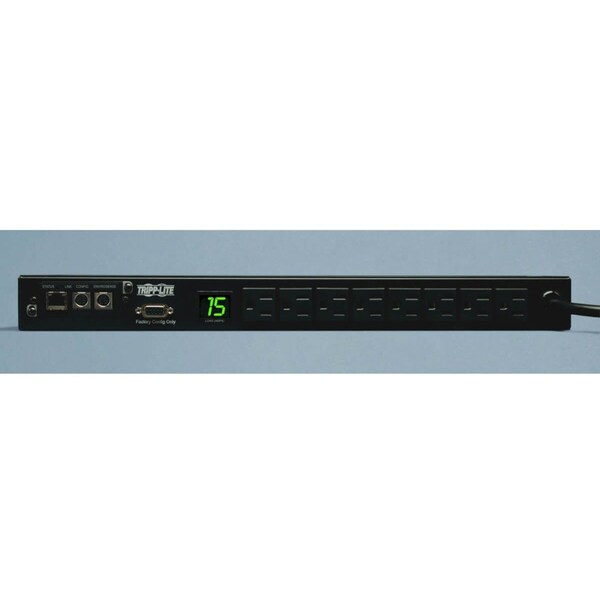

PDU, Monitored, 1.4kW, 120V, 8 5-15R, 1U
| Item | Single-Phase Monitored PDU with LX Platform Interface |
|---|---|
| Type | Monitored |
| Number of Outlets | 8 |
| Cord Length | 3.66 m |
| Standards | UL 60950, Class A, NOM, TAA Compliant |
| NEMA Receptacle Configuration | NEMA 5-15R |
| Voltage | 120V |
| Height | 1.7 in |
| Hz | 50/60 Hz |
| Max. Amps | 15 |
| Metered | Yes |
| Housing Material | Metal |
| Phase | 1 |
| Mounting Style | Horizontal Rackmount/1U |
| NEMA Plug Configuration | NEMA 5-15P |
| Width | 17.3 in |
| Depth | 6.2 in |
| Frequency | 50/60 Hz |
| Features | Digital Meter |
| Watts | 1.52kW (127V), 1.44kW (120V), 1.2kW (100V) |
| Product Type | PDU |
| Input Voltage | 120 V AC |
| Receptacle Detail | 8 x NEMA 5-15R |
| Mount Type | Rack-mountable |
| PDU Type | Monitored |
| Rack Height | 1 U |
| Output Voltage | 120 V AC |
| Mounting Orientation | Horizontal |
| Package Contents | PDUMNH15 PDU Monitored 120V 15A 8 Outlet, Rack Mounting Brackets, Owner's Manual |
| Product Name | PDUMNH15 PDU Monitored 120V 15A 8 Outlet |
| Plug/Connector Type | NEMA 5-15P |
| TAA Compliant | Yes |
| Network Compatibility | 10 Mbps; 100 Mbps (Fast Ethernet) |
| Maximum Input Amps | 12 |
| Operating Elevation (ft.) | 0-10,000 |
| Input Phase | Single-Phase |
| Input Cord Length (ft.) | 12 |
| Product Certifications | CAN/CSA-C22.2 No. 60950-1 (Canada); NOM (Mexico); UL 60950-1 |
| Frequency Compatibility | 50 / 60 Hz |
| Unit Dimensions (hwd / in.) | 1.7 x 17.3 x 6.2 |
| Communications Cable | Micro-USB- to-USB A configuration/console Access cable |
| Relative Humidity | 5% to 95% non-condensing |
| Recommended Electrical Service | Single-phase 15A 120V service |
| PDU Input Voltage | 120 |
| PDU Form Factor | Horizontal |
| Network Monitoring Port | RJ45 Network port, Micro-USB Configuration port, USB A port supports a variety of Envirosense2 environmental and control modules. See Accessories>Management Hardware section for more information about these modules. |
| PDU Plug Type | NEMA 5-15P |
| Front Panel LCD Display | Digital meter reports PDU output current in amps |
| Storage Temperature Range | -22° to 122°F (-30° to 50°C) |
| Form Factors Supported | 1U horizontal rackmount in 2 or 4 post racks |
| Product Compliance | FCC Part 15 Class A (USA); Trade Agreements Act (TAA) |
| Output Nominal Voltage | 120V |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Minimum Required Rack Depth (inches) | 9.2 |
| SNMP Compatibility | Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems |
| Material of Construction | Metal |
| Package Includes | Rackmount PDU;Rack mounting brackets;Owner's manual |
| High Availability PDU Features | Remote Network Notifications |
| Output Receptacles | 5-15R |
| Output Capacity Details | 1.44kW (120V) / 12A total capacity; 12A max per outlet |
| Package Quantity | 1 |
