PDU, Monitored, 1.9kW, 120V, 24 5-15/20R, 0U
| Item | Single-Phase Monitored PDU |
|---|---|
| Number of Outlets | 24 |
| Cord Length | 3.05 m |
| Max. Amps | 20 |
| NEMA Receptacle Configuration | NEMA 5-15/20R |
| Mounting Style | Vertical Rackmount/0U |
| Depth | 1.8 in |
| Width | 2.2 in |
| Height | 70 in |
| Housing Material | Metal |
| NEMA Plug Configuration | NEMA 5-20P; NEMA L5-20P |
| Voltage | 120V |
| Frequency | 50/60 Hz |
| Input Voltage | 120 V AC |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Product Type | PDU |
| Protection Type | Overload Protection |
| Product Name | PDUMNV20 PDU Monitored 120V 20A 24 Outlet |
| Package Contents | PDUMNV20 PDU Monitored 120V 20A 24 Outlet, Plug Retention Plates, Rack Mount Brackets, Owner's Manual, NEMA L5-20R to NEMA 5-15/20P Adapter |
| Output Voltage | 120 V AC |
| Plug/Connector Type | NEMA L5-20P, NEMA 5-20P |
| Receptacle Detail | 24 x NEMA 5-15/20R |
| PDU Type | Monitored |
| Storage Temperature Range | 5 to 122 F |
| Operating Elevation (ft.) | 0-10,000 |
| Frequency Compatibility | 50 / 60 Hz |
| Output Capacity Details | 2.03kW (127V), 1.92kW (120V), 1.6kW (100V) / 20A total capacity (Agency de-rated to 16A); 16A max per outlet |
| Recommended Electrical Service | 20A 120V |
| PDU Form Factor | Vertical |
| Communications Cable | RJ45-to-DB9 configuration/console Access cable |
| Switches | Press the SCROLL IP / ROTATE button and release after one second to display the configured IP address in 2 digit intervals; Press and release after two seconds to rotate the display 180 degrees |
| Input Phase | Single-Phase |

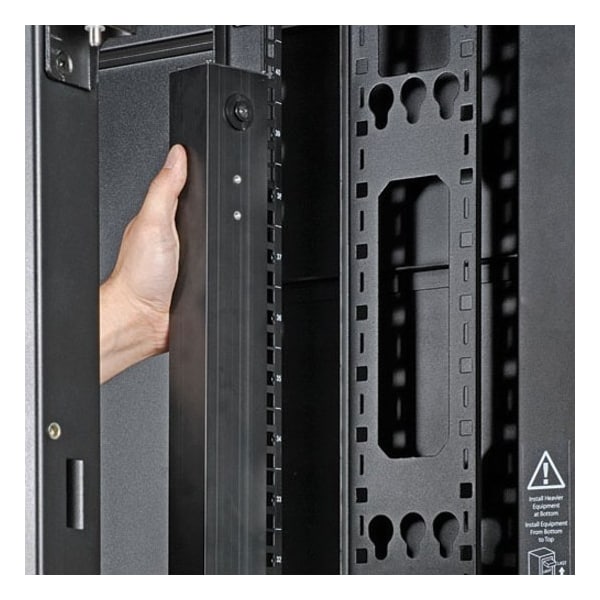

| Form Factors Supported | 0U vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks |
| SNMP Compatibility | Pre-installed SNMPWEBCARD provides remote monitoring via PowerAlert Console Launcher, Telnet, SSH, and SNMP management systems |
| Input Cord Length (ft.) | 10 |

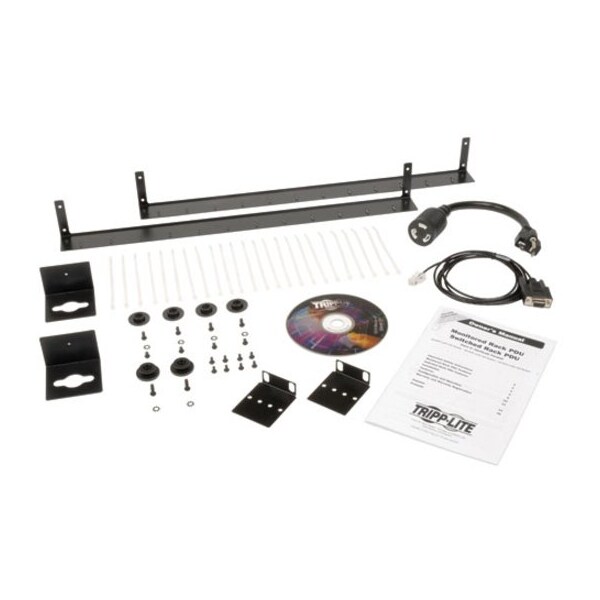

| Package Includes | Rackmount PDU;Plug retention plates;Rack mounting brackets;Additional button mounts;Configuration cable;Owner's manual;L5-20R to 5-20P adapter |
| Unit Dimensions (hwd / in.) | 70 x 2.19 x 1.75 |

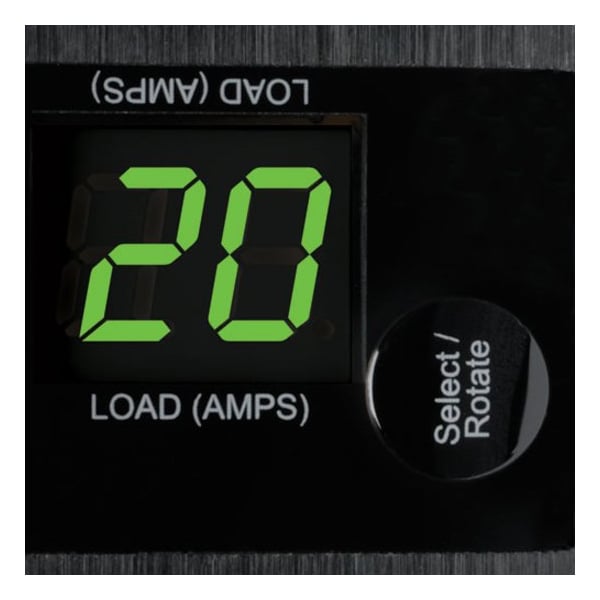

| Front Panel LCD Display | Digital meter reports PDU output current in amps, Scroll IP-address information; Display can be rotated 180 degrees for installation with the input cable at the top |
| Operating Temperature Range | 0C ~ 40C (32F ~ 104F) |
| Output Nominal Voltage | 100; 120; 127 |

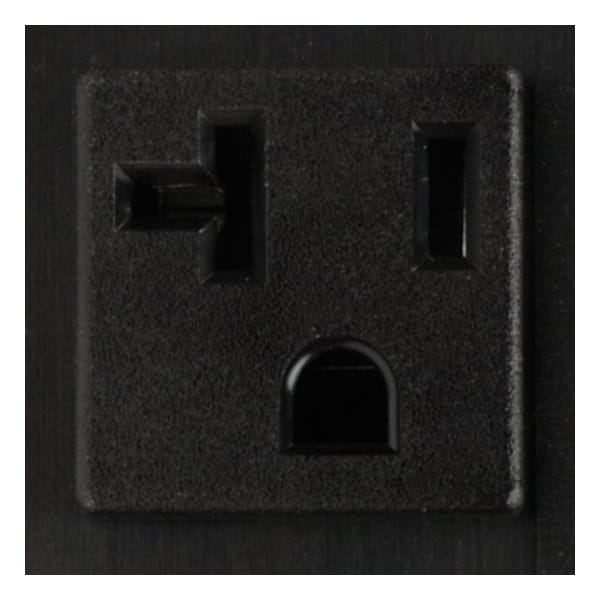

| Output Receptacles | 5-15/20R |
| PDU Plug Type | NEMA 5-20P, NEMA L5-20P |
| Maximum Input Amps | 20 |
| Material of Construction | Metal |
| Relative Humidity | 5-95% non-condensing |
| Network Compatibility | 10 Mbps; 100 Mbps (Fast Ethernet) |
| Package Quantity | 1 |
