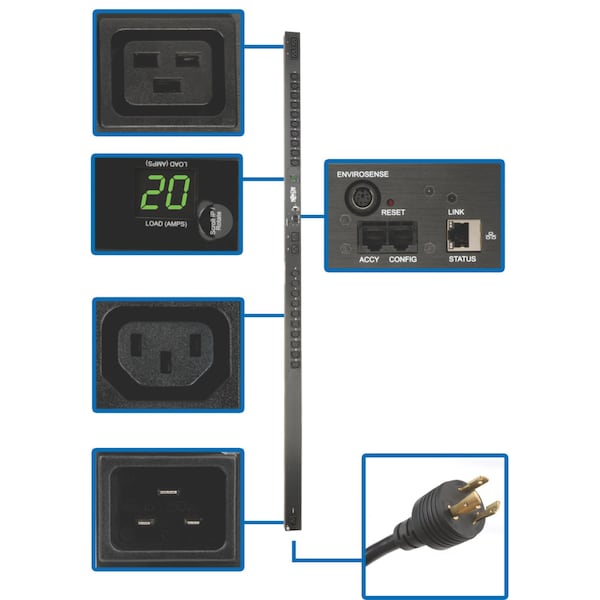

PDU, Monitored, 3.2kW-3.8kW, 20 C13, 4C19, 0U
| Item | Single-Phase Monitored PDU |
|---|---|
| Number of Outlets | 24 |
| Voltage | 208/240V |
| Cord Length | 3.05 m |
| Max. Amps | 20 |
| Mounting Style | Vertical Rackmount/0U |
| NEMA Receptacle Configuration | C13, C19 |
| NEMA Plug Configuration | NEMA L6-20P; IEC-320 C20 |
| Depth | 2.7 in |
| Width | 2.2 in |
| Height | 70 in |
| Frequency | 50/60 Hz |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC, 230 V AC, 240 V AC |
| Package Contents | PDUMNV20HV PDU Monitored 208V - 240V 20A 24 Outlet, Plug Retention Plates, Rack Mount Brackets, Owner's Manual |
| Mounting Orientation | Vertical |
| Input Voltage Range | 208 AC to 240 V AC |
| PDU Type | Monitored |
| Product Type | PDU |
| Protection Type | Overload Protection |
| Product Name | PDUMNV20HV PDU Monitored 208V - 240V 20A 24 Outlet |
| Receptacle Detail | 24 |
| Mount Type | Rack-mountable |
| Output Nominal Voltage | 200; 208; 220; 230; 240 |
| Operating Elevation (ft.) | 0-10,000 |
| Storage Temperature Range | 5 to 122 F |

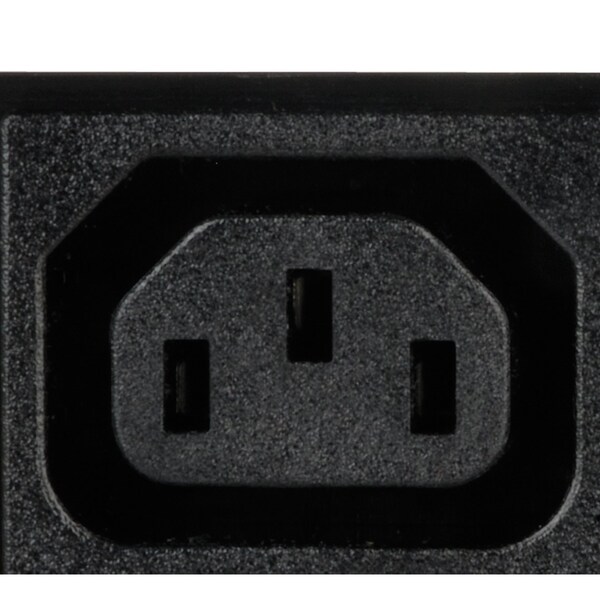

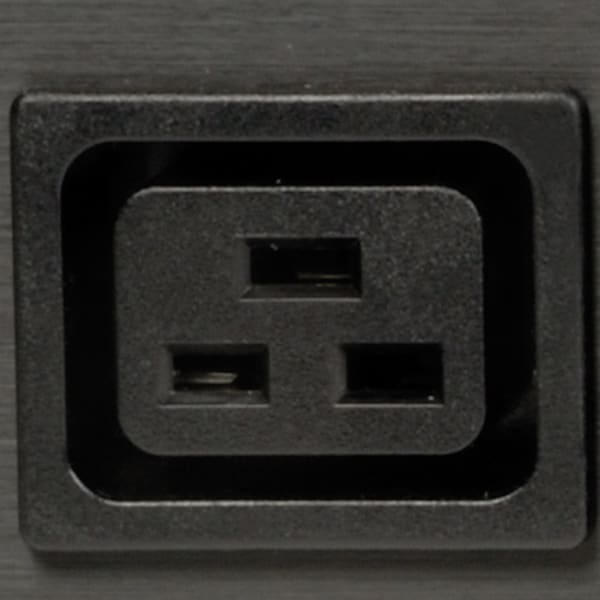

| Output Receptacles | C13, C19 |

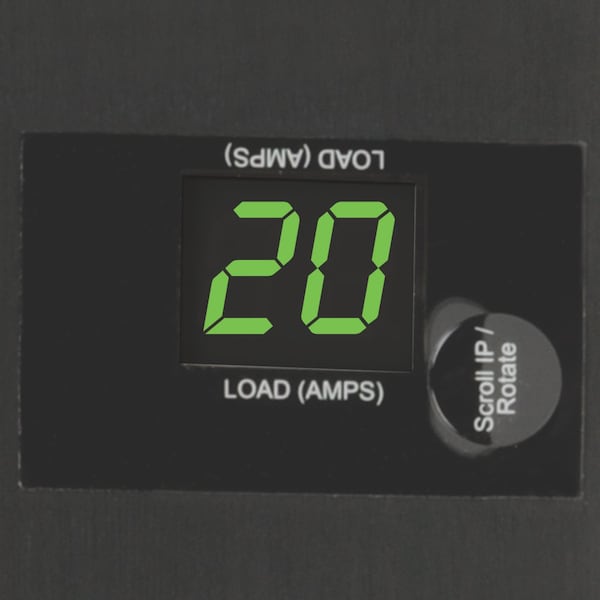

| Front Panel LCD Display | Digital meter reports PDU output current in amps, Scroll IP-address information; Display can be rotated 180 degrees for installation with the input cable at the top |
| Package Includes | Rackmount PDU;Plug retention plates;Rack mounting brackets;Owner's manual |
| Input Cord Length (ft.) | 10 |
| Frequency Compatibility | 50 / 60 Hz |
| Maximum Input Amps | 20 |
| Input Phase | Single-Phase |
| PDU Form Factor | Vertical |

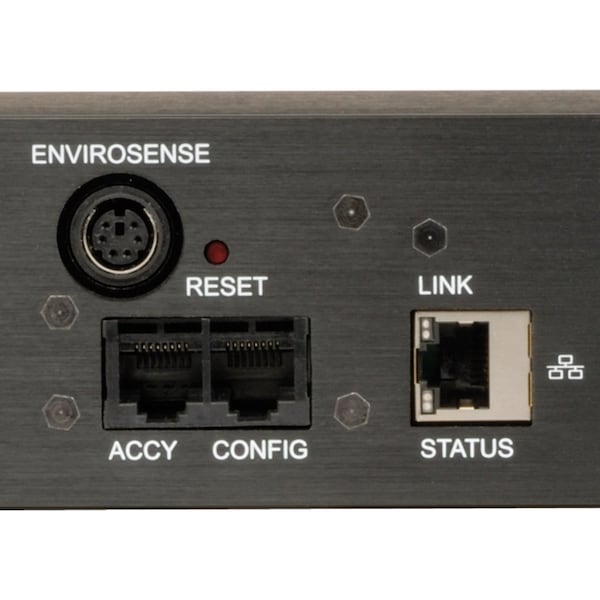

| Communications Cable | RJ45-to-DB9 configuration/console Access cable |

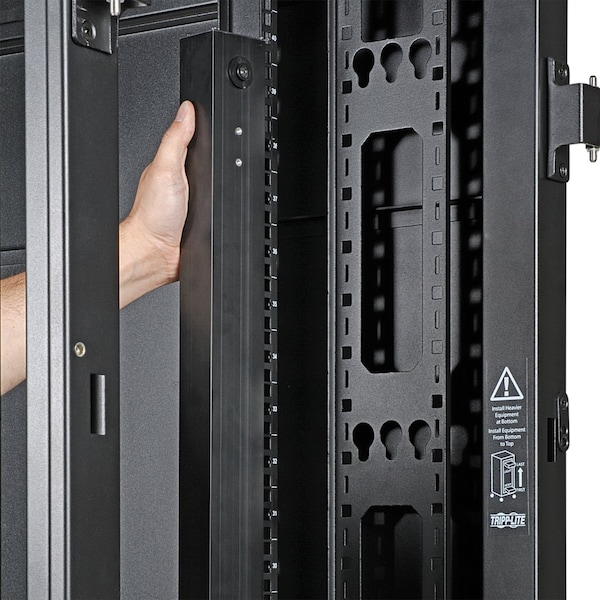

| Form Factors Supported | 0U vertical rackmount installation supported with included mounting brackets; supports tooless mounting in button-mount compatible racks |
| SNMP Compatibility | Pre-installed SNMPWEBCARD provides remote monitoring via PowerAlert Console Launcher, Telnet, SSH, and SNMP management systems |
| Switches | Press the SCROLL IP / ROTATE button and release after one second to display the configured IP address in 2 digit intervals; Press and release after two seconds to rotate the display 180 degrees |

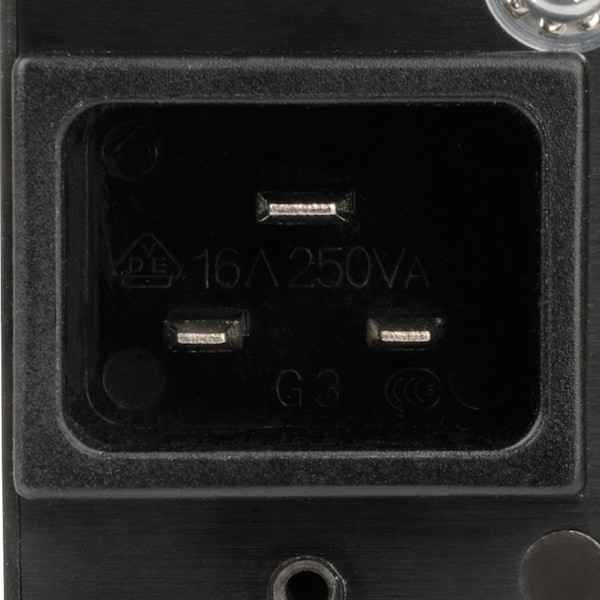

| Input Connection Type | C20 inlet accepts included L6-20P input cable. Alternate C19 input cordsets supported. |
| Operating Temperature Range | 0C ~ 40C (32F ~ 104F) |
| Relative Humidity | 5-95% non-condensing |

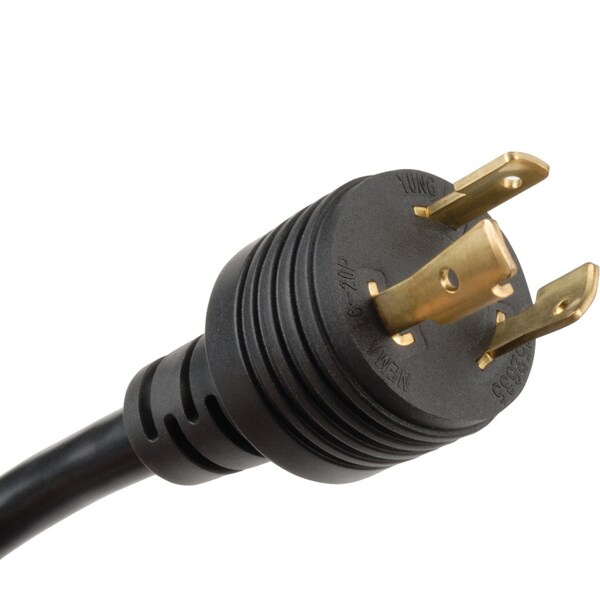

| PDU Plug Type | IEC-320 C20, NEMA L6-20P |
| Output Capacity Details | 3.84kW (240V), 3.68kW (230V), 3.52kW (220V), 3.33kW (208V), 3.2kW (200V) / 16A total capacity; 16A max per C19 outlet; 12A (10A CE) max per C13 outlet |
| Recommended Electrical Service | 20A 208/240V; 16A 230V |
| Unit Dimensions (hwd / in.) | 70 x 2.19 x 2.65 |
| Network Compatibility | 10 Mbps; 100 Mbps (Fast Ethernet) |
| Package Quantity | 1 |
