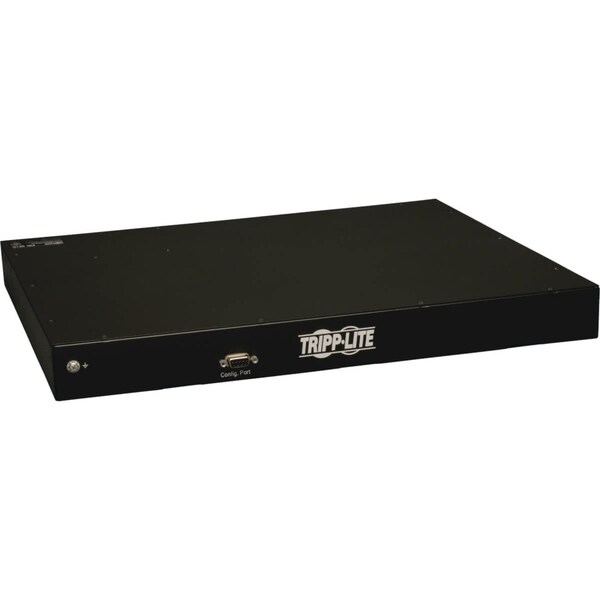

PDU, Monitored, 3.2kW-3.8kW, 8 C13, 1U
| Item | Single-Phase Monitored PDU |
|---|---|
| Type | Monitored |
| Number of Outlets | 8 |
| Cord Length | 2.59 m |
| Standards | UL 60950-1, CE (EEA), Class A, NOM, TAA Compliant |
| Hz | 50/60 Hz |
| Width | 17-1/2 in |
| NEMA Receptacle Configuration | C13 |
| Housing Material | Metal |
| Voltage | 230V |
| Depth | 14.8 in |
| Mounting Style | Horizontal Rackmount/1U |
| Height | 1.8 in |
| Phase | 1 |
| NEMA Plug Configuration | NEMA L6-20P |
| Max. Amps | 16 |
| Metered | Yes |
| Frequency | 50/60 Hz |
| Features | Digital Meter |
| Watts | 3.84kW (240V), 3.68kW (230V), 3.52kW (220V), 3.33kW (208V) |
| Mount Type | Rack-mountable, Wall-mountable |
| Mounting Orientation | Horizontal |
| Input Voltage | 230 V AC |
| Product Type | PDU |
| Plug/Connector Type | NEMA L6-20P, IEC 60320 C20 |
| Product Name | Monitored PDUMNH20HV 8-Outlets PDU |
| TAA Compliant | Yes |
| Certifications & Standards | TAA Compliant |
| Package Contents | Monitored PDUMNH20HV 8-Outlets PDU, Plug Retention Plates, Rack Mounting Brackets, Owner's Manual |
| Output Voltage | 240 V AC, 230 V AC, 208 V AC |
| Product Series | Monitored |
| Receptacle Detail | 8 x IEC 60320 C13 |
| PDU Type | Monitored |
| Rack Height | 1 U |
| Minimum Required Rack Depth (inches) | 17.1 |
| Storage Temperature Range | -22° to 122°F (-30° to 50°C) |
| Frequency Compatibility | 50 / 60 Hz |
| PDU Plug Type | IEC-320 C20, NEMA L6-20P |
| Material of Construction | Metal |
| Relative Humidity | 5% to 95% non-condensing |
| Output Capacity Details | 3.68kW (230V), 3.33kW (208V) / 16A total capacity; 12A (10A CE) max per C13 outlet |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| PDU Input Voltage | 208, 230 |
| Product Certifications | NOM (Mexico); UL 60950-1 |
| Unit Dimensions (hwd / in.) | 1.75 x 17.5 x 14.8 |
| Input Cord Length (ft.) | 8.5 |
| Operating Elevation (ft.) | 0-10,000 |
| Input Connection Type | C20 inlet accepts included C19-C20 cable with included plug adapters |

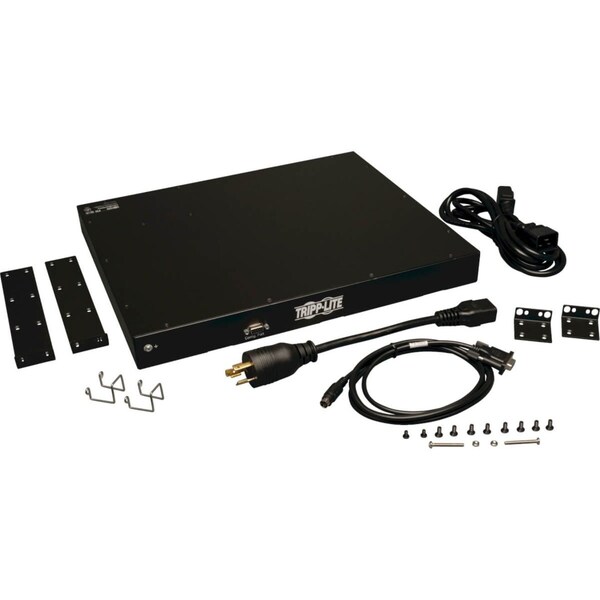

| Package Includes | Rackmount PDU;Rack mounting brackets;Plug retention inserts;2.6m C19-to-C20 power cord;C19-to-L6-20P plug adapter;Mounting hardware;Owner's manual |
| Input Phase | Single-Phase |
| Recommended Electrical Service | Single-phase 16/20A 230/208V service |
| Network Monitoring Port | RJ45 Network port, Micro-USB Configuration port, USB A port supports a variety of Envirosense2 environmental and control modules. See Accessories>Management Hardware section for more information about these modules. |
| Output Receptacles | C13 |
| Communications Cable | Micro-USB- to-USB A configuration/console Access cable |
| Front Panel LCD Display | Digital meter reports PDU output current in amps |
| Network Compatibility | 10 Mbps; 100 Mbps (Fast Ethernet) |
| High Availability PDU Features | Remote Network Notifications |
| PDU Form Factor | Horizontal |
| Form Factors Supported | 1U horizontal rackmount in 2 or 4 post racks |
| Maximum Input Amps | 16 |
| Output Nominal Voltage | 208/230V |
| Product Compliance | CE (Europe); FCC Part 15 Class A (USA); Trade Agreements Act (TAA) |
| SNMP Compatibility | Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems |
| Package Quantity | 1 |
