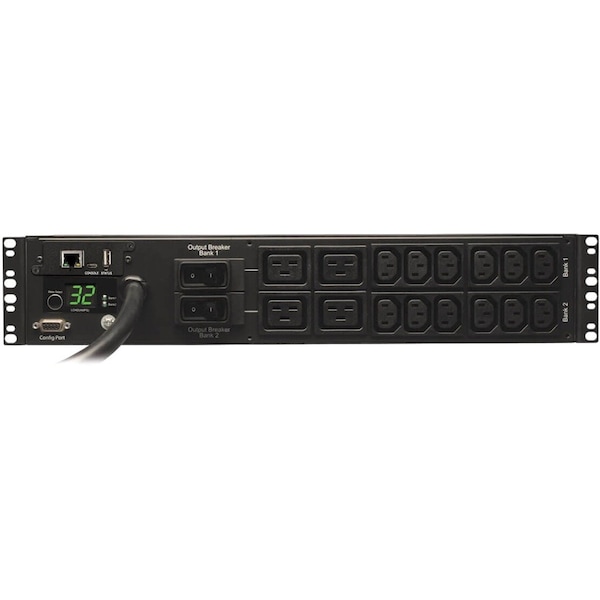

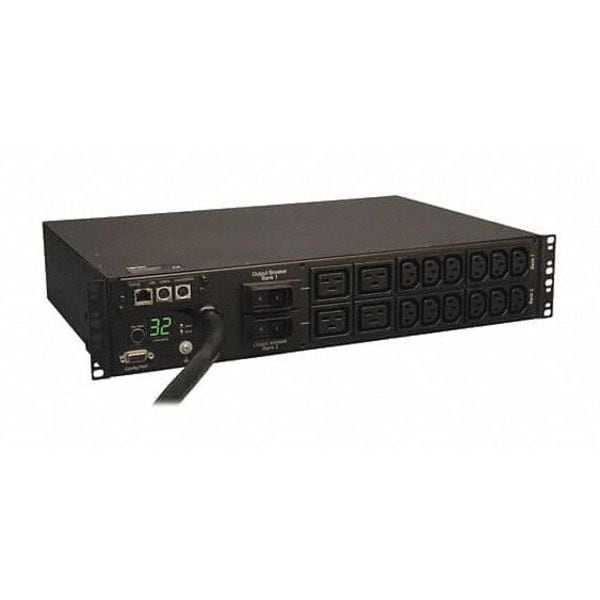

PDU, Monitored, 7.4kW, 12 C13, 4 C19, 2U
| Item | Single-Phase Monitored PDU with LX Platform Interface |
|---|---|
| Type | Monitored |
| Number of Outlets | 16 |
| Cord Length | 3.66 m |
| Standards | CE/IEC 60950-1, EN Class A, TAA Compliant |
| Depth | 12-1/2 in |
| NEMA Receptacle Configuration | C13, C19 |
| Metered | Yes |

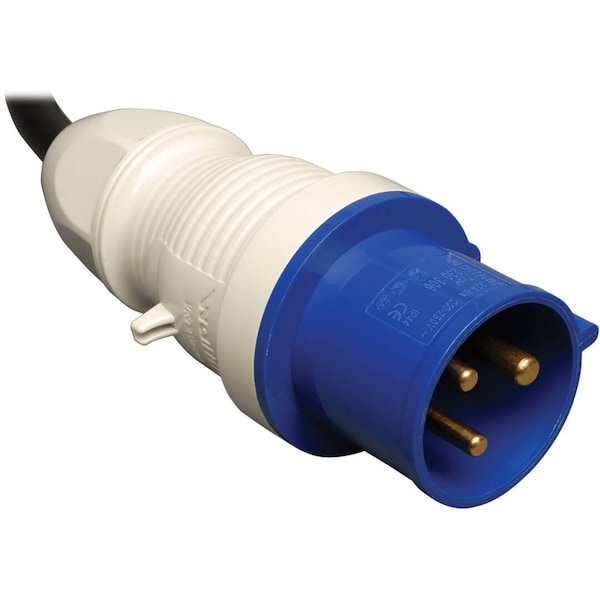

| NEMA Plug Configuration | IEC-309 32A BLUE (2P+E) |
| Voltage | 230V |
| Hz | 50/60 Hz |
| Width | 17-1/2 in |
| Mounting Style | Horizontal Rackmount/2U |
| Circuit Breaker | Yes |
| Height | 3-1/2 in |
| Phase | 1 |
| Max. Amps | 32 |
| Housing Material | Metal |
| Frequency | 50/60 Hz |
| Features | Front panel LEDs, Digital LCD Current Display |
| Watts | 7.4kW (230V) |
| Product Series | Metered |
| Receptacle Detail | 12 x IEC 60320 C13, 4 x IEC 60320 C19 |
| Output Voltage | 230 V AC |
| Mounting Orientation | Horizontal |
| Input Voltage | 230 V AC |
| Product Name | Metered PDUMNH32HV 16-Outlets 7.4kW PDU |
| Mount Type | Rack-mountable |
| Power Rating (Watt) | 7,400 W |
| TAA Compliant | Yes |
| Protection Type | Overload Protection |
| Additional Information | Plug Type: IEC-309 32A (2P+E) |
| Product Type | PDU |

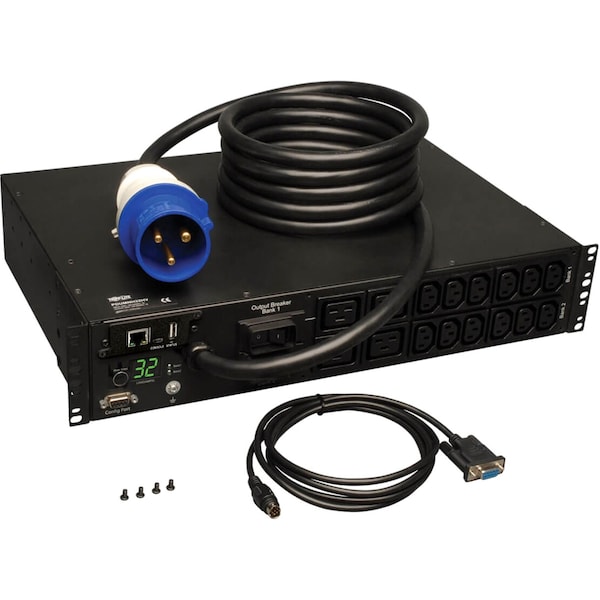

| Package Contents | Metered PDUMNH32HV 16-Outlets 7.4kW PDU, Rack Installation Brackets, Cable Retention Brackets, SNMPWEBCARD Configuration Cable, PowerAlert Software Kit, User Manual |
| Rack Height | 2 U |
| Recommended Electrical Service | Single-phase 32A 230V service |
| Input Cord Length (ft.) | 12 |
| Package Includes | Monitored PDU with built-in LX platform interface;Rack installation brackets;Plug-lock cable retention sleeves;Configuration cable;User manual |
| Maximum Input Amps | 32 |
| Network Monitoring Port | RJ45 Network port, Micro-USB Configuration port, USB A port supports a variety of Envirosense2 environmental and control modules. See Accessories>Management Hardware section for more information about these modules. |
| Front Panel LCD Display | Front panel LEDs indicate which loading segment the digital LCD current display is reporting; Bank 1 LED indicates the meter is reporting load level for outlets 1-8; Bank 2 LED indicates the meter is reporting load level for outlets 9-16; Both LEDs lighted indicates the meter is reporting load level for all outlets combined |
| PDU Type | Monitored |
| Minimum Required Rack Depth (inches) | 16 |
| Input Phase | Single-Phase |
| Communications Cable | Micro-USB- to-USB A configuration/console Access cable |
| Product Certifications | EN 60950-1 |
| Output Nominal Voltage | 230V |
| PDU Input Voltage | 230 |
| Network Compatibility | 10 Mbps; 100 Mbps (Fast Ethernet) |
| Overload Protection | Two 20A circuit breakers protect 8 outlets each |
| Output Capacity Details | 7.4kW (230V) / 32A total capacity / 16A max per breakered outlet bank; 16A max per C19 outlet; 10A max per C13 outlet |
| Operating Elevation (ft.) | 0-10,000 |
| Relative Humidity | 5% to 95% non-condensing |
| Form Factors Supported | 2U rackmount |
| Product Compliance | CE (Europe); FCC Part 15 Class A (USA); Trade Agreements Act (TAA) |
| Material of Construction | Metal |
| Switches | Pressing the display toggle switch advances the local display of power consumption for the 3 reported segments: Bank 1, Bank 2 and Banks 1+2 combined |
| Frequency Compatibility | 50 / 60 Hz |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Storage Temperature Range | -22° to 122°F (-30° to 50°C) |
| SNMP Compatibility | Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems |
| Front Panel LEDs | Two LEDs with toggle button identify which bank the visual current meter is reporting (Bank 1, Bank 2 or Banks 1 & 2 combined) |
| PDU Plug Type | IEC-309 32A BLUE |
| Output Receptacles | C13, C19 |
| PDU Form Factor | Horizontal |
| High Availability PDU Features | Remote Network Notifications |
| Unit Dimensions (hwd / in.) | 3.5 x 17.5 x 12.5 |
| Package Quantity | 1 |
