PDU, Switched, 1.4kW, 120V, 16 5-15R, 0U
| Item | Single-Phase Switched PDU |
|---|---|
| Number of Outlets | 16 |
| Cord Length | 3.05 m |
| NEMA Plug Configuration | NEMA 5-15P |
| Width | 2.2 in |
| NEMA Receptacle Configuration | NEMA 5-15R |
| Mounting Style | Vertical Rackmount/0U |
| Depth | 4.3 in |
| Max. Amps | 15 |
| Height | 49 in |
| Voltage | 120V |
| Frequency | 50/60 Hz |
| Product Name | PDUMV15NET PDU Switched 120V 15A 16 Outlet |

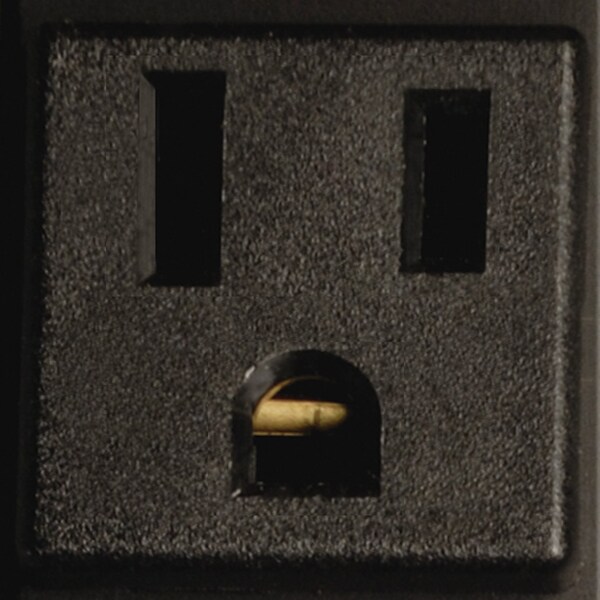

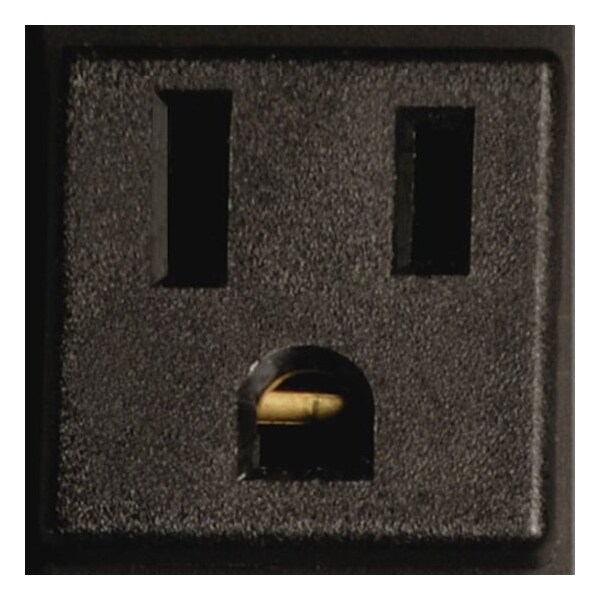

| Receptacle Detail | 16 x NEMA 5-15R |
| PDU Type | Switched |
| Network (RJ-45) | Yes |
| Mount Type | Rack-mountable |
| Output Voltage | 120 V AC |
| Plug/Connector Type | NEMA 5-15P |
| Input Voltage | 120 V AC |
| Mounting Orientation | Vertical |
| Product Type | PDU |
| Package Contents | PDUMV15NET PDU Switched 120V 15A 16 Outlet, Rackmount PDU, Rack mounting brackets, Owner's manual |
| Input Phase | Single-Phase |
| Form Factors Supported | 0U vertical rackmount. Includes mounting brackets. Supports toolless mounting in button-mount compatible racks |

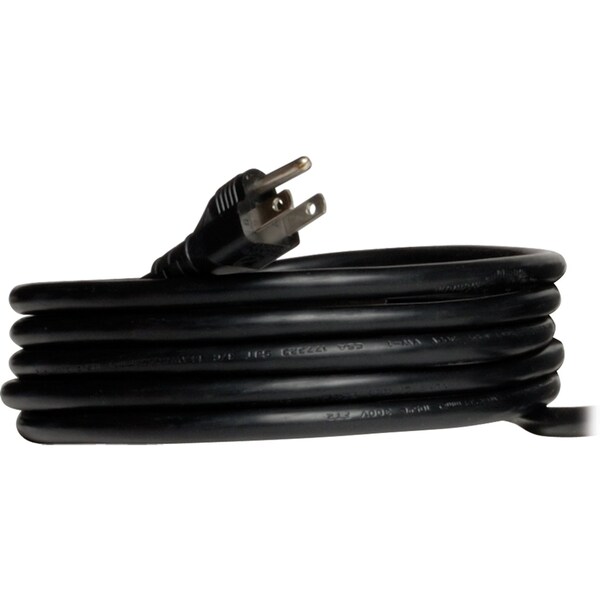

| Input Cord Length (ft.) | 10 |
| PDU Plug Type | NEMA 5-15P |
| Operating Elevation (ft.) | 0-10,000 |
| Switches | Pushbutton control supports 180 degree Display Rotation and Scroll IP address functions |
| Storage Temperature Range | 5 to 122 F |

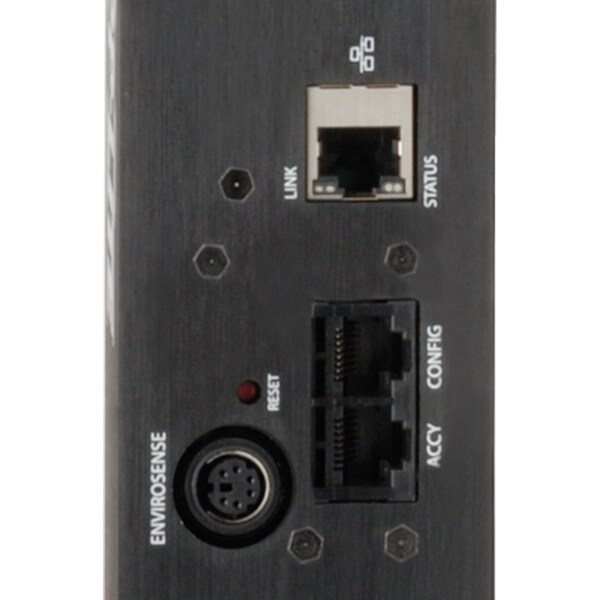

| SNMP Compatibility | Yes, pre-installed SNMPWEBCARD provides remote monitoring via web, telnet, and SNMP management systems. Remote management gives user ability to turn connected loads on or off individually |
| Output Capacity Details | 1.52kW (127V), 1.44kW (120V), 1.2kW (100V) / 15A total capacity (Agency de-rated to 12A); 12A max per outlet |
| Output Receptacles | 5-15R |
| Recommended Electrical Service | 15A 120V |
| Front Panel LEDs | 16 LEDs display power on-off status for each output receptacle |

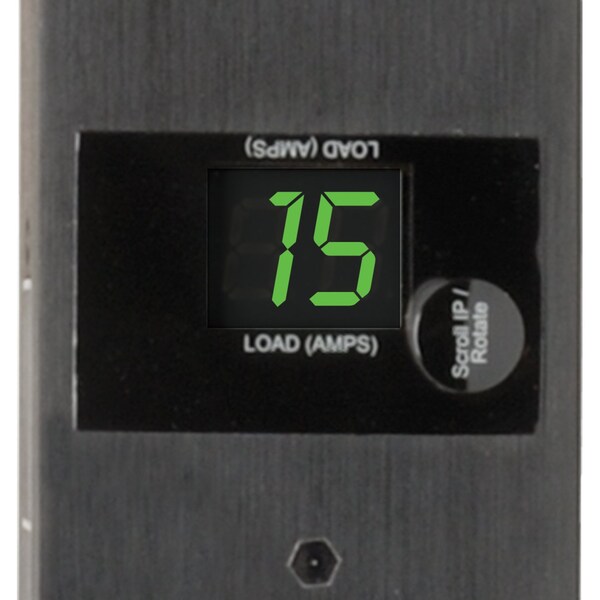

| Front Panel LCD Display | Digital display reports total PDU output current in amps |
| Unit Dimensions (hwd / in.) | 49 x 2.19 x 2.65 |
| Relative Humidity | 5-95% non-condensing |

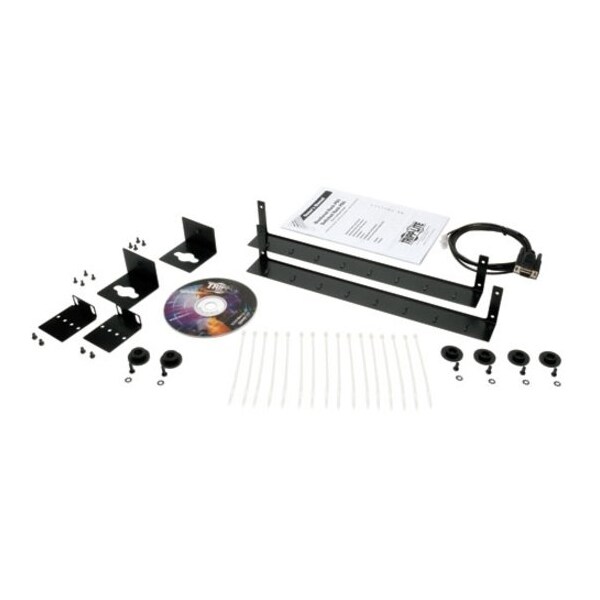

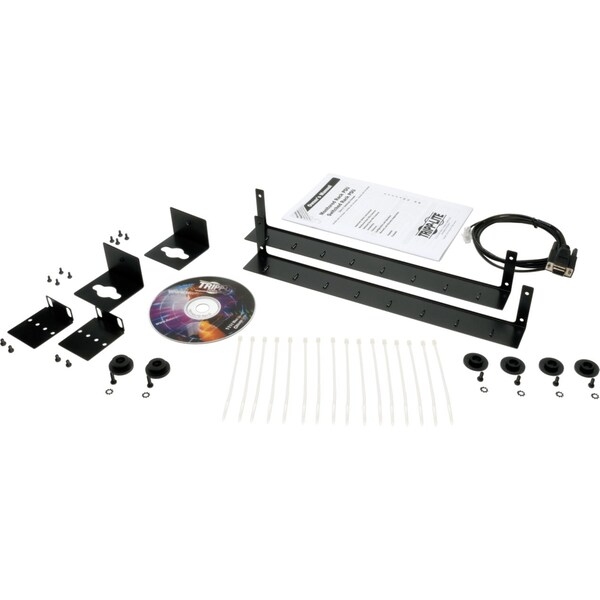

| Package Includes | Rackmount PDU;Rack mounting brackets;PDUMVROTATEBRKT;Owner's manual |
| Network Compatibility | 10 Mbps; 100 Mbps (Fast Ethernet) |
| Customized Load Management Receptacles | 16 individually switched output receptacles |
| Frequency Compatibility | 50 / 60 Hz |
| Communications Cable | RJ45-to-DB9 configuration/console Access cable |
| Maximum Input Amps | 15 |
| PDU Form Factor | Vertical |
| Output Nominal Voltage | 100; 120; 127 |
| Package Quantity | 1 |
