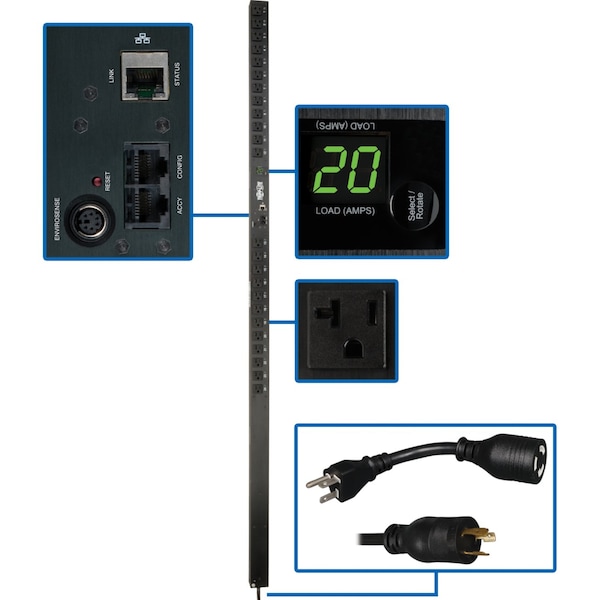

PDU, Switched, 1.9kW, 120V, 24 5-15/20R, 0U
| Item | Single-Phase Switched PDU |
|---|---|
| Number of Outlets | 24 |
| Cord Length | 3.05 m |
| Height | 70 in |
| Max. Amps | 20 |
| Mounting Style | Vertical Rackmount/0U |
| Depth | 2.7 in |
| Width | 2.2 in |
| Voltage | 120VAC |
| NEMA Plug Configuration | NEMA 5-20P; NEMA L5-20P |

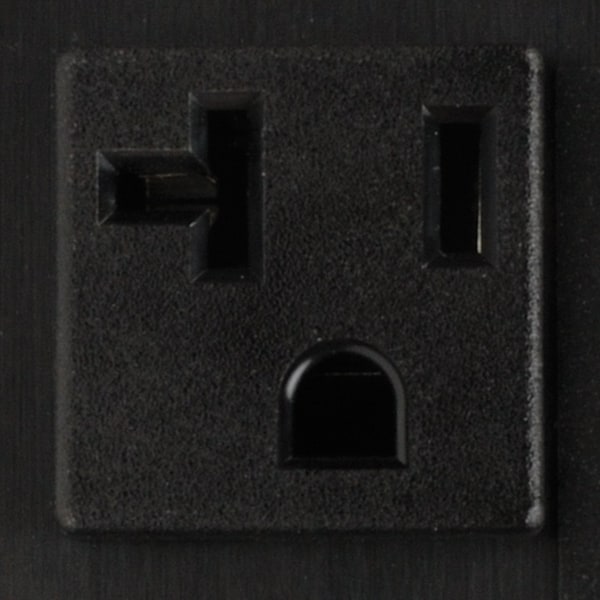

| NEMA Receptacle Configuration | NEMA 5-15/20R |
| Frequency | 50/60 Hz |

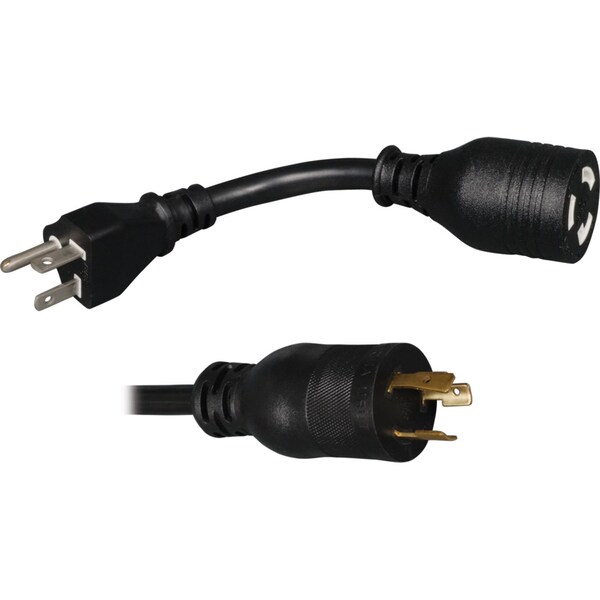

| Package Contents | PDUMV20NET PDU Switched 120V 20A 24 Outlet, Rackmount PDU, L5-20R to 5-15/20P adapter, Rackmount brackets |
| Product Name | PDUMV20NET PDU Switched 120V 20A 24 Outlet |
| Mounting Orientation | Vertical |
| Plug/Connector Type | NEMA L5-20P |
| Output Voltage | 120 V AC |
| Input Voltage | 120 V AC |
| Product Type | PDU |
| Mount Type | Rack-mountable |
| Receptacle Detail | 24 x NEMA 5-15/20R |
| Network (RJ-45) | Yes |
| PDU Type | Switched |
| Frequency Compatibility | 50 / 60 Hz |

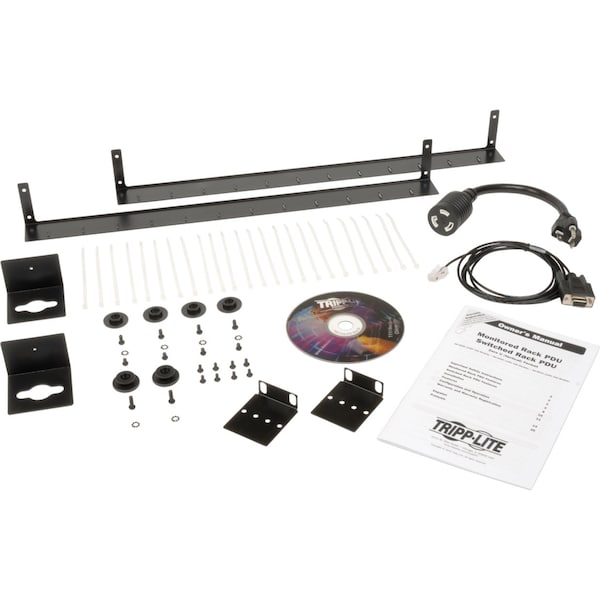

| Package Includes | Rackmount PDU;L5-20R to 5-15/20P adapter;Rackmount brackets;PDUMVROTATEBRKT |
| Communications Cable | RJ45-to-DB9 configuration/console Access cable |
| Recommended Electrical Service | 20A 120V |
| Output Nominal Voltage | 100; 120; 127 |
| Input Phase | Single-Phase |
| Output Receptacles | 5-15/20R |
| Maximum Input Amps | 20 |
| Relative Humidity | 0-95% non-condensing |

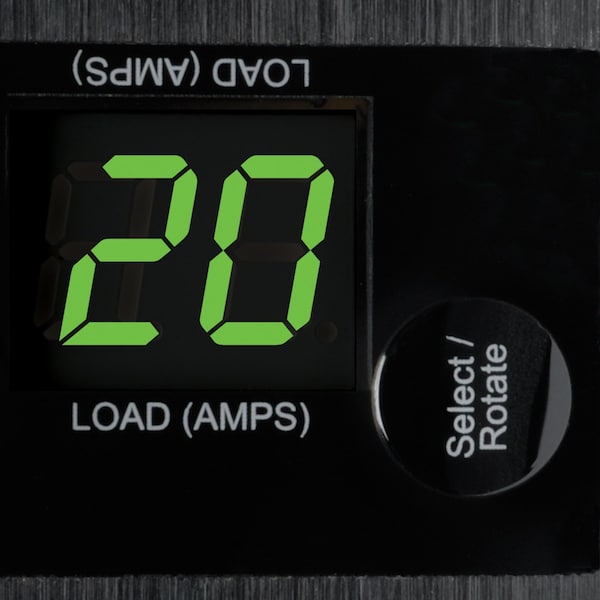

| Front Panel LCD Display | Digital meter reports PDU output current in amps |
| SNMP Compatibility | Pre-installed SNMPWEBCARD provides remote monitoring via PowerAlert Console Launcher, Telnet, SSH, and SNMP management systems. Remote management enables outlets to be turned on and off individually |

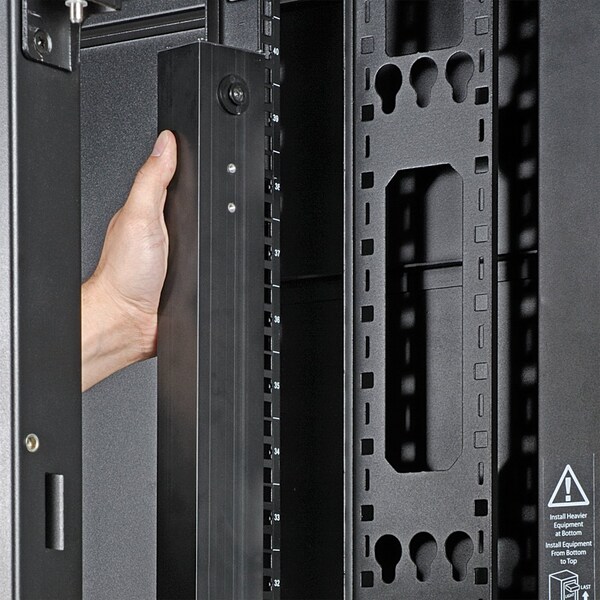

| Form Factors Supported | 0U vertical rackmount; includes rackmount brackets. Supports toolless mounting in button-mount compatible racks |
| Output Capacity Details | 2.03kW (127V), 1.92kW (120V), 1.6kW (100V) / 20A total capacity (Agency de-rated to 16A); 16A max per outlet |
| Operating Elevation (ft.) | 0-10,000 |
| Input Cord Length (ft.) | 10 |
| Front Panel LEDs | 24 power availability LEDs confirm power off/on status for each built-in outlet |
| PDU Plug Type | NEMA 5-20P, NEMA L5-20P |
| Network Compatibility | 10 Mbps; 100 Mbps (Fast Ethernet) |
| Unit Dimensions (hwd / in.) | 70 x 2.19 x 2.65 |
| Customized Load Management Receptacles | Each outlet is individually controllable via remote interface |
| PDU Form Factor | Vertical |
| Switches | Recessed reset switch for interface reboot and factory reset |
| Package Quantity | 1 |
