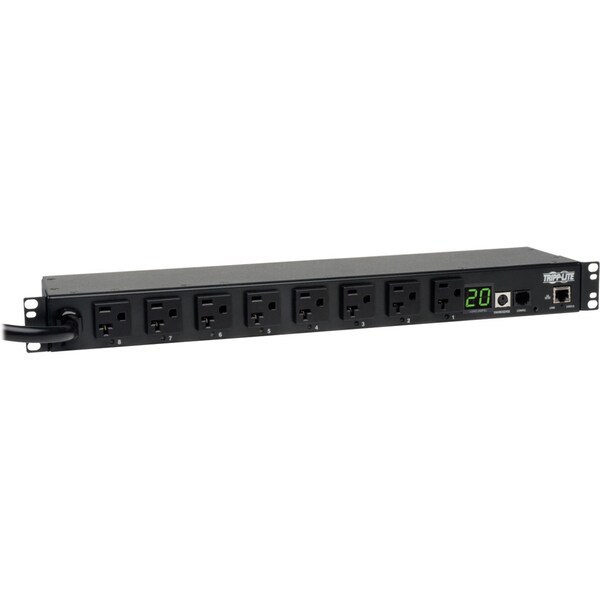

PDU, Switched, 1.9kW, 120V, 8 5-15/20R, 1U
| Item | Single-Phase Switched PDU |
|---|---|
| Number of Outlets | 8 |
| Cord Length | 3.66 m |
| Standards | TAA Compliant |
| Width | 17-1/2 in |
| Receptacle Type | NEMA 5-15/20R |
| Depth | 4.3 in |
| Voltage | 120V |
| Power Indicator | Yes |
| Housing Material | Metal |
| Includes | Switched PDUMH20NET2 8-Outlets PDU1U Mounting BracketsPowerAlert Software CDCord Retention BracketsConfiguration CableUser Manual |
| Green Environmental Attribute | Yes |
| NEMA Receptacle Configuration | NEMA 5-15/20R |
| NEMA Plug Configuration | NEMA 5-20P; NEMA L5-20P |
| Max. Amps | 20 |
| Mounting Style | Horizontal Rackmount/1U |
| Height | 1.8 in |
| Frequency | 50/60 Hz |
| Mouting Style | Rack-mountable |
| Green Certification or Other Recognition | RoHS |
| Input Voltage | 120 V AC |
| Plug/Connector Type | NEMA L5-20P, NEMA 5-20P |
| Product Name | Switched PDUMH20NET2 8-Outlets PDU |
| PDU Type | Switched |
| Rack Height | 1 U |
| Mounting Orientation | Horizontal |
| Output Voltage | 120 V AC |
| Receptacle Detail | 8 x NEMA 5-15/20R |

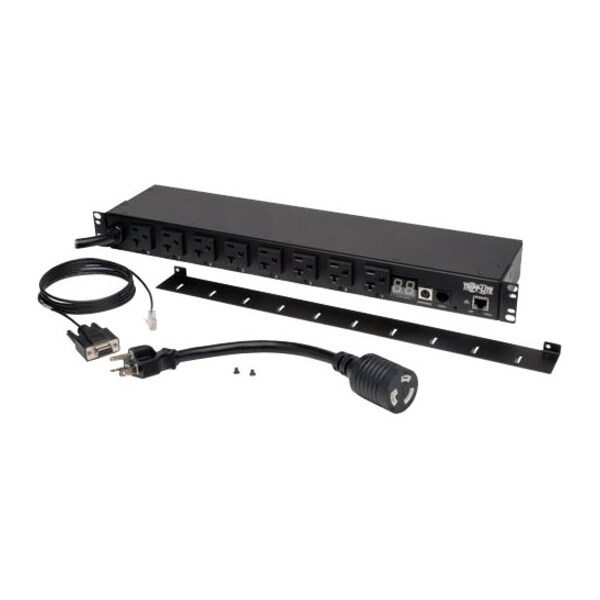

| Package Contents | Switched PDUMH20NET2 8-Outlets PDU, 1U Mounting Brackets, PowerAlert Software CD, Cord Retention Brackets, Configuration Cable, User Manual |
| Input Voltage Range | 100 AC to 127 V AC |
| Product Type | PDU |
| Mount Type | Rack-mountable |
| Certifications & Standards | TAA Compliant |
| TAA Compliant | Yes |
| Product Series | Switched |
| Input Phase | Single-Phase |
| Material of Construction | Metal |

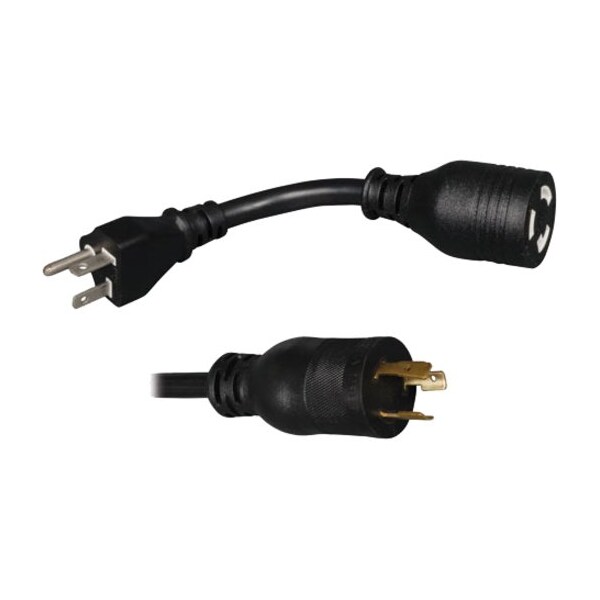

| Package Includes | PDU with attached L5-20P input power cord and 5-20P plug adapter;Rackmount installation brackets and wire retention plates;Configuration cable;User manual |
| Storage Temperature Range | 5 to 122 F |
| Operating Elevation (ft.) | 0-10,000 |
| Input Cord Length (ft.) | 12 |
| Network Monitoring Port | RJ45 Network port, Micro-USB Configuration port, USB A port supports a variety of Envirosense2 environmental and control modules. See Accessories>Management Hardware section for more information about these modules. |
| Output Receptacles | 5-15/20R |
| Frequency Compatibility | 50 / 60 Hz |
| Network Compatibility | 10 Mbps; 100 Mbps (Fast Ethernet) |
| Communications Cable | RJ45-to-DB9 configuration/console Access cable |
| Form Factors Supported | 1U rackmount |
| Maximum Input Amps | 20 |
| Output Capacity Details | 2.03kW (127V), 1.92kW (120V), 1.6kW (100V) / 20A total capacity (Agency de-rated to 16A); 16A max per outlet |
| Recommended Electrical Service | 20A 120V |
| Relative Humidity | 5 to 95% (non condensing) |
| PDU Plug Type | NEMA 5-20P, NEMA L5-20P |
| Customized Load Management Receptacles | 8 individually switched output receptacles |
| SNMP Compatibility | Yes, pre-installed SNMPWEBCARD provides remote monitoring via PowerAlert Console Launcher, Telnet, SSH, and SNMP management systems. Remote management gives user ability to turn connected loads on or off individually |
| Minimum Required Rack Depth (inches) | 9.3 |
| Front Panel LCD Display | Digital display reports total PDU output current in amps |
| Output Nominal Voltage | 100; 120; 127 |
| PDU Form Factor | Horizontal |
| Front Panel LEDs | 8 LEDs display power on-off status for each output receptacle |
| Unit Dimensions (hwd / in.) | 1.75 x 17.5 x 4.25 |
| Grounding | Rear panel grounding lug |
| Package Quantity | 1 |
