PDU, Switched, 2.3/2.9kW, 200/240V, 8 C13, 1U
| Item | Single-Phase Switched PDU with LX Platform Network Interface |
|---|---|
| Type | Switched |
| Number of Outlets | 8 |
| Cord Length | 6 ft 6 in |
| Standards | UL/CAN 60950-1, FCC / EN Class A, NOM, CE (IEC 60950), TAA Compliant |
| Max. Amps | 15 |
| Mounting Style | Horizontal Rackmount/1U |
| Height | 1.8 in |
| Hz | 50/60 Hz |
| Depth | 14.8 in |
| Housing Material | Metal |
| Includes | Mounting Accessories |
| Phase | 1 |
| Voltage | 200/240V |
| Metered | Yes |
| Width | 17.3 in |
| NEMA Plug Configuration | IEC-320 C14 |
| NEMA Receptacle Configuration | C13 |
| Frequency | 50/60 Hz |
| Features | Digital Display |
| Watts | 2.5kW (208V), 2.3kW (230V) |
| Product Name | PDUMH15HVNET PDU Switched 208V - 240V 15A 8 Outlet |
| Package Contents | PDUMH15HVNET PDU Switched 208V - 240V 15A 8 Outlet, Rackmount PDU, Rack mounting brackets |
| Input Voltage Range | 208 AC to 240 V AC |
| Output Voltage | 240 V AC, 208 V AC |
| Rack Height | 1 U |
| PDU Type | Switched |
| Product Type | PDU |
| Mount Type | Rack-mountable |
| Network (RJ-45) | Yes |
| Input Voltage | 230 V AC |
| Receptacle Detail | 8 x IEC 60320 C13 |
| Plug/Connector Detail | 1 x IEC 60320 C14 |
| TAA Compliant | Yes |
| Protection Type | Overload Protection |
| PDU Form Factor | Horizontal |
| Output Nominal Voltage | 208/230V |
| PDU Input Voltage | 208, 230 |
| Input Cord Length (ft.) | 6.5 |
| Relative Humidity | 5% to 95% non-condensing |
| Storage Temperature Range | -22° to 122°F (-30° to 50°C) |
| Network Monitoring Port | RJ45 Network port, Micro-USB Configuration port, USB A port supports a variety of Envirosense2 environmental and control modules. See Accessories>Management Hardware section for more information about these modules. |
| Network Compatibility | 10 Mbps; 100 Mbps (Fast Ethernet) |
| Communications Cable | Micro-USB- to-USB A configuration/console Access cable |
| Input Phase | Single-Phase |
| Output Receptacles | C13 |
| Material of Construction | Metal |
| Input Connection Type | C14 inlet |
| PDU Plug Type | IEC-320 C14 |
| Grounding | Back panel grounding lug |
| Unit Dimensions (hwd / in.) | 1.72 x 14.77 x 17.33 |
| Front Panel LEDs | 8 LEDs display power on-off status for each output receptacle |
| Product Compliance | CE (Europe); FCC Part 15 Class A (USA); Trade Agreements Act (TAA) |
| Product Certifications | CAN/CSA-C22.2 No. 60950-1 (Canada); NOM (Mexico); UL 60950-1 |

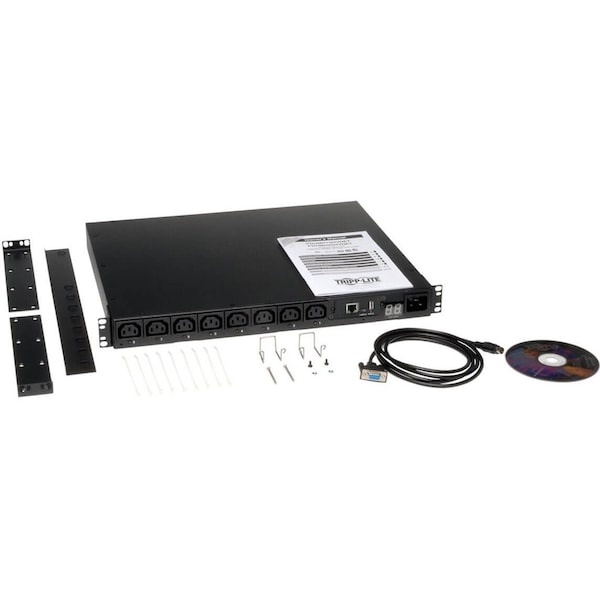

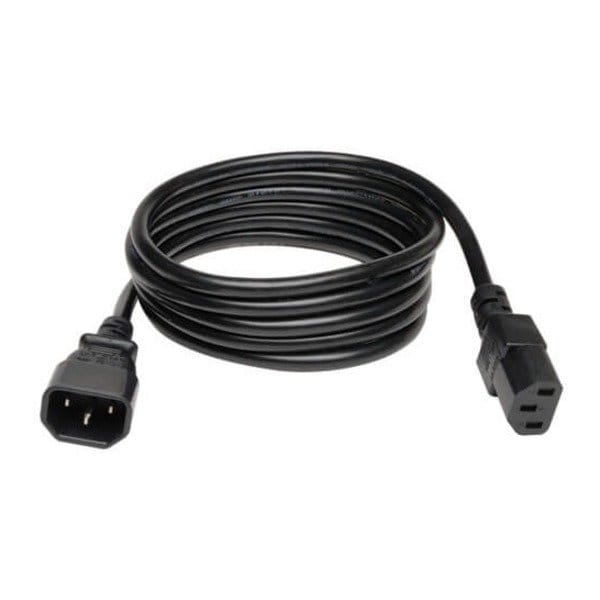

| Package Includes | 1U Switched PDU;Mounting brackets;Cord retention plates;C13 to C14 power cable |
| SNMP Compatibility | Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems |
| Output Capacity Details | 2.5kW (208V), 2.3kW (230V) / 12A (10A CE) total capacity |
| Recommended Electrical Service | Single-phase 12/10A 208/230V service |
| Front Panel LCD Display | Digital display reports total PDU output current in amps |
| Customized Load Management Receptacles | 8 individually switched output receptacles |
| High Availability PDU Features | Auto Probe Monitoring and Reboot (included); Auto Load Shedding |
| Minimum Required Rack Depth (inches) | 17.1 |
| Form Factors Supported | 1U rackmount, Includes mounting accessories for 2-4 post racks |
| Frequency Compatibility | 50 / 60 Hz |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Maximum Input Amps | 12 |
| Operating Elevation (ft.) | 0-10,000 |
| Package Quantity | 1 |
