PDU, Switched, 2.9kW, 24 5-15/20R, L5-30P, 0U
| Item | Single-Phase Switched PDU with Outlet Level Metering |
|---|---|
| Number of Outlets | 24 |
| Voltage | 120V |
| Cord Length | 10 ft |
| Max. Amps | 30 |
| Mounting Style | Vertical Rackmount/0U |
| NEMA Receptacle Configuration | NEMA 5-15/20R |
| NEMA Plug Configuration | NEMA L5-30P |
| Frequency | 50/60 Hz |
| Plug/Connector Type | NEMA L5-30P |
| Product Type | PDU |
| Input Voltage | 120 V AC |
| Package Contents | Rackmount PDU, Rackmount Brackets |
| Input Voltage Range | 100 AC to 127 V AC |
| Product Series | Switched |
| Mount Type | Rack-mountable |
| Mounting Orientation | Vertical |
| Output Voltage | 120 V AC |
| Product Name | Rackmount PDU |
| Receptacle Detail | 24 x NEMA 5-15/20R |
| Output Receptacles | 5-15/20R |
| Customized Load Management Receptacles | Each outlet is individually controllable via remote interface |
| PDU Form Factor | Vertical |
| Input Phase | Single-Phase |

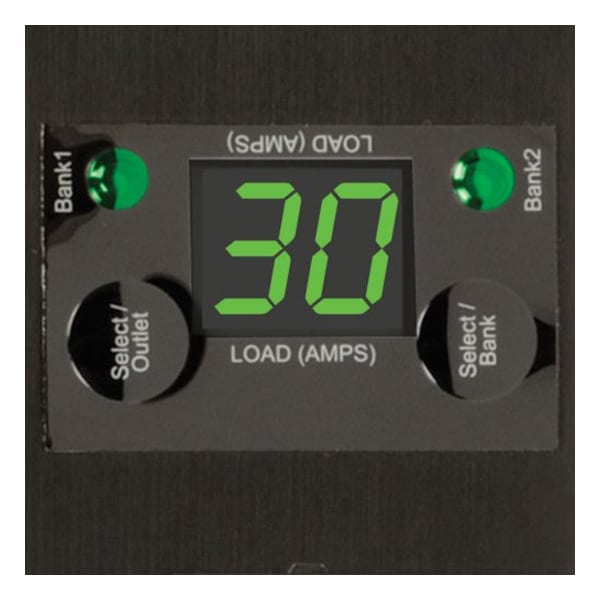

| Front Panel LCD Display | Digital display reports load level in amps for LOAD BANK 1 (Outlets 1-12), LOAD BANK 2 (Outlets 13-24), LOAD BANKS 1&2 COMBINED (Outlets 1-24) and each individual output receptacle; Digital display can also be used to scroll the configured IP address |
| Maximum Input Amps | 30 |
| Switches | SELECT OUTLET and SELECT BANK switches advance the LCD screen and associated LED to display power consumption for individual output receptacles and output load banks; Press and hold the SELECT BANK button for 4 seconds to rotate the digital display 90 degrees for overhead power input; Press and hold the SELECT OUTLET button for 4 seconds to scroll the configured IP address |
| Relative Humidity | 5 to 95% (non condensing) |
| Recommended Electrical Service | 30A 120V |
| Output Nominal Voltage | 100-127V nominal, single phase |
| Input Cord Length (ft.) | 10 |
| Frequency Compatibility | 50 / 60 Hz |
| Operating Elevation (ft.) | 0-10,000 |

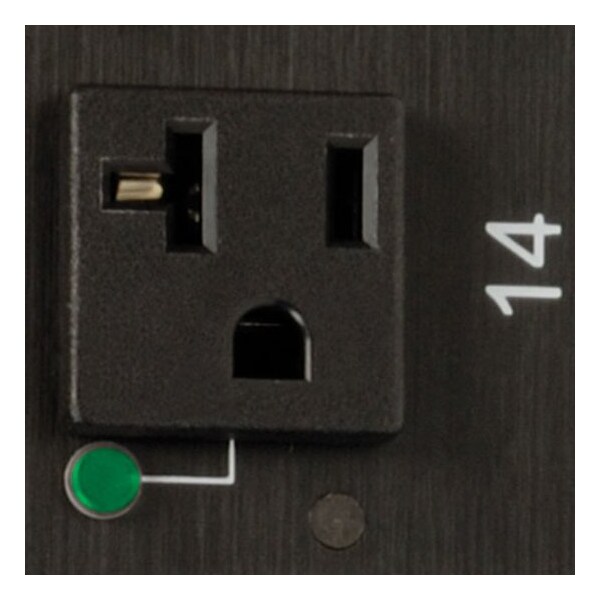

| Front Panel LEDs | BANK 1 and BANK 2 LEDs verify which load bank the digital current display is reporting (Bank 1, Bank 2 or Banks 1&2 Combined); BANK 1 or BANK 2 LED will flash when the digital display is reporting output current for one of the outlets in that load bank; 24 additional LEDs, one near each output receptacle, will light continuously to verify power on/off status and flash to indicate that the digital display is reporting output current for just that individual receptacle |
| PDU Type | Switched |
| Communications Cable | RJ45-to-DB9 configuration/console Access cable |
| Network Compatibility | 10 Mbps; 100 Mbps (Fast Ethernet) |
| Output Capacity Details | 3.05kW (127V), 2.88kW (120V), 2.4kW (100V) / 30A total capacity (Agency de-rated 24A); 20A max per breakered load bank; 16A max per outlet |

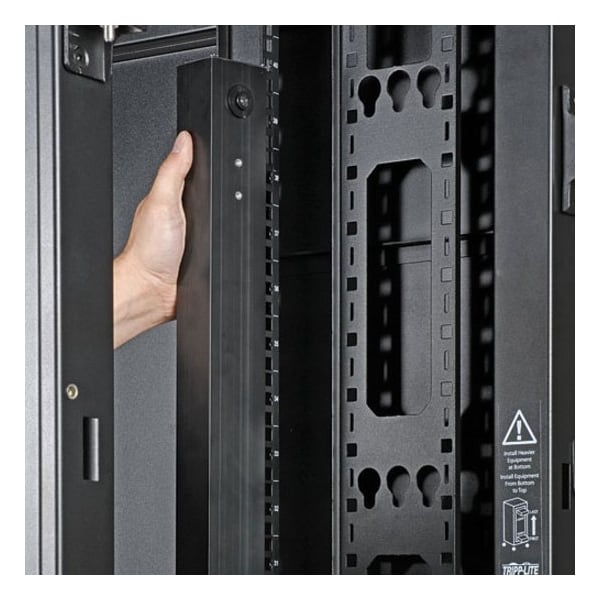

| Form Factors Supported | 0U vertical rackmount; includes rackmount brackets. Supports toolless mounting in button-mount compatible racks |

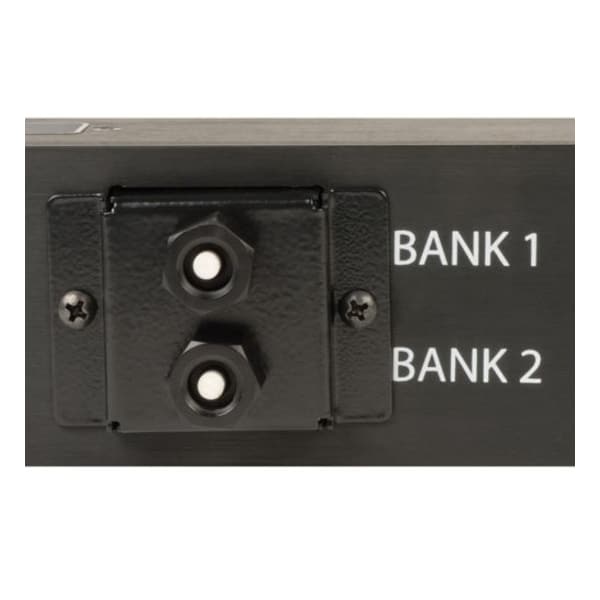

| Overload Protection | Two 20A breakers protect 12 outlets each |

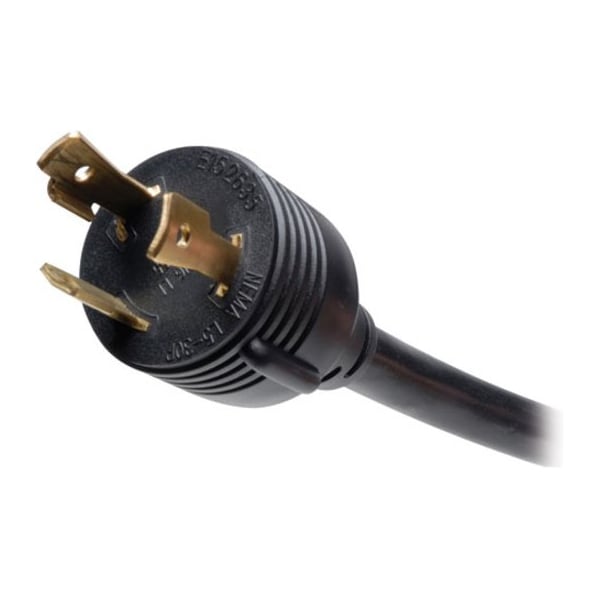

| PDU Plug Type | NEMA L5-30P |
| Unit Dimensions (hwd / in.) | 70 x 2.2 x 2.05 |

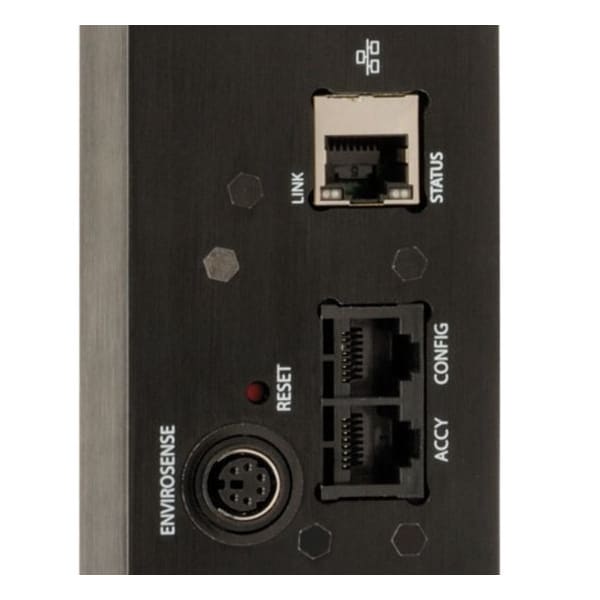

| SNMP Compatibility | Built-in network interface provides remote monitoring via PowerAlert Console Launcher, Telnet, SSH, and SNMP management systems. Remote management enables outlets to be turned on and off individually |
| Storage Temperature Range | 5 to 122 F |
| Package Quantity | 1 |
