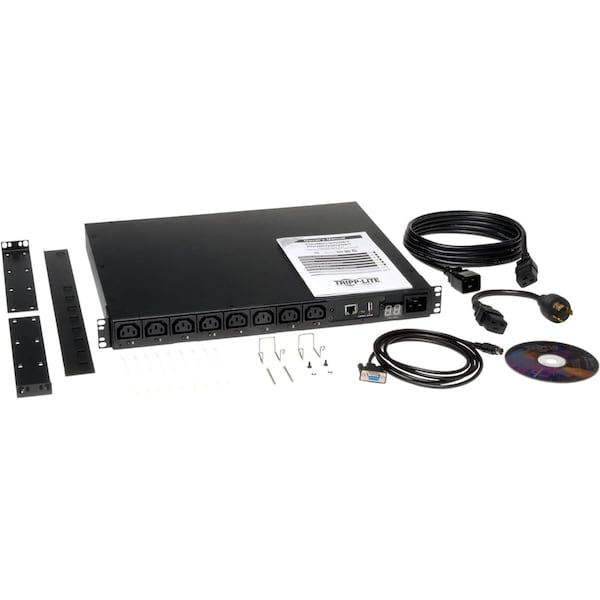

PDU, Switched, 3.2-3.8kW, 200-240V, 8 C13, 1U
| Item | ingle-Phase Switched PDU with LX Platform Interface |
|---|---|
| Type | Switched |
| Number of Outlets | 8 |
| Cord Length | 2.44 m |
| Standards | UL 60950-1, Class A, NOM, CE (IEC 60950), TAA compliant |
| Height | 1.8 in |
| NEMA Receptacle Configuration | C13 |
| Voltage | 208/240V |
| Mounting Style | Horizontal Rackmount/1U |
| NEMA Plug Configuration | NEMA L6-20P |
| Hz | 50/60 Hz |
| Depth | 14.8 in |
| Includes | Mounting Accessories |
| Housing Material | Metal |
| Metered | Yes |
| Max. Amps | 20 |
| Width | 17.3 in |
| Power Indicator | Yes |
| Phase | 1 |
| Frequency | 50/60 Hz |
| Features | Digital Display |
| Watts | 3.84kW (240V), 3.68kW (230V), 3.52kW (220V), 3.33kW (208V) |
| Protection Type | Overload Protection |
| Product Name | PDUMH20HVNET PDU Switched 208V - 240V 20A 8 Outlet |
| Package Contents | PDUMH20HVNET PDU Switched 208V - 240V 20A 8 Outlet, Rackmount PDU, Rack mounting brackets |
| Input Voltage Range | 208 AC to 240 V AC |
| Plug/Connector Detail | 1 x IEC 60320 C20 |
| Receptacle Detail | 8 x IEC 60320 C13 |
| PDU Type | Switched |
| TAA Compliant | Yes |
| Mount Type | Rack-mountable |
| Network (RJ-45) | Yes |
| Rack Height | 1 U |
| Output Voltage | 208 V AC, 240 V AC |
| Input Voltage | 230 V AC |
| Product Type | PDU |
| Front Panel LEDs | 8 LEDs display power on-off status for each output receptacle |
| Unit Dimensions (hwd / in.) | 1.72 x 14.77 x 17.33 |
| PDU Form Factor | Horizontal |
| Output Nominal Voltage | 208/230V |
| Network Compatibility | 10 Mbps; 100 Mbps (Fast Ethernet) |
| Package Includes | PDUMH20HVNET Switched PDU;Rack mounting hardware;(8) Plug-lock inserts;Cord retainer;Configuration cable;(1) IEC C19-to-C20 AC Interconnection cable;IEC C19-to-L6-20P plug adapter;Owners' Manuals |
| PDU Plug Type | IEC-320 C20, NEMA L6-20P |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Input Cord Length (ft.) | 8 |
| Input Connection Type | C20 inlet |
| PDU Input Voltage | 208, 230 |
| Material of Construction | Metal |
| Minimum Required Rack Depth (inches) | 17.1 |
| Output Receptacles | C13 |
| Relative Humidity | 5% to 95% non-condensing |
| Operating Elevation (ft.) | 0-10,000 |
| Input Phase | Single-Phase |
| SNMP Compatibility | Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems |
| Communications Cable | Micro-USB- to-USB A configuration/console Access cable |
| Recommended Electrical Service | Single-phase 16/20A 230/208V service |
| Network Monitoring Port | RJ45 Network port, Micro-USB Configuration port, USB A port supports a variety of Envirosense2 environmental and control modules. See Accessories>Management Hardware section for more information about these modules. |
| Maximum Input Amps | 16 |
| Customized Load Management Receptacles | 8 individually switched output receptacles |
| Frequency Compatibility | 50 / 60 Hz |
| Product Compliance | CE (Europe); FCC Part 15 Class A (USA); Trade Agreements Act (TAA) |
| High Availability PDU Features | Auto Probe Monitoring and Reboot (included); Auto Load Shedding |
| Front Panel LCD Display | Digital display reports total PDU output current in amps |
| Form Factors Supported | 1U rackmount. Includes mounting accessories for 2-4 post racks |
| Storage Temperature Range | -22° to 122°F (-30° to 50°C) |
| Product Certifications | IEC 60950-1; NOM (Mexico); UL 60950-1 |
| Output Capacity Details | 3.68kW (230V), 3.33kW (208V) / 16A total capacity; 12A (10A CE) max per C13 outlet |
| Package Quantity | 1 |
