PDU, Switched, 3.2-3.8kW, 7 C13, 1 C19, 0U
| Item | Single-Phase Switched PDU |
|---|---|
| Number of Outlets | 8 |
| Voltage | 208/240V |
| Cord Length | 3.05 m |
| Max. Amps | 20 |
| Mounting Style | Vertical Rackmount/0U |
| NEMA Receptacle Configuration | C13, C19 |
| NEMA Plug Configuration | NEMA L6-20P; IEC-320 C20 |
| Depth | 1.9 in |
| Width | 2.2 in |
| Height | 38.9 in |
| Frequency | 50/60 Hz |
| Input Voltage Range | 200 AC to 240 V AC |
| Plug/Connector Type | NEMA L6-20P, IEC 60320 C20 |
| Mounting Orientation | Vertical |
| Product Name | Switched PDUMV20HVNET2 8-Outlets PDU |
| Mount Type | Rack-mountable |
| Product Series | Switched |
| PDU Type | Switched |
| Output Voltage | 200 V AC, 208 V AC, 230 V AC, 240 V AC |
| Input Voltage | 230 V AC |
| Product Type | PDU |
| Receptacle Detail | 1 x IEC 60320 C19, 7 x IEC 60320 C13 |
| Package Contents | Switched PDUMV20HVNET2 8-Outlets PDU, L6-20P To C19 Detachable Input Cord, Rackmount Brackets, Mounting Accessory |

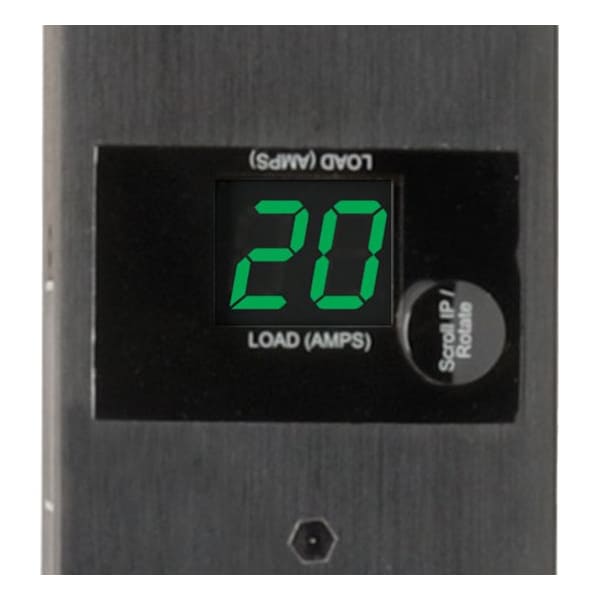

| Front Panel LCD Display | Digital meter reports PDU output current in amps |

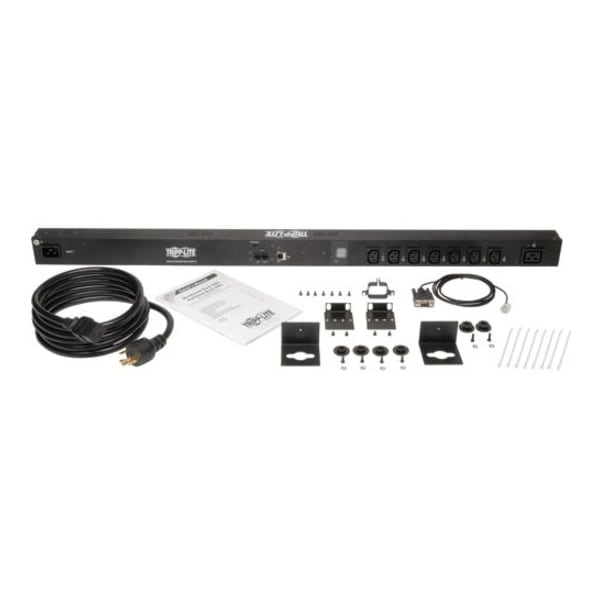

| Package Includes | Rackmount PDU;L6-20P to C19 detachable input cord;Rackmount brackets;PDUMVROTATEBRKT mounting accessory |
| Output Nominal Voltage | 200; 208; 220; 230; 240 |
| Output Receptacles | C13, C19 |
| Operating Temperature Range | 0C ~ 40C (32F ~ 104F) |
| Input Phase | Single-Phase |
| Frequency Compatibility | 50 / 60 Hz |
| Unit Dimensions (hwd / in.) | 38.9 x 2.19 x 1.93 |
| SNMP Compatibility | Pre-installed SNMPWEBCARD provides remote monitoring via web, Telnet, and SNMP management systems. Remote management enables outlets to be turned on and off individually |

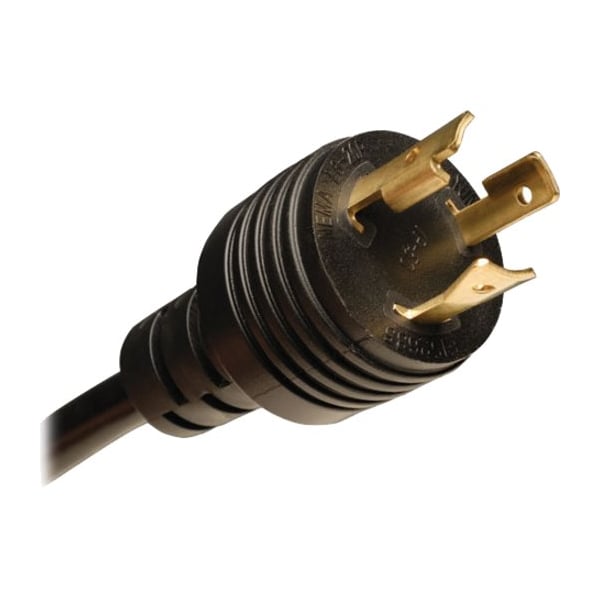

| PDU Plug Type | IEC-320 C20, NEMA L6-20P |
| Customized Load Management Receptacles | Each outlet is individually controllable via remote interface |
| Communications Cable | RJ45-to-DB9 configuration/console Access cable |
| Recommended Electrical Service | 20A 208/240V; 16A 230V |
| Output Capacity Details | 3.84kW (240V), 3.68kW (230V), 3.52kW (220V), 3.33kW (208V), 3.2kW (200V) / 16A total capacity; 16A max per C19 outlet; 12A (10A CE) max per C13 outlet |
| Network Compatibility | 10 Mbps; 100 Mbps (Fast Ethernet) |
| Maximum Input Amps | 20 |
| Front Panel LEDs | 24 power availability LEDs confirm power off/on status for each built-in outlet |
| PDU Form Factor | Vertical |
| Operating Elevation (ft.) | 0-10,000 |
| Input Connection Type | C20 inlet accepts included L6-20P input cable |
| Input Cord Length (ft.) | 10 |
| Relative Humidity | 0-95% non-condensing |
| Form Factors Supported | 0U vertical rackmount; includes rackmount brackets. Supports toolless mounting in button-mount compatible racks |
| Package Quantity | 1 |
