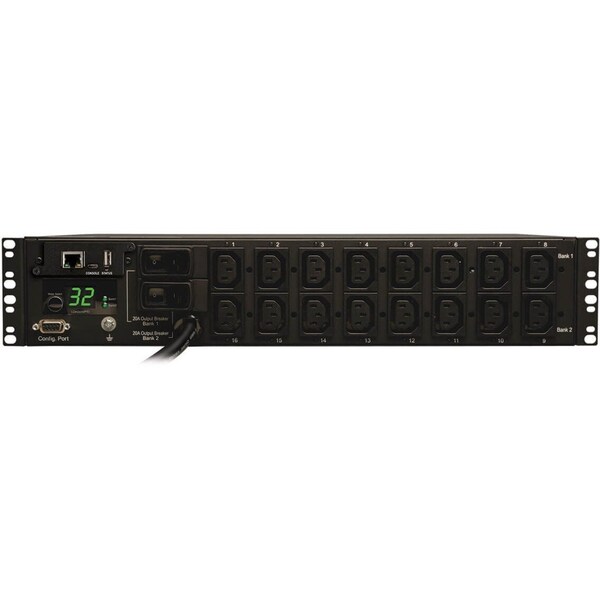

PDU, Switched, 7.4kW, 230V, 16 C13, 32A, 2U
| Item | Single-Phase Switched PDU with LX Platform Interface |
|---|---|
| Number of Outlets | 16 |
| Voltage | 230V |
| Cord Length | 3.66 m |
| Max. Amps | 32 |
| Mounting Style | Horizontal Rackmount/2U |
| Power Indicator | Yes |
| Housing Material | Metal |
| NEMA Receptacle Configuration | C13 |
| NEMA Plug Configuration | IEC-309 32A BLUE (2P+E) |
| Width | 17-1/2 in |
| Metered | Yes |
| Height | 3-1/2 in |
| Hz | 50/60 Hz |
| Phase | 1 |
| Circuit Breaker | Yes |
| Depth | 12-1/2 in |
| Standards | CE/IEC 60950-1, EN Class A, TAA Compliant |
| Frequency | 50/60 Hz |
| Features | Digital Display |
| Type | Switched |
| Watts | 7.4kW (230V) |
| Product Name | Switched PDUMH32HVNET 16-Outlets 7.4kW PDU |
| Receptacle Detail | 16 x IEC 60320 C13 |
| Mount Type | Rack-mountable |
| Power Rating (Watt) | 7,400 W |
| Rack Height | 2 U |
| PDU Type | Switched |
| TAA Compliant | Yes |
| Protection Type | Overload Protection |
| Input Voltage | 230 V AC |
| Additional Information | Plug Type: IEC-309 32A (2P+E) |
| Product Series | Switched |
| Output Voltage | 230 V AC |
| Product Type | PDU |
| Mounting Orientation | Horizontal |

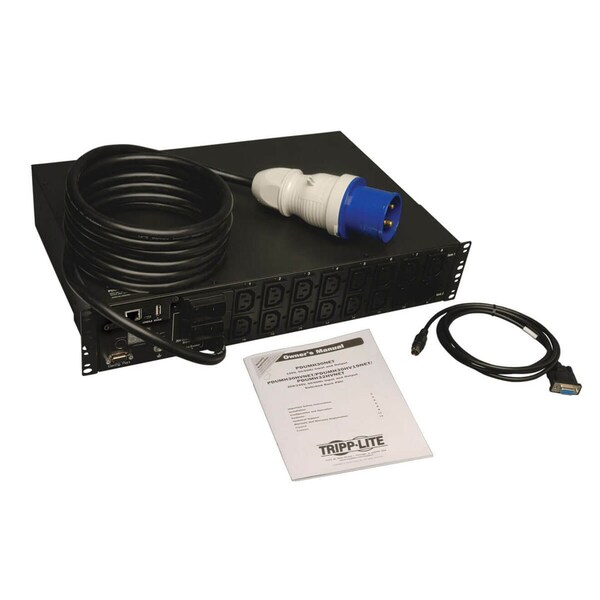

| Package Contents | Switched PDUMH32HVNET 16-Outlets 7.4kW PDU, Rack Installation Brackets, Cable Retention Ties, SNMPWEBCARD Configuration Cable, PowerAlert Software Kit, User Manual |
| Package Includes | PDUMH32HVNET Switched PDU;Rack installation brackets;Cable retention inserts;Configuration cable;Owner's manual |
| Unit Dimensions (hwd / in.) | 3.5 x 17.5 x 12.5 |
| PDU Input Voltage | 230 |
| Network Monitoring Port | RJ45 Network port, Micro-USB Configuration port, USB A port supports a variety of Envirosense2 environmental and control modules. See Accessories>Management Hardware section for more information about these modules. |
| Customized Load Management Receptacles | Each outlet is individually controllable via remote interface |
| Overload Protection | Two 20A circuit breakers protect 8 outlets each |
| Output Nominal Voltage | 230V |
| Operating Elevation (ft.) | 0-10,000 |
| Form Factors Supported | 2U rackmount |
| Maximum Input Amps | 32 |

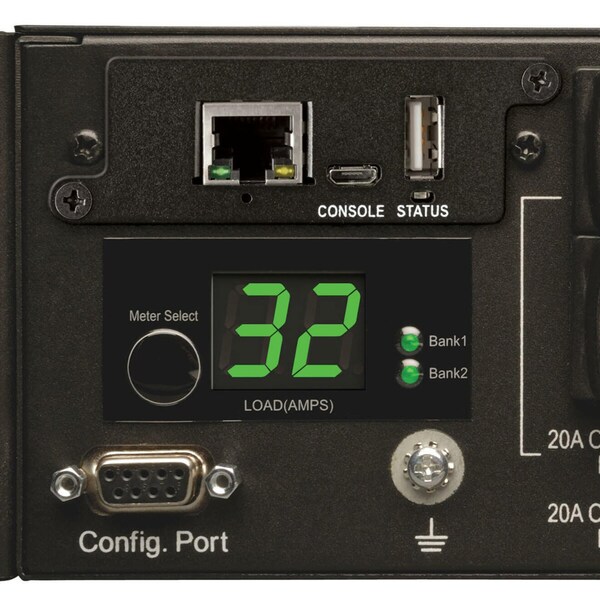

| Front Panel LCD Display | Digital display reports output amps in 3 loading segments (BANK 1: Outlets #1-8; BANK 2: Outlets #9-16; BANK 3: All outlets combined) |
| Input Cord Length (ft.) | 12 |
| Relative Humidity | 5% to 95% non-condensing |
| High Availability PDU Features | Auto Probe Monitoring and Reboot (included); Auto Load Shedding |
| Storage Temperature Range | -22° to 122°F (-30° to 50°C) |
| Product Certifications | EN 60950-1 |
| Product Compliance | CE (Europe); FCC Part 15 Class A (USA); Trade Agreements Act (TAA) |
| Switches | Pushbutton near the digital current meter advances the display of output current for Bank 1, Bank 2 and Banks 1&2 combined; WEBCARDLX: Recessed reset switch for card reboot and factory reset |
| Recommended Electrical Service | Single-phase 32A 230V service |
| Frequency Compatibility | 50 / 60 Hz |
| Network Compatibility | 10 Mbps; 100 Mbps (Fast Ethernet) |
| SNMP Compatibility | LX platform interface provides remote monitoring and control via Java-free HTML5 web interface, telnet, SSH and SNMP management systems |
| Output Receptacles | C13 |
| Front Panel LEDs | 16 power availability LEDs confirm power off/on status for each built-in outlet; Two additional LEDs identify which bank the visual current meter is reporting (Bank 1, Bank 2 or Banks 1&2 combined); WEBCARDLX: LX Platform Status LED (Green); Network Link/Activity LED (Yellow), Network Speed LED (Green) |
| Input Phase | Single-Phase |
| Nominal Input Voltage(s) Supported | 230 V AC |
| Output Capacity Details | 7.4kW (230V) / 32A total capacity / 20A max per breakered outlet bank; 16A max per C19 outlet, 10A max per C13 outlet |
| PDU Plug Type | IEC-309 32A BLUE |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Material of Construction | Metal |
| Minimum Required Rack Depth (inches) | 14.8 |
| PDU Form Factor | Horizontal |
| Communications Cable | Micro-USB- to-USB A configuration/console Access cable |
| Package Quantity | 1 |
