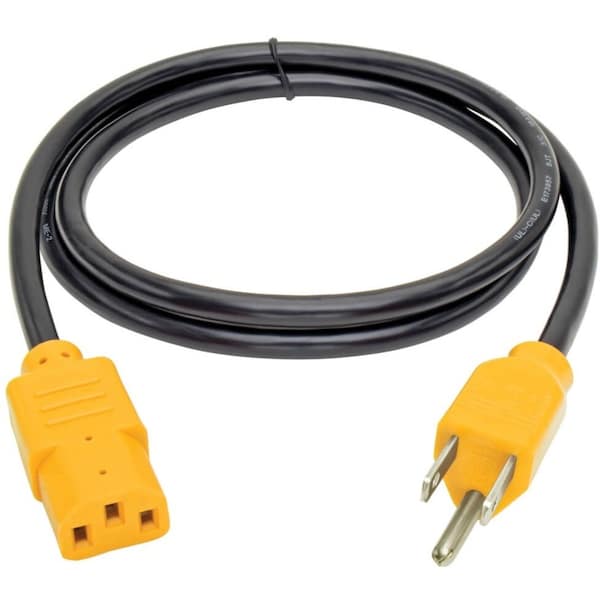

Power Cord, 5-15P to C13, 10A, 18AWG, 4ft
| Item | Power Cord,5-15P to C13,10A,18AWG,4ft |
|---|---|
| Max. Amps | 10 |
| Number of Conductors | 3 |
| Cord Length | 4 ft |
| Wire Size | 18 AWG |
| Voltage | 125V AC |
| Temp. Range | -4 to 140 deg F |
| NEC Cord Designation | SJT |
| Color | Black, Yellow |
| End 2 Connection Type | IEC-320-C13 |
| Voltage Rating | 125 V AC |
| End 1 Connection Type | NEMA 5-15P |
| First End Connector Detail | 1 x NEMA 5-15P |
| Device Supported | Computer, Monitor, Printer |
| Product Color | Black, Yellow |
| Compatibility | PCs, Printers, Monitors |
| Second End Connector Detail | 1 x IEC 60320 C13 |
| Frequency | 60 Hz |
| Product Name | P006-004-YW Standard Power Cord |
| Current Rating | 10 A |
| Product Type | Standard Power Cord |
| Cable Jacket Rating | FT2 |
| Side A - Connector 1 | NEMA 5-15P |
| Cable Length (ft.) | 4 |
| Side B - Connector 1 | IEC-320-C13 |
| Plug Color | Yellow |
| Device Compatibility | PDU, UPS, Server, Computer, HDTV, Monitor, Printer |
| Cable Jacket Color | Black |
| Package Includes | P006-004-YW NEMA 5-15P to C13 Computer Power Cable, 4-ft. (1.22 m), Yellow Plugs |
| Storage Temperature Range | -4 TO 140 F (- 20° TO 60°C) |
| Operating Temperature Range | -4 TO 140 F (- 20° TO 60°C) |
| Cable Jacket Material | PVC |
| Operating Humidity Range | 20-80% RH |
| Wire Gauge (AWG) | 18 |
| Cable Outer Diameter (OD) | 7.7 mm |
| Storage Humidity Range | 20-80% RH |
| Power Cord Jacket Type | SJT |
| Maximum Input Amps | 10 |
| Voltage Compatibility (VAC) | 125 |
| Package Quantity | 1 |
