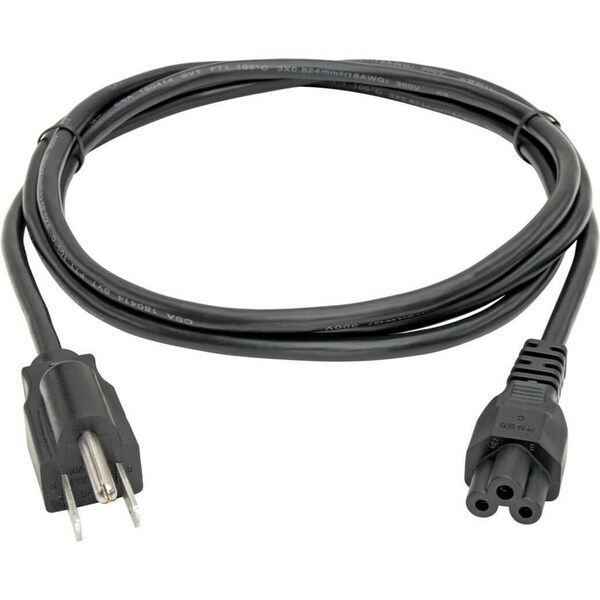

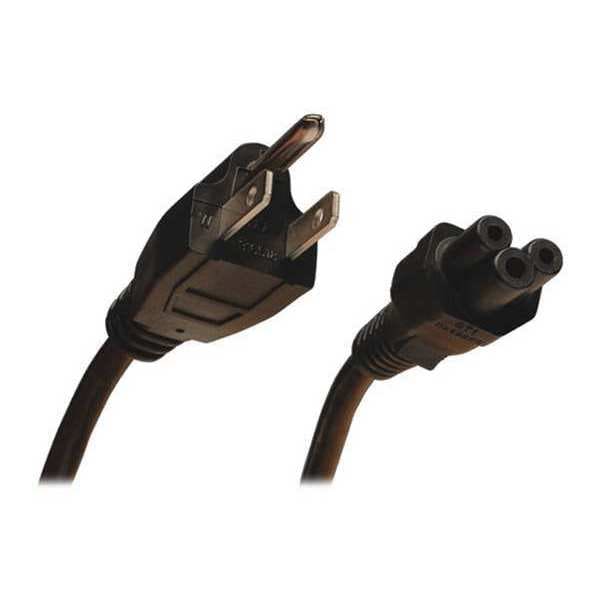

Power Cord, 5-15P to C5, 10A, 18AWG, 3ft
| Item | Power Cord,5-15P to C5,10A,18AWG,3ft |
|---|---|
| Max. Amps | 10 |
| Number of Conductors | 3 |
| Cord Length | 3 ft |
| Wire Size | 18 AWG |
| Voltage | 125V AC |
| NEC Cord Designation | SJT |
| Color | Black |
| Voltage Rating | 125 V AC |
| End 2 Connection Type | IEC-320-C5 |
| End 1 Connection Type | NEMA 5-15P |
| Current Rating | 10 A |
| Gauge | 18 |

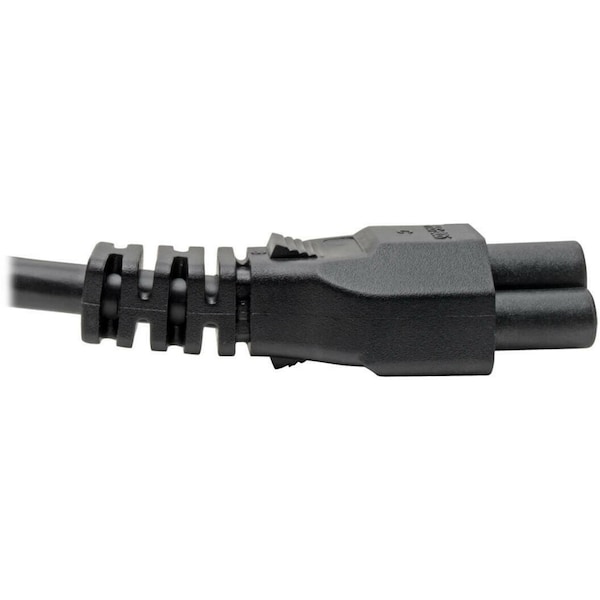

| Second End Connector Detail | 1 x IEC 60320 C5 Female |
| Product Name | Standard Laptop/Notebook Power Cord, 10A (NEMA 5-15P to IEC-320-C5), 3-ft. |
| Device Supported | Notebook |

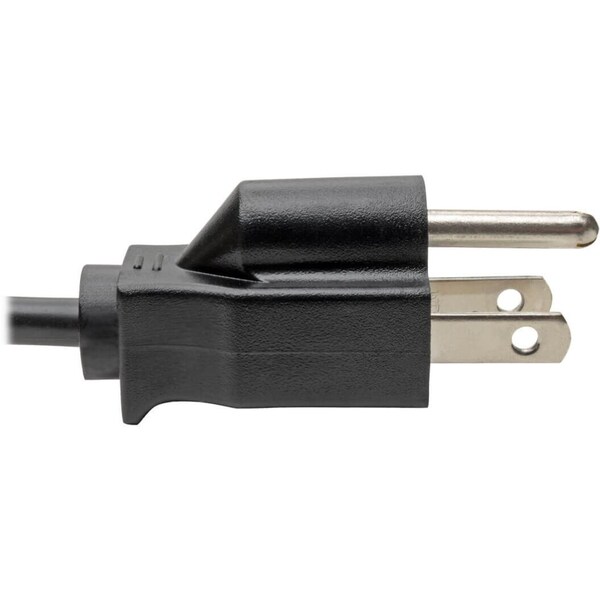

| First End Connector Detail | 1 x NEMA 5-15P Male |
| Frequency | 60 Hz |
| Product Color | Black |
| Plug Color | Black |
| Wire Gauge (AWG) | 18 |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Cable Jacket Color | Black |
| Storage Humidity Range | 10% to 65% RH |
| Side A - Connector 1 | NEMA 5-15P |
| Power Cord Jacket Type | SVT |
| Package Includes | P013-003 3-Slot Power Cord, NEMA 5-15P to C5 - 6 ft., Black |
| Cable Jacket Rating | VW-1 |
| Cable Length (ft.) | 3 |
| Device Compatibility | PDU, UPS, Computer, HDTV, Monitor, Laptop, Projector |
| Operating Humidity Range | 10% to 65% RH |
| Cable Outer Diameter (OD) | 6.3 mm |
| Maximum Input Amps | 10 |
| Side B - Connector 1 | IEC-320-C5 |
| Product Certifications | UL Listed, cUL Listed |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Cable Jacket Material | PVC |
| Voltage Compatibility (VAC) | 125 |
| Package Quantity | 1 |
