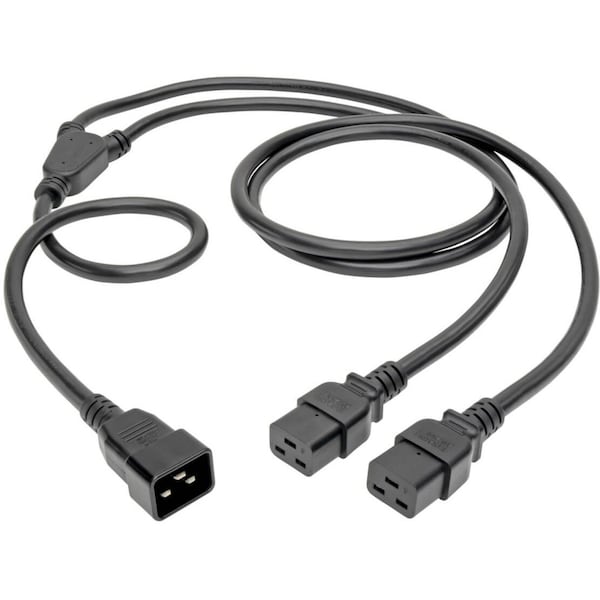

Power Cord, HD, 2x C19, C20, 20A, 12AWG, 6ft
| Item | Power Cord,HD,2x C19,C20,20A,12AWG,6ft |
|---|---|
| Cord Length | 6 ft |
| Voltage | 100-250V AC |
| Wire Size | 12 AWG |
| Number of Conductors | 3 |
| Max. Amps | 20 |
| Description/Special Features | High Voltage |
| NEC Cord Designation | SJT |
| Color | Black |
| End 2 Connection Type | IEC-320-C19 |
| End 1 Connection Type | IEC-320-C20 |
| Voltage Rating | 110 V AC, 220 V AC |
| Device Supported | Computer, Server |
| Second End Connector Detail | 1 x IEC 60320 C20 |
| Product Color | Black |
| Current Rating | 20 A |
| First End Connector Detail | 2 x IEC 60320 C19 |
| Frequency | 60 Hz, 50 Hz |
| Compatibility | Computer, Blade Server Chassis |
| Product Name | P036-006-2C19 Splitter Cable |
| Product Type | Splitter Cord |
| Device Compatibility | PDU, UPS, Server, Network Switch, Router |
| Product Certifications | UL Listed, cUL Listed |
| Operating Humidity Range | Non-Condensing, 35% to 85% RH |
| Operating Temperature Range | 14° to 140°F (-10° to 60°C) |
| Cable Length (ft.) | 6 |
| Package Includes | P036-006-2C19 2x C19 to C20 Y Splitter Heavy-Duty Power Extension Cord, 6-ft. (1.83 m), Black |
| Voltage Compatibility (VAC) | 100-250 |
| Storage Temperature Range | 14° to 140°F (-10° to 60°C) |
| Side A - Connector 1 | IEC-320-C20 |
| Cable Jacket Material | PVC |
| Power Cord Jacket Type | SJT |
| Wire Gauge (AWG) | 12 |
| Cable Jacket Color | Black |
| Cable Outer Diameter (OD) | 11.2 mm |
| Cable Jacket Rating | VW-1 |
| Plug Color | Black |
| Side B - Connector 1 | IEC-320-C19 |
| High Voltage | Yes |
| Maximum Input Amps | 20 |
| Storage Humidity Range | Non-Condensing, 35% to 85% RH |
| Package Quantity | 1 |
