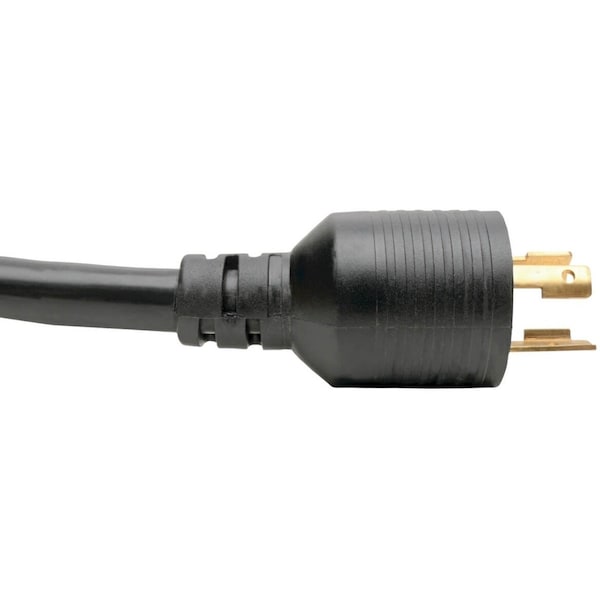

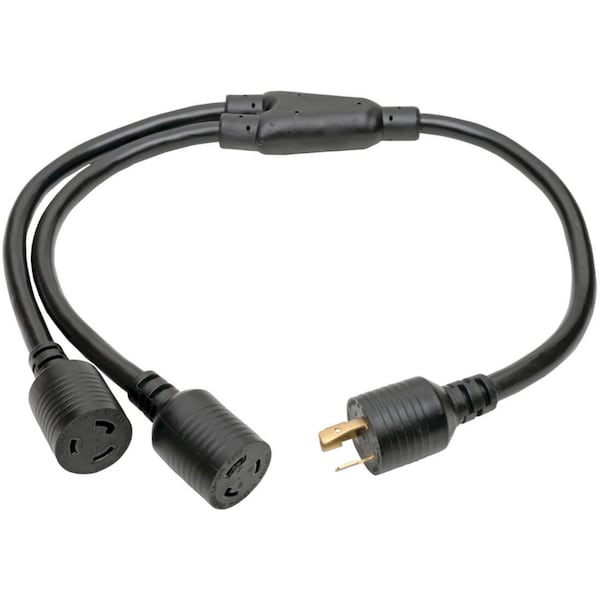

Power Cord, HD, 2x L6-20P/R, 20A, 10AWG, 1ft
| Item | Power Cord,HD,2x L6-20P/R,20A,10AWG,1ft |
|---|---|
| Cord Length | 1 ft |
| Voltage | 250V AC |
| Wire Size | 10 AWG |
| Number of Conductors | 3 |
| Max. Amps | 20 |
| NEC Cord Designation | SJT |
| Description/Special Features | High Voltage; Locking Plug |
| Color | Black |
| End 2 Connection Type | NEMA L6-20R |
| Voltage Rating | 220 V AC |
| End 1 Connection Type | NEMA L6-20P |
| Current Rating | 20 A |
| Product Name | P039-001-2 Splitter Cable |
| Second End Connector Detail | 2 x NEMA L6-20R Female |
| First End Connector Detail | 1 x NEMA L6-20P Male |
| Product Type | Splitter Cord |
| Product Color | Black |
| Cable Length (ft.) | 1 |
| Cable Outer Diameter (OD) | 14.5 mm |
| Cable Jacket Color | Black |
| Device Compatibility | PDU, UPS, Server, Network Switch, Router |
| Locking Plug | Yes |
| Maximum Input Amps | 20 |
| Product Certifications | UL Listed, cUL Listed |
| Side B - Connector 1 | NEMA L6-20R |
| High Voltage | Yes |
| Storage Humidity Range | 20% to 80% RH |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Cable Jacket Material | PVC |
| Power Cord Jacket Type | SJT |
| Operating Humidity Range | 20% to 70% RH |
| Voltage Compatibility (VAC) | 100-250 |
| Cable Jacket Rating | FT2 |
| Plug Color | Black |
| Wire Gauge (AWG) | 10 |
| Side A - Connector 1 | NEMA L6-20P |
| Package Quantity | 1 |
