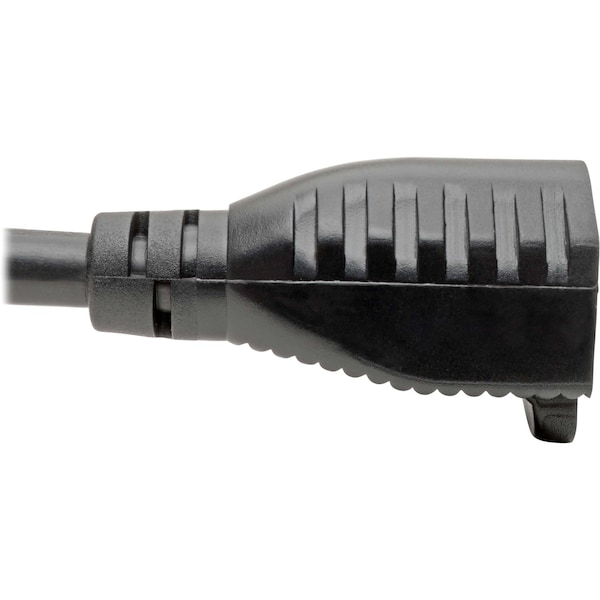

Power Cord, HD, 5-15P, 5-15R, 15A, 14AWG, 1ft
| Item | Power Cord,HD,5-15P,5-15R,15A,14AWG,1ft |
|---|---|
| Max. Amps | 15 |
| Number of Conductors | 3 |
| Cord Length | 1 ft |
| Wire Size | 14 AWG |
| Voltage | 120V AC |
| Description/Special Features | Locking Plug |
| NEC Cord Designation | SJT |
| Voltage Rating | 120 V AC |
| Color | Black |
| End 1 Connection Type | NEMA L5-15P |
| End 2 Connection Type | NEMA 5-15R |
| Product Color | Black |
| Current Rating | 15 A |
| First End Connector Detail | 1 x NEMA 5-15P Male |
| Product Name | Heavy-Duty Power Adapter Cord, 15A, 14AWG (NEMA 5-15R to L5-15P), 1-ft. |
| Second End Connector Detail | 1 x NEMA 5-15R Female |
| Side B - Connector 1 | NEMA 5-15R |
| Cable Outer Diameter (OD) | 9.3 mm |
| Locking Plug | Yes |
| Plug Color | Black |
| Side A - Connector 1 | NEMA L5-15P |
| Storage Temperature Range | 14° to 140°F (-10° to 60°C) |
| Maximum Input Amps | 15 |
| Product Certifications | UL Listed, cUL Listed |
| Cable Jacket Color | Black |
| Cable Length (ft.) | 1 |
| Package Includes | P025-001 5-15R to L5-15P Adapter Power Cord, 1-ft. (0.31 m), Black |
| Power Cord Jacket Type | SJT |
| Operating Temperature Range | 14° to 140°F (-10° to 60°C) |
| Voltage Compatibility (VAC) | 120 |
| Cable Jacket Material | PVC |
| Storage Humidity Range | Non-Condensing, 35% to 85% RH |
| Device Compatibility | PDU, UPS, Server, Computer, HDTV, Monitor |
| Operating Humidity Range | Non-Condensing, 35% to 85% RH |
| Cable Jacket Rating | VW-1 |
| Wire Gauge (AWG) | 14 |
| Package Quantity | 1 |
