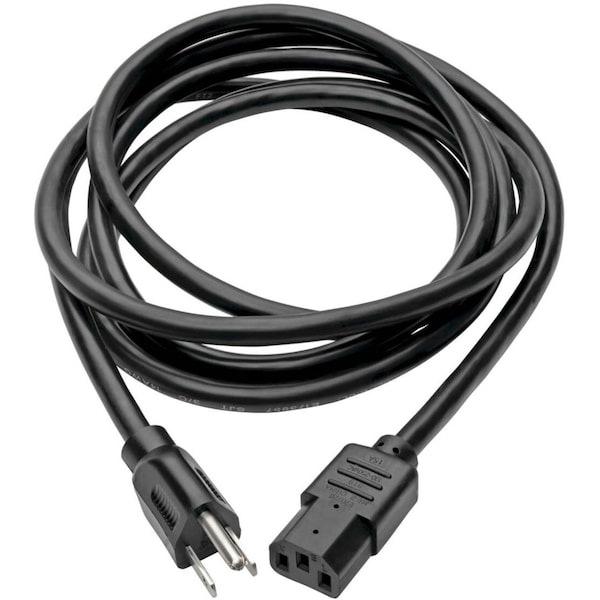

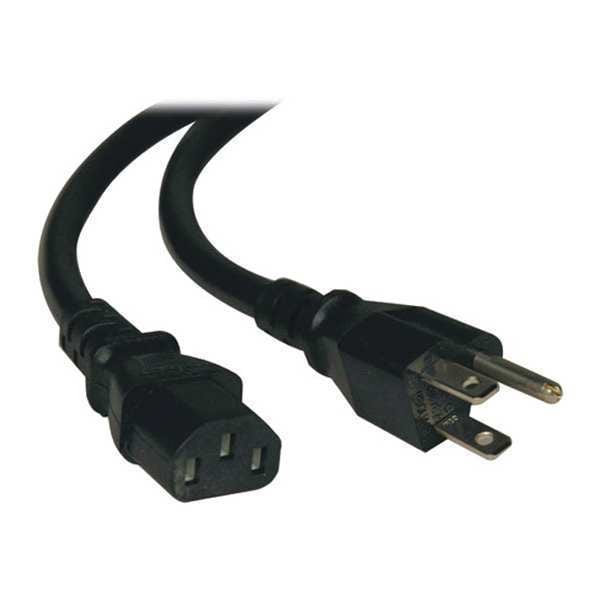

Power Cord, HD, 5-15P, C13, 15A, 14AWG, 12ft
| Item | Power Cord,HD,5-15P,C13,15A,14AWG,12ft |
|---|---|
| Max. Amps | 15 |
| Number of Conductors | 3 |
| Cord Length | 12 ft |
| Wire Size | 14 AWG |
| Voltage | 125V AC |
| NEC Cord Designation | SJT |
| Voltage Rating | 125 V AC |
| Color | Black |

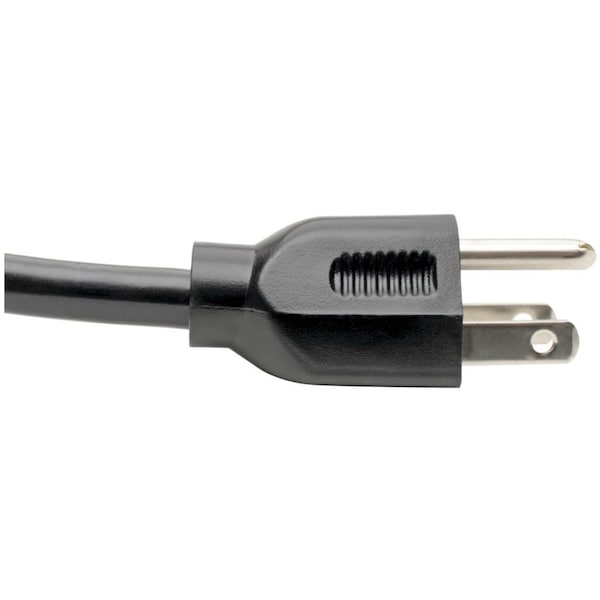

| End 1 Connection Type | NEMA 5-15P |
| End 2 Connection Type | IEC-320-C13 |
| Certifications & Standards | UL Listed |
| First End Connector Detail | 1 x 3-pin IEC 320 EN 60320 C13 Female |
| Frequency | 60 Hz |
| Second End Connector Detail | 1 x 3-pin NEMA 5-15P Male |
| Product Color | Black |
| Device Supported | Server |
| Product Name | Heavy-Duty Computer Power Cord, 14AWG 15A (NEMA 5-15P to IEC-320-C13) 12-ft. |
| Gauge | 14 |
| Current Rating | 15 A |
| Cable Outer Diameter (OD) | 9.3 mm |
| Plug Color | Black |
| Package Includes | P007-012 Desktop Computer Power Cord, 5-15P to C13, 12-ft. (3.66 m), Black |
| Operating Humidity Range | 10% to 65% RH |
| Side B - Connector 1 | IEC-320-C13 |
| Storage Humidity Range | 10% to 65% RH |
| Cable Jacket Color | Black |
| Power Cord Jacket Type | SJT |
| Cable Jacket Rating | VW-1 |
| Side A - Connector 1 | NEMA 5-15P |
| Cable Length (ft.) | 12 |
| Cable Jacket Material | PVC |
| Product Certifications | UL Listed, cUL Listed |
| Wire Gauge (AWG) | 14 |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Device Compatibility | PDU, UPS, Server, Computer, HDTV, Monitor, Printer |
| Voltage Compatibility (VAC) | 125 |
| Maximum Input Amps | 15 |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Package Quantity | 1 |
