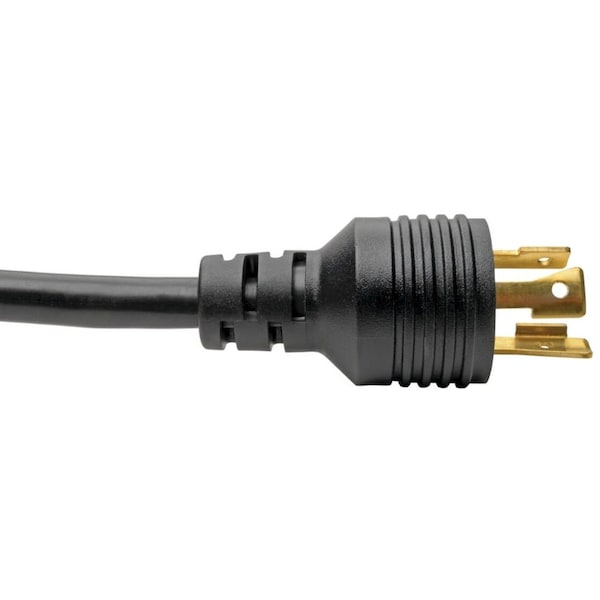

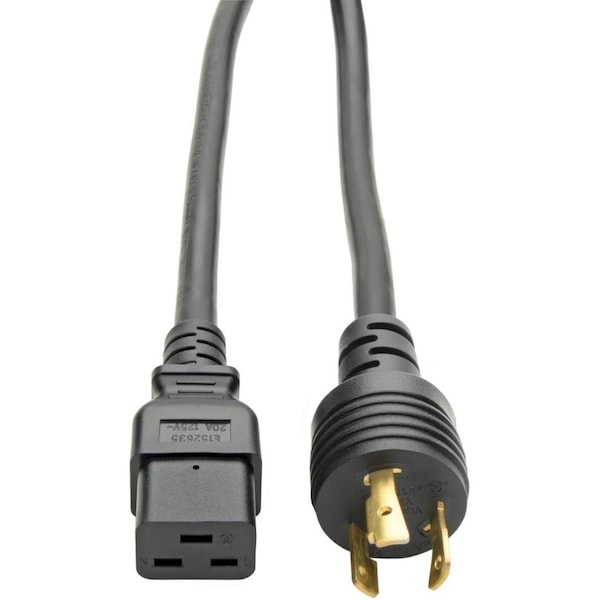

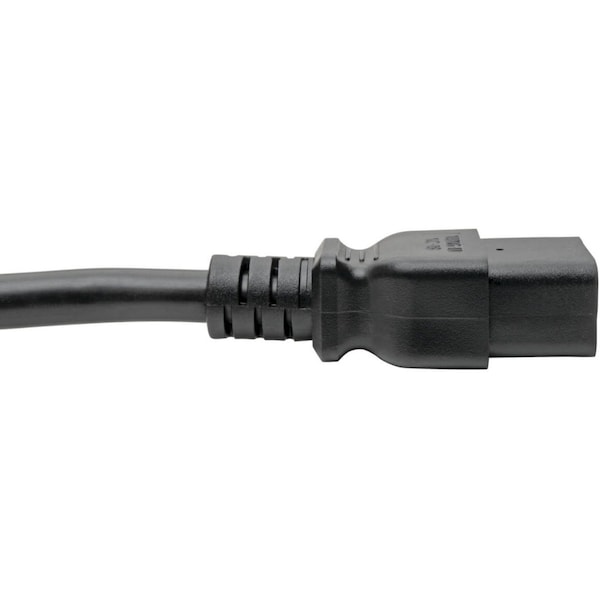

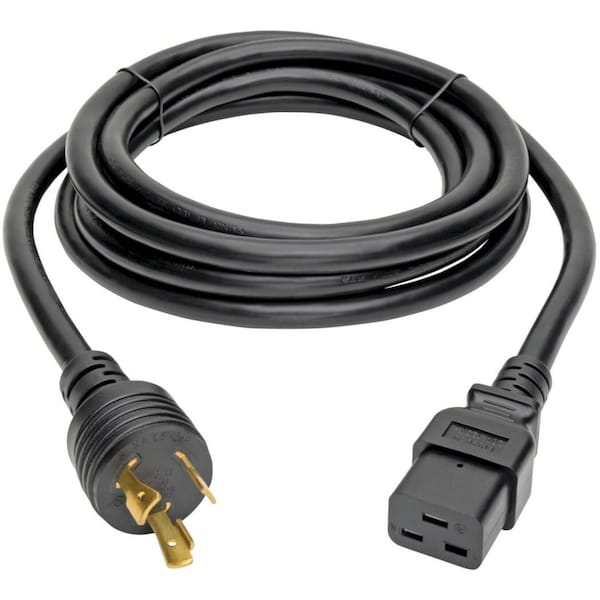

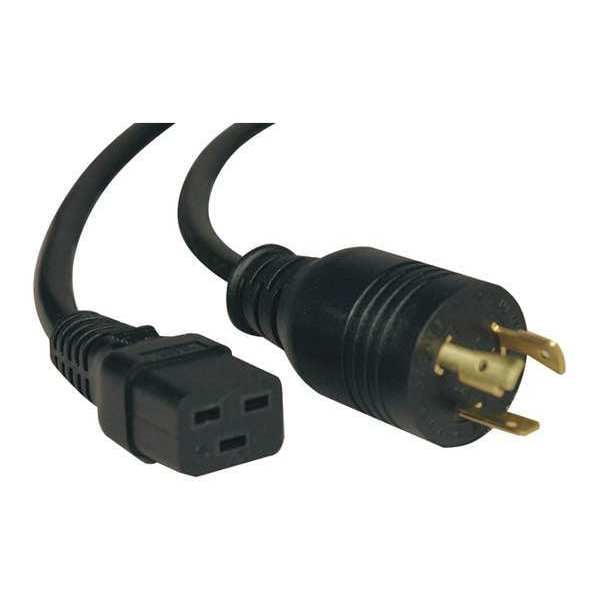

Power Cord, HD, C19, L5-20P, 20A, 12AWG, 10ft
| Item | Power Cord,HD,C19,L5-20P,20A,12AWG,10ft |
|---|---|
| Cord Length | 10 ft |
| Voltage | 125V AC |
| Wire Size | 12 AWG |
| Number of Conductors | 3 |
| Max. Amps | 20 |
| Description/Special Features | Locking Plug |
| NEC Cord Designation | SJT |
| Color | Black |
| Voltage Rating | 250 V AC |
| End 1 Connection Type | NEMA L5-20P |
| End 2 Connection Type | IEC-320-C19 |
| Frequency | 50 Hz |
| Additional Information | Fully molded ends |
| Package Contents | P045-010 Standard Power Cord, C19 to L5-20P Power Cable, 10 ft. |
| Product Color | Black |
| Product Name | P045-010 Standard Power Cord |
| Side B - Connector 1 | IEC-320-C19 |
| Relative Humidity | 10% to 65% RH, Non-Condensing |
| Maximum Input Amps | 20 |
| Power Cord Jacket Type | SJT |
| Device Compatibility | PDU, UPS, Server |
| Cable Length (ft.) | 10 |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Cable Jacket Material | PVC |
| Package Includes | P045-010 C19 to L5-20P Heavy-Duty Extension Cord, 10-ft. (3.05 m), Black |
| Cable Jacket Rating | VW-1 |
| Cable Jacket Color | Black |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Side A - Connector 1 | NEMA L5-20P |
| Wire Gauge (AWG) | 12 |
| Product Certifications | UL Listed, cUL Listed |
| Plug Color | Black |
| Voltage Compatibility (VAC) | 125 |
| Cable Outer Diameter (OD) | 11 mm |
| Package Quantity | 1 |
