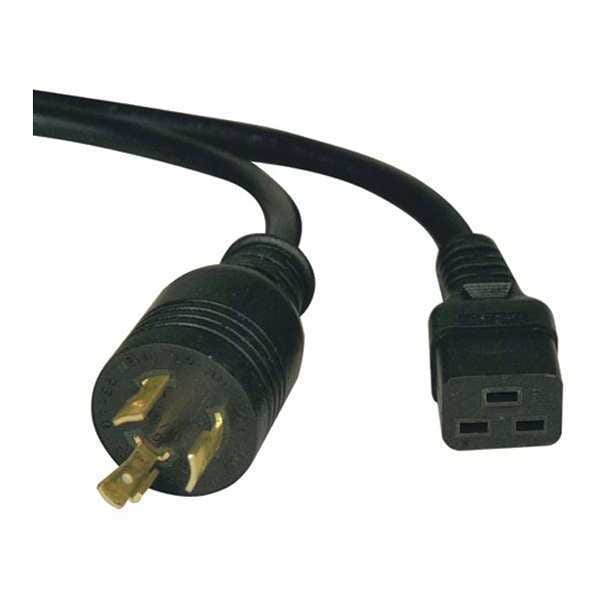

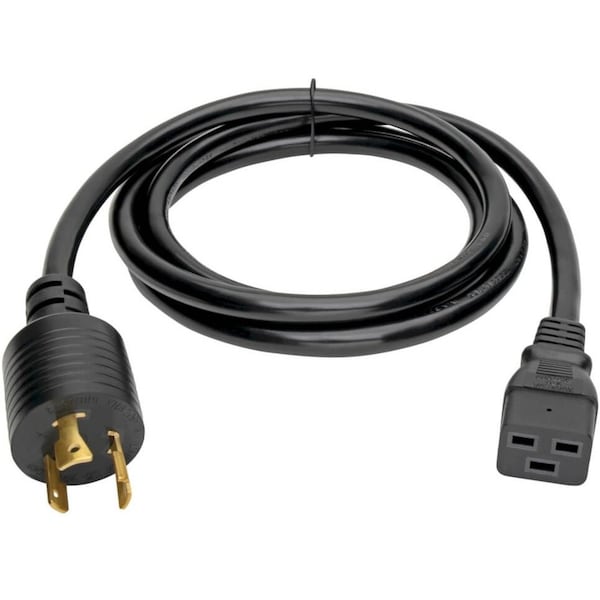

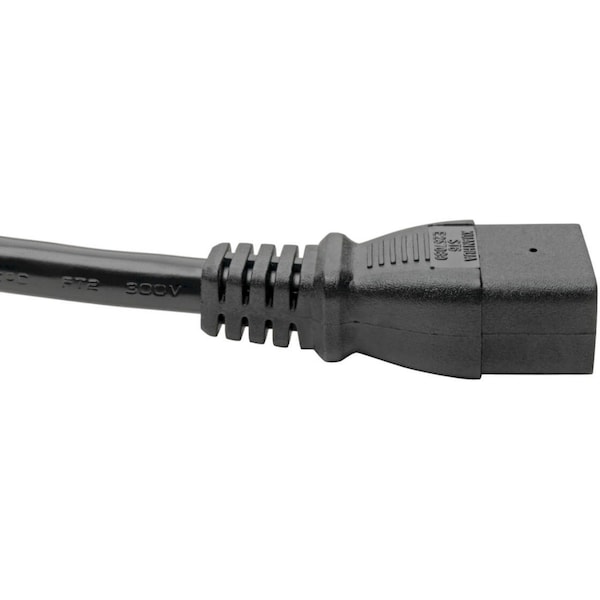

Power Cord, HD, C19, L6-20P, 20A, 12AWG, 6ft
| Item | Power Cord,HD,C19,L6-20P,20A,12AWG,6ft |
|---|---|
| Max. Amps | 20 |
| Number of Conductors | 3 |
| Cord Length | 6 ft |
| Wire Size | 12 AWG |
| Voltage | 250V AC |
| Description/Special Features | High Voltage; Locking Plug |
| NEC Cord Designation | SJT |
| Color | Black |
| End 2 Connection Type | IEC-320-C19 |
| Voltage Rating | 250 V AC |
| End 1 Connection Type | NEMA L6-20P |
| Product Name | P040-006 Standard Power Cord |
| Product Color | Black |
| Frequency | 50 Hz |
| Current Rating | 20 A |
| First End Connector Detail | 1 x NEMA L6-20P |
| Second End Connector Detail | 1 x IEC 60320 C19 |
| Product Type | Standard Power Cord |
| Product Certifications | UL Listed, cUL Listed |
| Unit Dimensions (hwd / in.) | 0.5 x 6 x 7.8 |
| Cable Jacket Material | PVC |
| Operating Humidity Range | 20% to 70% RH |
| Cable Length (ft.) | 6 |
| Cable Jacket Color | Black |
| Maximum Input Amps | 20 |
| Device Compatibility | PDU, UPS, Server, Network Switch, Router |
| Cable Jacket Rating | FT2 |
| Side B - Connector 1 | IEC-320-C19 |
| Voltage Compatibility (VAC) | 100-250 |
| Side A - Connector 1 | NEMA L6-20P |
| Locking Plug | Yes |
| High Voltage | Yes |
| Storage Temperature Range | -4° to 194°F (-20° to 90°C) |
| Storage Humidity Range | 20% to 80% RH |
| Wire Gauge (AWG) | 12 |
| Plug Color | Black |
| Operating Temperature Range | -4° to 194°F (-20° to 90°C) |
| Power Cord Jacket Type | SJT |
| Package Includes | P040-006 C19 to L6-20P Power Cord, 6-ft. (1.83 m), Black |
| Cable Outer Diameter (OD) | 11 mm |
| Package Quantity | 1 |
