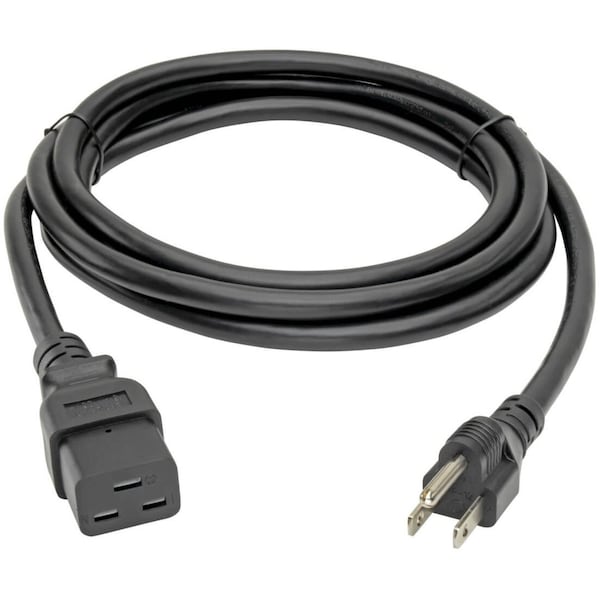

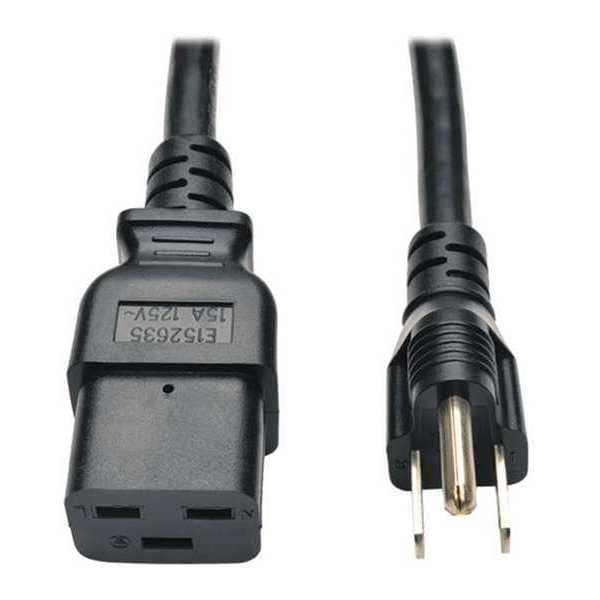

Power Cord, HD, C19 to 5-15P, 15A, 14AWG, 8ft
| Item | Power Cord,HD,C19 to 5-15P,15A,14AWG,8ft |
|---|---|
| Cord Length | 8 ft |
| Voltage | 125V AC |
| Wire Size | 14 AWG |
| Number of Conductors | 3 |
| Max. Amps | 15 |
| NEC Cord Designation | SJT |
| Color | Black |
| Voltage Rating | 125 V AC |
| End 2 Connection Type | IEC-320-C19 |

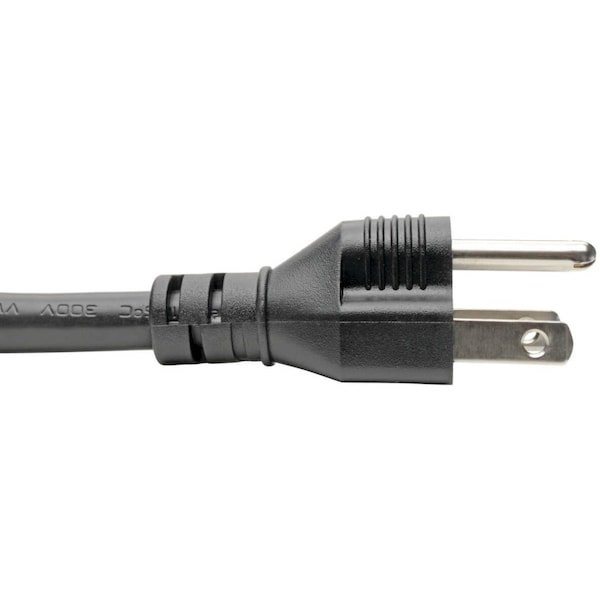

| End 1 Connection Type | NEMA 5-15P |
| Product Color | Black |
| Second End Connector Detail | 1 x 3-pin NEMA 5-15P Male |
| Current Rating | 15 A |
| First End Connector Detail | 1 x 3-pin IEC 60320 C19 Female |
| Product Name | Heavy-Duty Power Adapter Cord, 15A, 14AWG (IEC-320-C19 to NEMA 5-15P), 8-ft. |
| Device Supported | Server |
| Storage Temperature Range | 14° to 140°F (-10° to 60°C) |
| Product Certifications | UL Listed, cUL Listed |
| Cable Jacket Color | Black |
| Wire Gauge (AWG) | 14 |
| Unit Dimensions (hwd / in.) | 8.85 x 12.8 x 0.5 |
| Side B - Connector 1 | IEC-320-C19 |
| Cable Length (ft.) | 8 |
| Device Compatibility | PDU, UPS, Server, Computer, HDTV, Monitor |
| Side A - Connector 1 | NEMA 5-15P |
| Cable Jacket Material | PVC |
| Cable Outer Diameter (OD) | 9.3 mm |
| Operating Humidity Range | Non-Condensing, 35% to 85% RH |
| Power Cord Jacket Type | SJT |
| Plug Color | Black |
| Storage Humidity Range | Non-Condensing, 35% to 85% RH |
| Maximum Input Amps | 15 |
| Cable Jacket Rating | VW-1 |
| Operating Temperature Range | 14° to 140°F (-10° to 60°C) |
| Voltage Compatibility (VAC) | 125 |
| Package Quantity | 1 |
