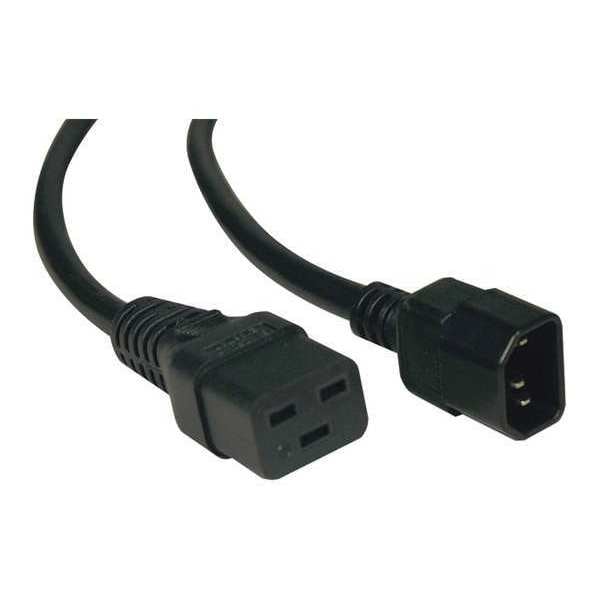

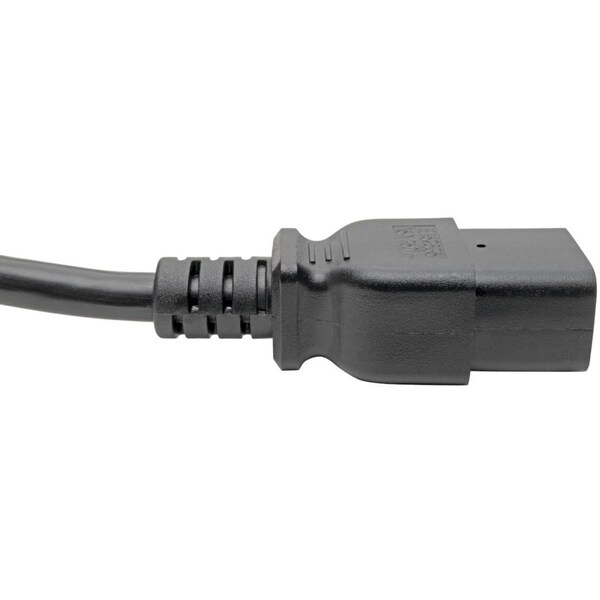

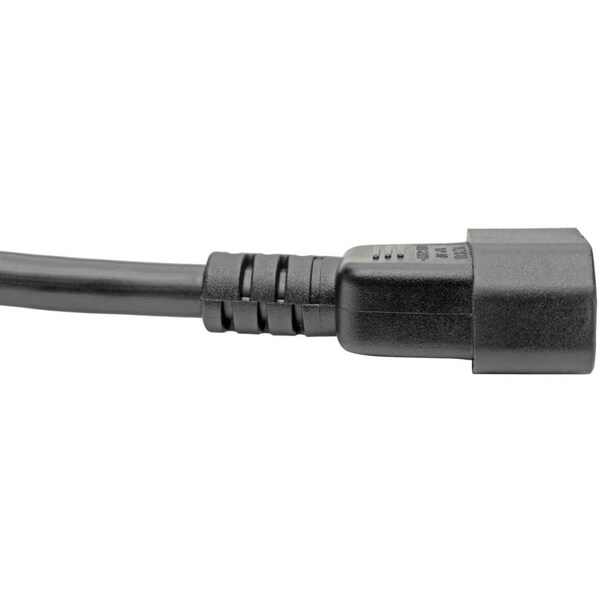

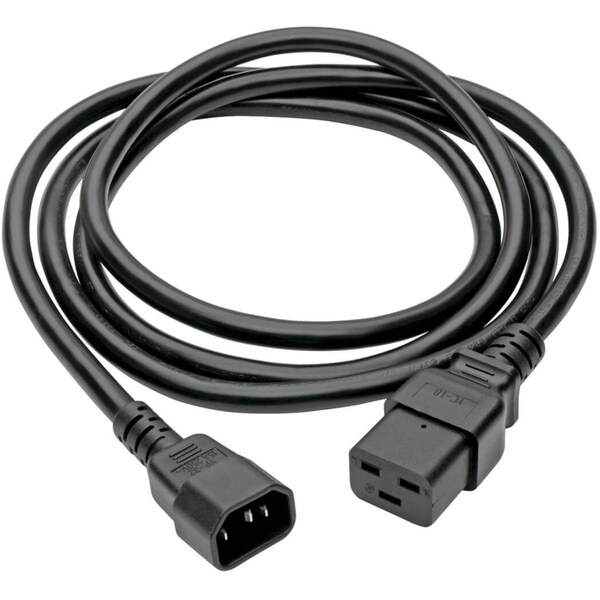

Power Cord, HD, C19 to C14, 15A, 14AWG, 10ft
| Item | Power Cord,HD,C19 to C14,15A,14AWG,10ft |
|---|---|
| Max. Amps | 15 |
| Number of Conductors | 3 |
| Cord Length | 10 ft |
| Wire Size | 14 AWG |
| Voltage | 100-250V AC |
| Description/Special Features | High Voltage |
| NEC Cord Designation | SJT |
| Voltage Rating | 250 V AC |
| Color | Black |
| End 1 Connection Type | IEC-320-C14 |
| End 2 Connection Type | IEC-320-C19 |
| Additional Information | Fully molded ends |
| Frequency | 50 Hz, 60 Hz |
| Second End Connector Detail | 1 x IEC 60320 C19 |
| Product Name | P047-010 Power Interconnect Cable |
| First End Connector Detail | 1 x IEC 60320 C14 |
| Product Type | Power Interconnect Cord |
| Current Rating | 15 A |
| Product Color | Black |
| Side B - Connector 1 | IEC-320-C19 |
| Power Cord Jacket Type | SJT |
| Package Includes | P047-010 C19 to C14 Power Cord, 10-ft. (3.05 m), Black |
| Cable Jacket Rating | VW-1 |
| Side A - Connector 1 | IEC-320-C14 |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Wire Gauge (AWG) | 14 |
| Operating Humidity Range | 10% to 65% RH |
| Maximum Input Amps | 15 |
| Product Certifications | UL Listed, cUL Listed |
| Cable Length (ft.) | 10 |
| Storage Humidity Range | 10% to 65% RH |
| Cable Jacket Color | Black |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Voltage Compatibility (VAC) | 100-250 |
| High Voltage | Yes |
| Cable Outer Diameter (OD) | 9.3 mm |
| Device Compatibility | PDU, UPS, Server, Computer |
| Cable Jacket Material | PVC |
| Plug Color | Black |
| Package Quantity | 1 |
