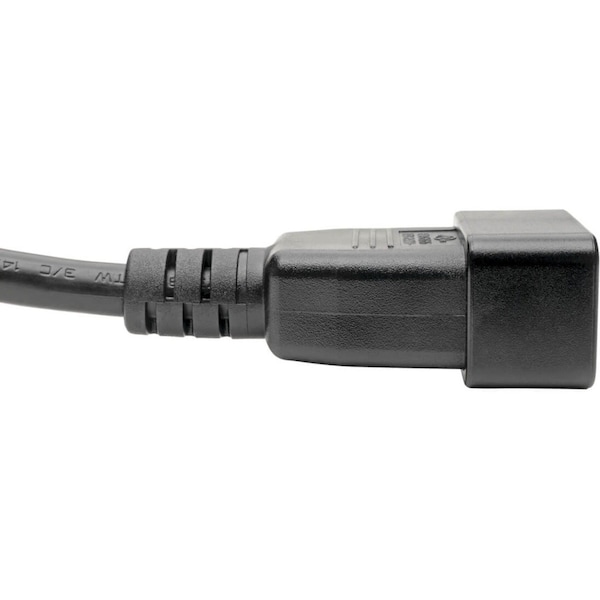

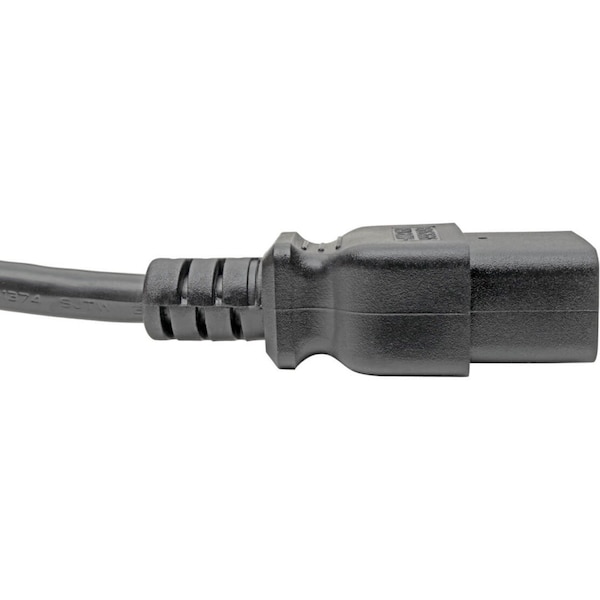

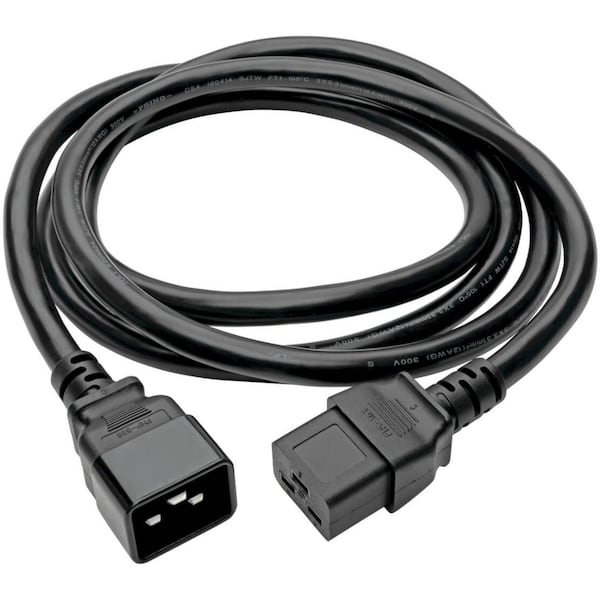

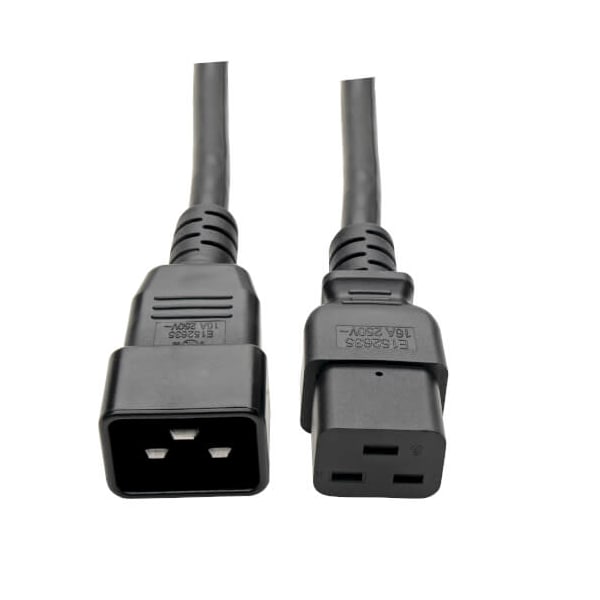

Power Cord, HD, C19 to C20, 15A, 14AWG, 10ft
| Item | Power Cord,HD,C19 to C20,15A,14AWG,10ft |
|---|---|
| Cord Length | 10 ft |
| Voltage | 250V AC |
| Wire Size | 14 AWG |
| Number of Conductors | 3 |
| Max. Amps | 15 |
| Description/Special Features | High Voltage |
| NEC Cord Designation | SJT |
| Color | Black |
| Voltage Rating | 230 V AC |
| End 2 Connection Type | IEC-320-C19 |
| End 1 Connection Type | IEC-320-C20 |
| Current Rating | 15 A |
| Product Color | Black |
| Product Name | P036-010-15A Power Extension Cord |
| Second End Connector Detail | 1 x IEC 60320 C20 Male |
| First End Connector Detail | 1 x IEC 60320 C19 Female |
| Device Supported | Router, Switch, PDU, UPS, Server |
| Cable Jacket Material | PVC |
| Wire Gauge (AWG) | 14 |
| Operating Temperature Range | 14° to 140°F (-10° to 60°C) |
| Power Cord Jacket Type | SJT |
| Voltage Compatibility (VAC) | 250 |
| Product Certifications | UL Listed, cUL Listed |
| Cable Outer Diameter (OD) | 9.3 mm |
| Cable Jacket Color | Black |
| Cable Length (ft.) | 10 |
| High Voltage | Yes |
| Maximum Input Amps | 15 |
| Package Includes | P036-010-15A C19 to C20 Heavy-Duty Extension Cord, 10-ft. (3.05 m), Black |
| Plug Color | Black |
| Device Compatibility | PDU, UPS, Server, Network Switch, Router |
| Operating Humidity Range | Non-Condensing, 35% to 85% RH |
| Side B - Connector 1 | IEC-320-C19 |
| Side A - Connector 1 | IEC-320-C20 |
| Storage Humidity Range | Non-Condensing, 35% to 85% RH |
| Cable Jacket Rating | VW-1 |
| Storage Temperature Range | 14° to 140°F (-10° to 60°C) |
| Package Quantity | 1 |
