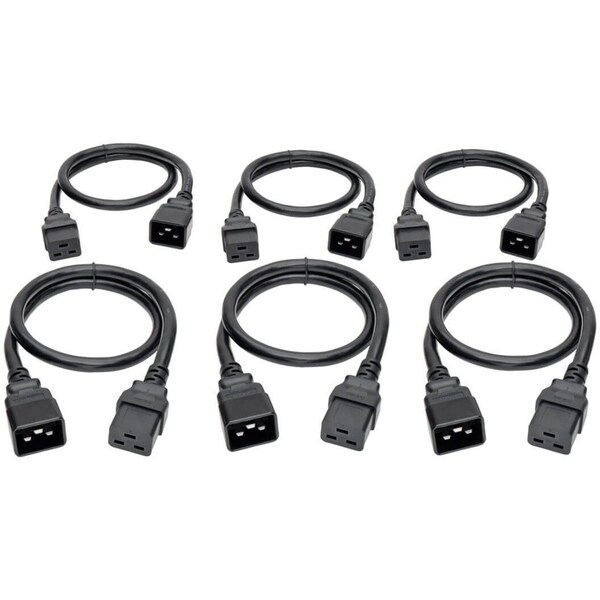

Power Cord, HD, C19 to C20, 20A, 12AWG, 2ft
| Item | Power Cord,HD,C19 to C20,20A,12AWG,2ft |
|---|---|
| Cord Length | 2 ft |
| Voltage | 250V AC |
| Wire Size | 12 AWG |
| Number of Conductors | 3 |
| Max. Amps | 20 |
| NEC Cord Designation | SJT |
| Description/Special Features | High Voltage |
| Voltage Rating | 250 V AC |
| Color | Black |
| End 2 Connection Type | IEC-320-C19 |
| End 1 Connection Type | IEC-320-C20 |
| Device Supported | Server |
| Current Rating | 20 A |
| Compatibility | Blade Server Chassis |
| Product Name | 6-Pack of 2-ft. 12AWG Heavy Duty Power Cords (IEC-320-C19 to IEC-320-C20) |
| Product Type | Power Interconnect Cord |
| Gauge | 12 |
| First End Connector Type | IEC 60320 C19 |
| Second End Connector Type | IEC 60320 C20 |
| Frequency | 50 Hz |
| Product Color | Black |
| Cable Outer Diameter (OD) | 11.2 mm |
| Side A - Connector 1 | IEC-320-C20 |
| Operating Temperature Range | 23° to 140°F (-5° to 60°C) |
| Storage Humidity Range | Non-Condensing, 0% to 90% RH |
| Voltage Compatibility (VAC) | 250 |
| Storage Temperature Range | -4° to 176°F (-20° to 80°C) |
| Plug Color | Black |
| Device Compatibility | PDU, UPS, Server, Network Switch, Router |
| Wire Gauge (AWG) | 12 |
| Cable Length (ft.) | 2 |
| Package Includes | (6) C19 to C20 Heavy-Duty Extension Cords, 2-ft. (0.61 m), Black |
| Cable Jacket Color | Black |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | VW-1 |
| Operating Humidity Range | Non-Condensing, 0% to 90% RH |
| Maximum Input Amps | 20 |
| Side B - Connector 1 | IEC-320-C19 |
| Product Certifications | UL Listed, cUL Listed |
| Power Cord Jacket Type | SJT |
| High Voltage | Yes |
| Package Quantity | 1 |
