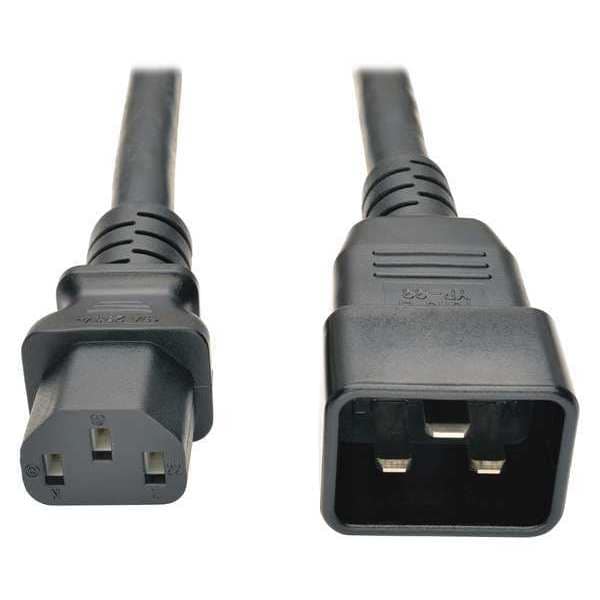

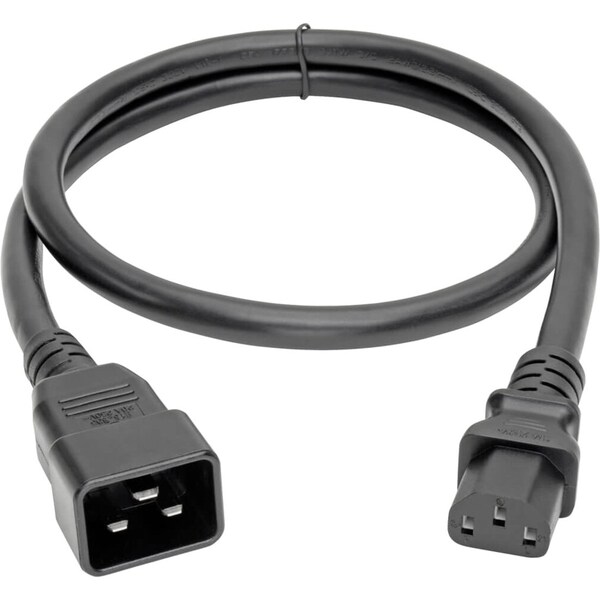

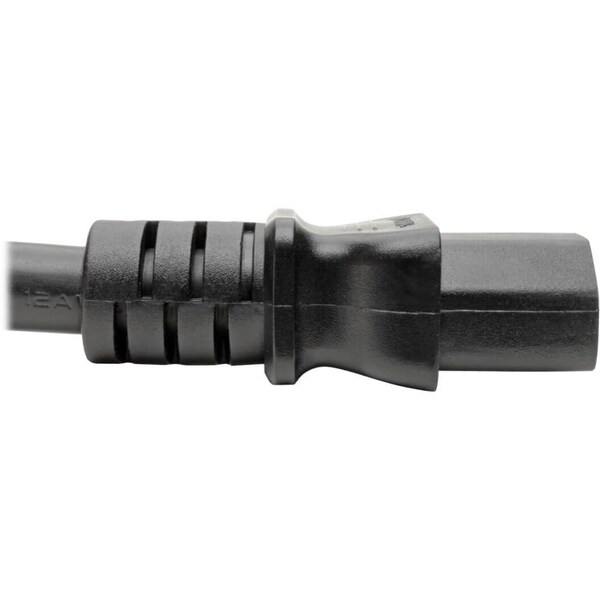

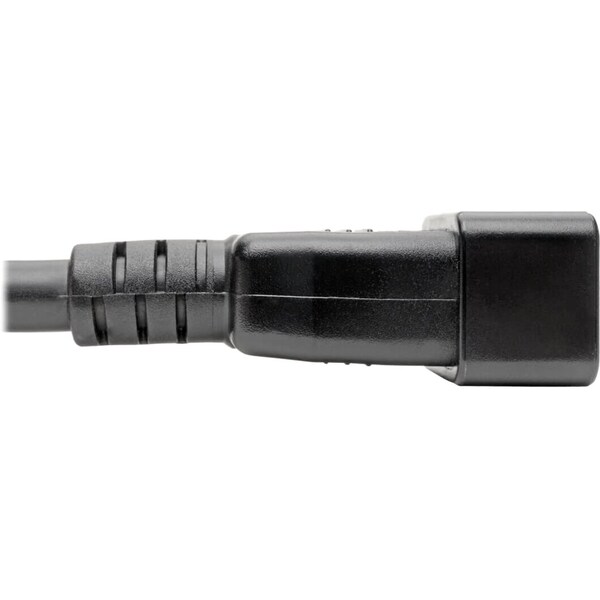

Power Cord, HD, C20 to C13, 15A, 14AWG, 3ft
| Item | Power Cord,HD,C20 to C13,15A,14AWG,3ft |
|---|---|
| Cord Length | 3 ft |
| Voltage | 100-250V AC |
| Wire Size | 14 AWG |
| Number of Conductors | 3 |
| Max. Amps | 15 |
| NEC Cord Designation | SJTW |
| Description/Special Features | High Voltage |
| Color | Black |
| Voltage Rating | 230 V AC, 120 V AC |
| End 1 Connection Type | IEC-320-C20 |
| End 2 Connection Type | IEC-320-C13 |
| Product Color | Black |
| Second End Connector Detail | 1 x IEC 60320 C13 |
| Current Rating | 15 A |
| Product Type | Power Extension Cord |
| Product Name | P032-003 Power Extension Cord |
| Device Supported | Network Device, Server, Computer, UPS, PDU |
| First End Connector Detail | 1 x IEC 60320 C20 |
| Side B - Connector 1 | IEC-320-C13 |
| Cable Outer Diameter (OD) | 9.3 mm |
| Maximum Input Amps | 15 |
| Cable Length (ft.) | 3 |
| Power Cord Jacket Type | SJTW |
| Wire Gauge (AWG) | 14 |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Product Certifications | UL Listed, cUL Listed |
| Package Includes | P032-003 C20 to C13 Power Cable for Computer, 3 ft., Black |
| Voltage Compatibility (VAC) | 100-250 |
| Cable Jacket Material | PVC |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Storage Humidity Range | 10% to 65% RH |
| Plug Color | Black |
| Cable Jacket Color | Black |
| Operating Humidity Range | 10% to 65% RH |
| Side A - Connector 1 | IEC-320-C20 |
| Device Compatibility | PDU, UPS, Server, Computer, HDTV, Monitor |
| High Voltage | Yes |
| Cable Jacket Rating | VW-1 |
| Package Quantity | 1 |
