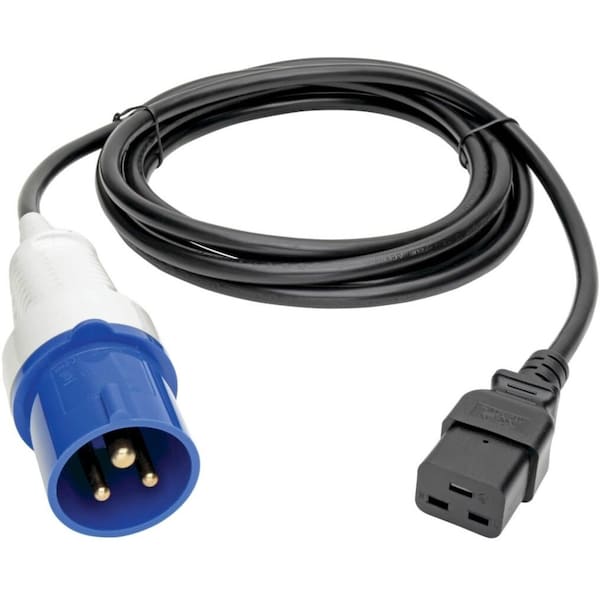

Power Cord, HD, IEC309 to C19, 16A, 10ft
| Item | Power Cord,HD,IEC309 to C19,16A,10ft |
|---|---|
| Max. Amps | 16 |
| Number of Conductors | 3 |
| Cord Length | 10 ft |
| Wire Size | 16 AWG |
| Voltage | 250V AC |
| NEC Cord Designation | SJT |
| Description/Special Features | High Voltage |
| Color | Black |
| Voltage Rating | 250 V AC |

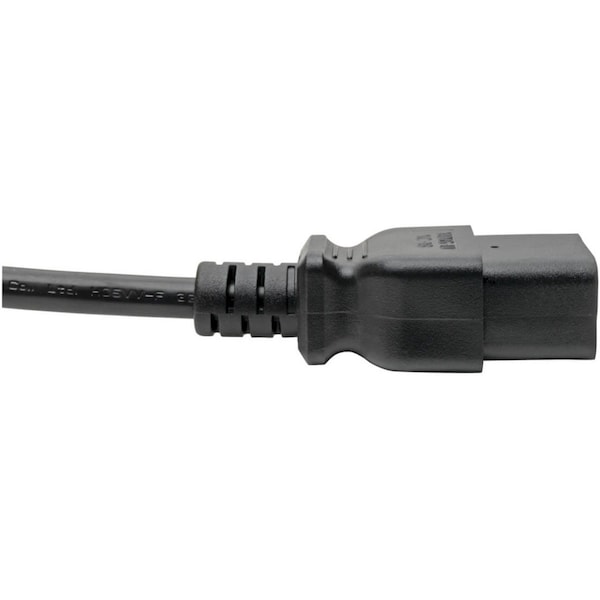

| End 1 Connection Type | IEC-320-C19 |
| End 2 Connection Type | IEC-309 16A 2P+E |
| First End Connector Detail | 1 x IEC 60320 C19 |
| Frequency | 50 Hz |
| Product Color | Black |
| Current Rating | 16 A |
| Product Name | P070-010 Standard Power Cord |
| Product Type | Standard Power Cord |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | VW-1 |
| Package Includes | P070-010 IEC 309 to C19, Heavy-Duty Extension Cord, 10-ft. (3.05 m), Black |
| Side A - Connector 1 | IEC-320-C19 |
| Storage Temperature Range | 14° to 140°F (-10° to 60°C) |
| Wire Gauge (AWG) | 16 |
| Product Compliance | CE (Europe); UKCA |
| Operating Humidity Range | Non-Condensing, 35% to 85% RH |
| Unit Dimensions (hwd / in.) | 12.8 x 8.9 x 0.5 |
| Product Certifications | UL Listed, cUL Listed |
| Cable Length (ft.) | 10 |
| Side B - Connector 1 | IEC-309 16A 2P+E |
| Operating Temperature Range | 14° to 140°F (-10° to 60°C) |
| Storage Humidity Range | Non-Condensing, 35% to 85% RH |
| Cable Jacket Color | Black |
| High Voltage | Yes |
| Power Cord Jacket Type | SJT |
| Maximum Input Amps | 16 |
| Device Compatibility | PDU, UPS, Server, Network Switch, Router |
| Cable Outer Diameter (OD) | 8.4 mm |
| Voltage Compatibility (VAC) | 250 |
| Plug Color | Blue, White |
| Package Quantity | 1 |
