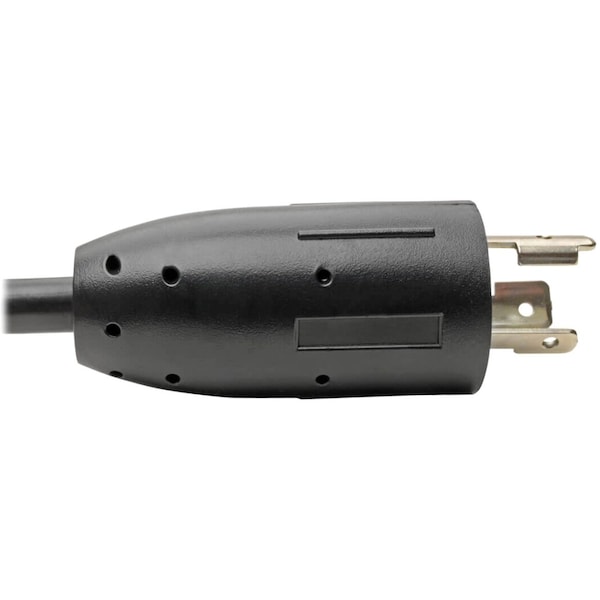

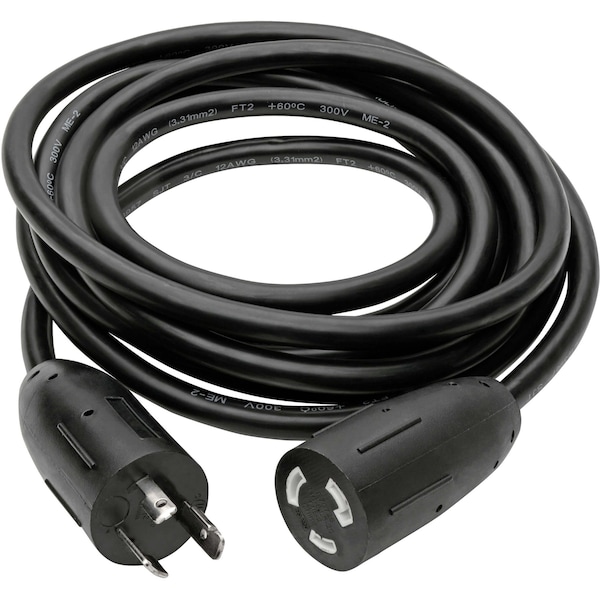

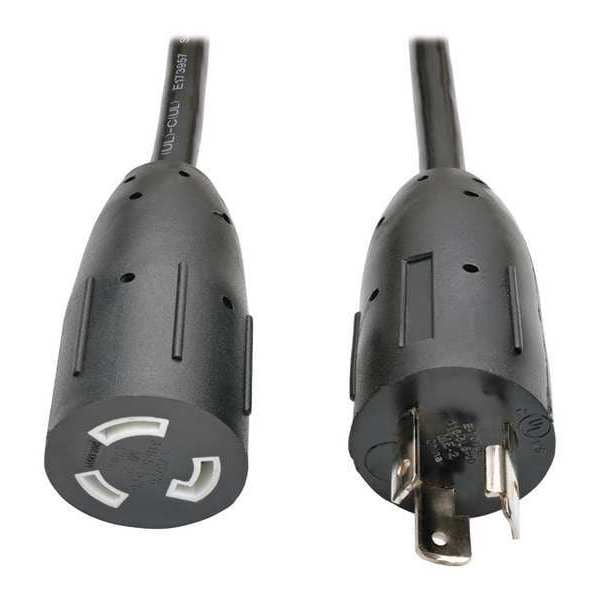

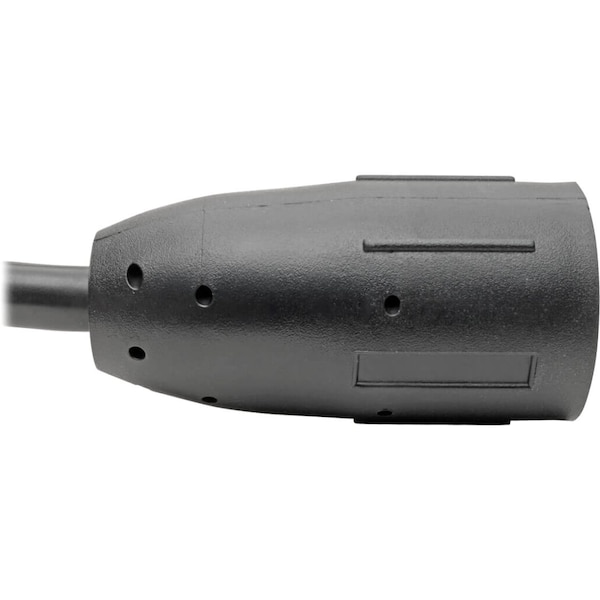

Power Cord, HD, L5-20P, Lock, 20A, 12AWG, 15ft
| Item | Power Cord,HD,L5-20P,Lock,20A,12AWG,15ft |
|---|---|
| Cord Length | 15 ft |
| Voltage | 125V AC |
| Wire Size | 12 AWG |
| Number of Conductors | 3 |
| Max. Amps | 20 |
| NEC Cord Designation | SJT |
| Description/Special Features | Locking Plug |
| Voltage Rating | 125 V AC |
| Color | Black |
| End 2 Connection Type | NEMA L5-20R |
| End 1 Connection Type | NEMA L5-20P |
| Product Name | P046-015-LL Power Extension Cord |
| Product Color | Black |
| Product Type | Power Extension Cord |
| Second End Connector Detail | 1 x NEMA L5-20R Female |
| Current Rating | 20 A |
| First End Connector Detail | 1 x NEMA L5-20P Male |
| Cable Length (ft.) | 15 |
| Wire Gauge (AWG) | 12 |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Cable Jacket Color | Black |
| Voltage Compatibility (VAC) | 125 |
| Operating Humidity Range | 10% to 65% RH |
| Cable Jacket Rating | VW-1 |
| Side A - Connector 1 | NEMA L5-20P |
| Storage Humidity Range | 10% to 65% RH |
| Side B - Connector 1 | NEMA L5-20R |
| Product Certifications | UL Listed, cUL Listed |
| Power Cord Jacket Type | SJT |
| Cable Outer Diameter (OD) | 11 mm |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Package Includes | P046-015-LL L5-20P to L5-20R Heavy-Duty Extension Cord, 15-ft. (4.57 m), Black, Locking Connectors |
| Plug Color | Black |
| Cable Jacket Material | PVC |
| Maximum Input Amps | 20 |
| Device Compatibility | PDU, UPS, Server, Computer, HDTV, Monitor |
| Locking Plug | Yes |
| Package Quantity | 1 |
