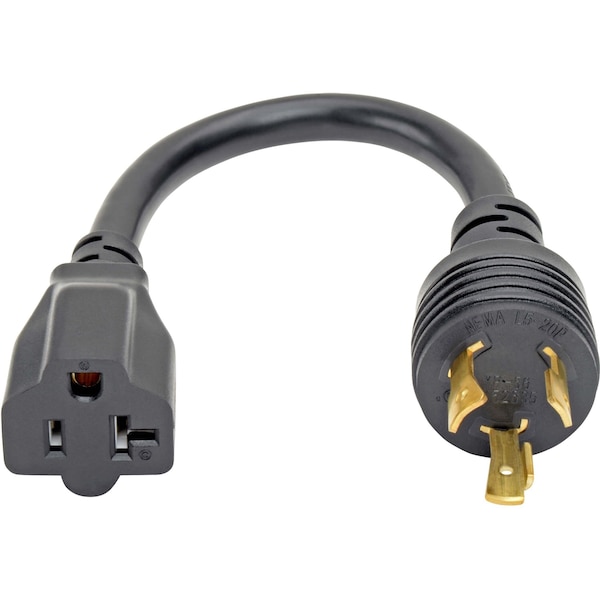

Power Cord, HD, L5-20P, Lock, 20A, 12AWG, 6"
| Item | Power Supply Cord |
|---|---|
| Cord Length | 6 in |
| Voltage | 125V AC |
| Wire Size | 12 AWG |
| Number of Conductors | 3 |
| Max. Amps | 20 |
| NEC Cord Designation | SJT |
| Description/Special Features | Locking Plug |
| Voltage Rating | 120 V AC |
| Color | Black |
| End 1 Connection Type | NEMA L5-20P |
| End 2 Connection Type | NEMA 5-15/20R |
| Current Rating | 20 A |

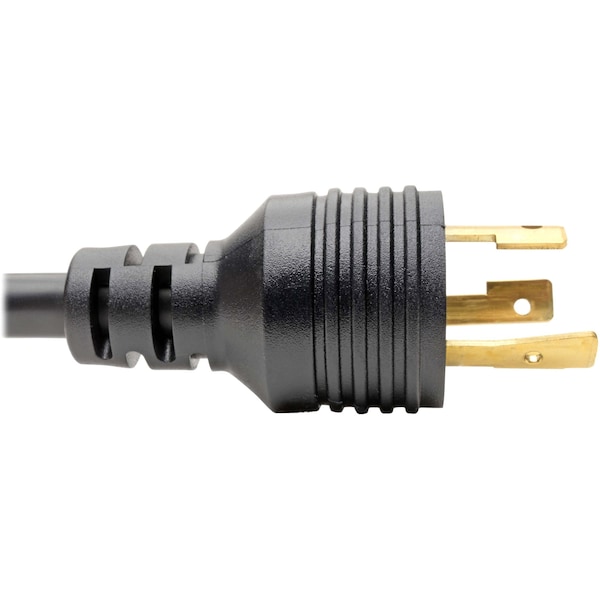

| First End Connector Detail | 1 x 3-pin NEMA L5-20P Male |
| Product Name | Adapter Cord |
| Product Color | Black |

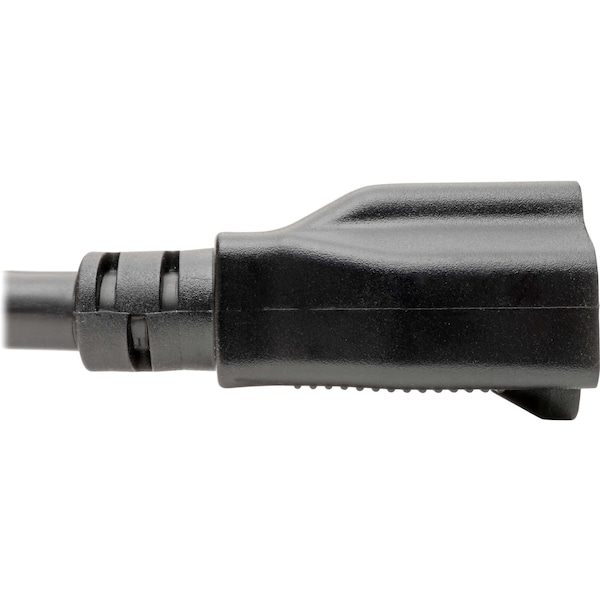

| Second End Connector Detail | 1 x 3-pin NEMA 5-15/20R Female |
| Cable Jacket Material | PVC |
| Package Includes | P046-06N-T L5-20P to 5-15R, L5-20P to 5-20R, Heavy-Duty Power Adapter, 6 in., Black |
| Locking Plug | Yes |
| Power Cord Jacket Type | SJT |
| Operating Temperature Range | 14° to 140°F (-10° to 60°C) |
| Storage Humidity Range | Non-Condensing, 35% to 85% RH |
| Operating Humidity Range | Non-Condensing, 35% to 85% RH |
| Device Compatibility | PDU, UPS, Server, Computer, HDTV, Monitor |
| Cable Length (ft.) | 0.5 |
| Product Certifications | UL Listed, cUL Listed |
| Wire Gauge (AWG) | 12 |
| Side B - Connector 1 | NEMA 5-15/20R |
| Cable Jacket Rating | VW-1 |
| Cable Outer Diameter (OD) | 11.2 mm |
| Maximum Input Amps | 20 |
| Cable Jacket Color | Black |
| Voltage Compatibility (VAC) | 125 |
| Plug Color | Black |
| Side A - Connector 1 | NEMA L5-20P |
| Storage Temperature Range | 14° to 140°F (-10° to 60°C) |
| Package Quantity | 1 |
