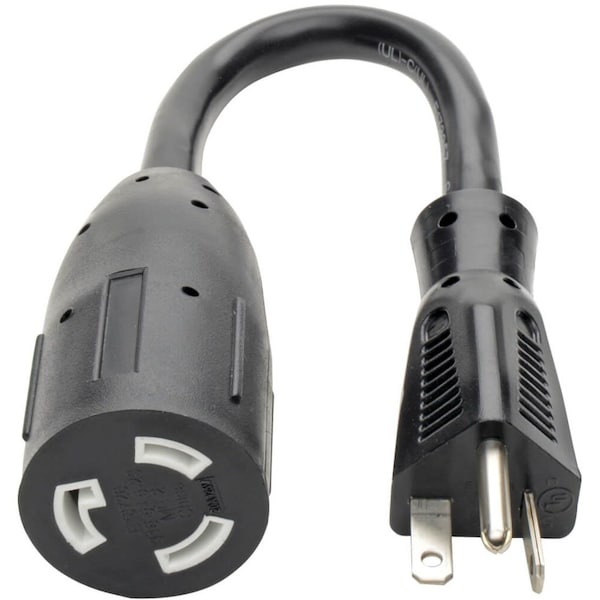

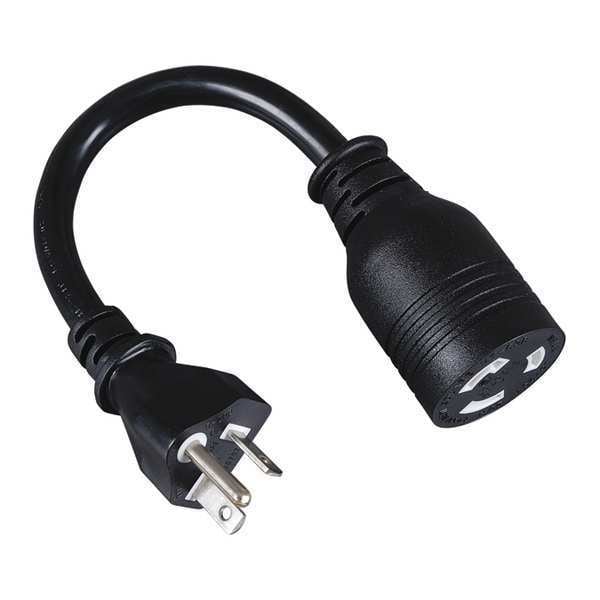

Power Cord, HD, L5-20R, 5-20P, 20A, 12AWG, 6"
| Item | Power Supply Cord |
|---|---|
| Max. Amps | 20 |
| Number of Conductors | 3 |
| Cord Length | 6 in |
| Wire Size | 12 AWG |
| Voltage | 120V AC |
| Description/Special Features | Locking Plug |
| NEC Cord Designation | SJT |
| Color | Black |
| End 1 Connection Type | NEMA 5-20P |
| End 2 Connection Type | NEMA L5-20R |
| Product Name | P044-06I Power Adapter Cable |
| Product Color | Black |
| Package Contents | P044-06I Power Adapter Cable, P044-06I 5-20P to L5-20R 6-Inch Adapter Cable |
| Device Supported | Power Adapter |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Maximum Input Amps | 20 |
| Cable Outer Diameter (OD) | 11 mm |
| Product Certifications | UL Listed, cUL Listed |
| Side B - Connector 1 | NEMA L5-20R |
| Cable Jacket Rating | VW-1 |
| Power Cord Jacket Type | SJT |
| Plug Color | Black |
| Cable Jacket Material | PVC |
| Side A - Connector 1 | NEMA 5-20P |
| Voltage Compatibility (VAC) | 125 |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Device Compatibility | PDU, UPS, Server |
| Storage Humidity Range | 10% to 65% RH |
| Cable Length (ft.) | 0.72 |
| Cable Jacket Color | Black |
| Operating Humidity Range | 10% to 65% RH |
| Wire Gauge (AWG) | 12 |
| Package Includes | P044-06I L5-20R to 5-20P Heavy-Duty Power Adapter, 8.66 in., Black |
| Package Quantity | 1 |
