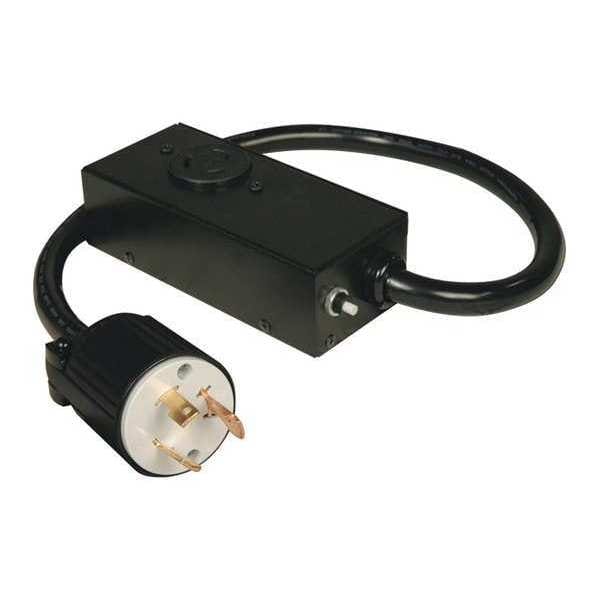

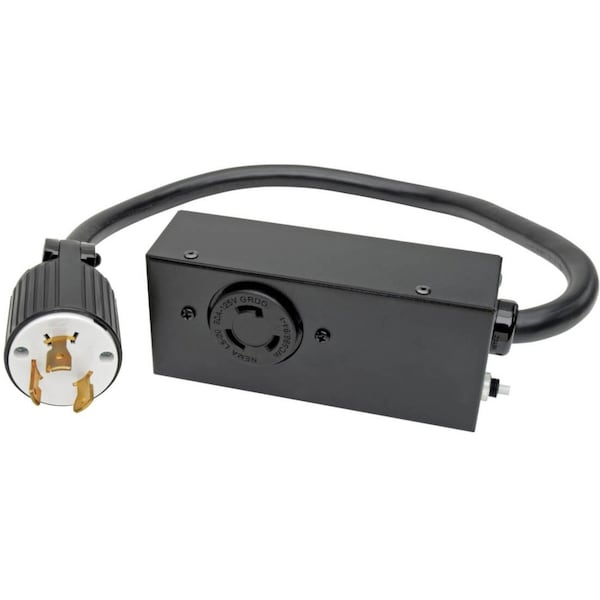

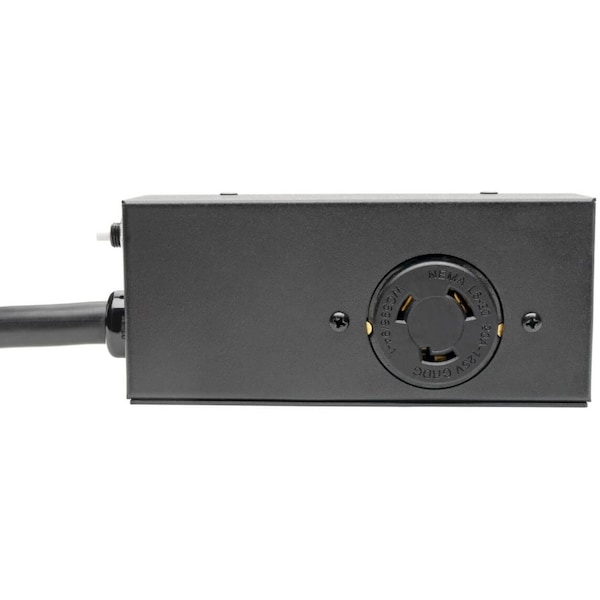

Power Cord, HD, L5-30P/20R, 20A, 10AWG, 2ft
| Item | Power Cord,HD,L5-30P/20R,20A,10AWG,2ft |
|---|---|
| Cord Length | 2 ft |
| Voltage | 120V AC |
| Wire Size | 10 AWG |
| Number of Conductors | 3 |
| Max. Amps | 20 |
| NEC Cord Designation | SJT |
| Description/Special Features | Locking Plug |
| Color | Black |
| End 1 Connection Type | NEMA L5-30P |
| End 2 Connection Type | NEMA L5-20R |
| Product Type | Power Extension Cord |
| Product Color | Black |
| Product Name | 2FT L5-30P TO L5-20R Power Extension Cable |
| Package Contents | 2FT L5-30P TO L5-20R Power Extension Cable, 2-ft. L5-30P to L5-20R Power Adapter Cable |
| Voltage Compatibility (VAC) | 120 |
| Locking Plug | Yes |
| Power Cord Jacket Type | SJT |
| Cable Jacket Material | PVC |
| Cable Outer Diameter (OD) | 14.6 mm |
| Storage Humidity Range | Non-Condensing, 35% to 85% RH |
| Maximum Input Amps | 20 |
| Package Includes | P043-002 L5-30P to L5-20R Extension Cord with Breaker, 2-ft. (0.61 m), Black |
| Operating Humidity Range | Non-Condensing, 35% to 85% RH |
| Operating Temperature Range | 14° to 140°F (-10° to 60°C) |
| Product Certifications | UL Listed, cUL Listed |
| Storage Temperature Range | 14° to 140°F (-10° to 60°C) |
| Cable Length (ft.) | 2 |
| Side A - Connector 1 | NEMA L5-30P |
| Cable Jacket Color | Black |
| Device Compatibility | PDU, UPS |
| Plug Color | Black |
| Wire Gauge (AWG) | 10 |
| Cable Jacket Rating | VW-1 |
| Side B - Connector 1 | NEMA L5-20R |
| Package Quantity | 1 |
