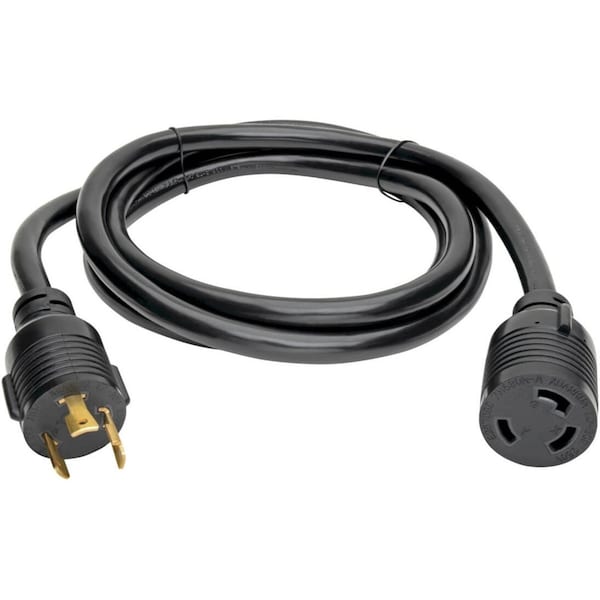

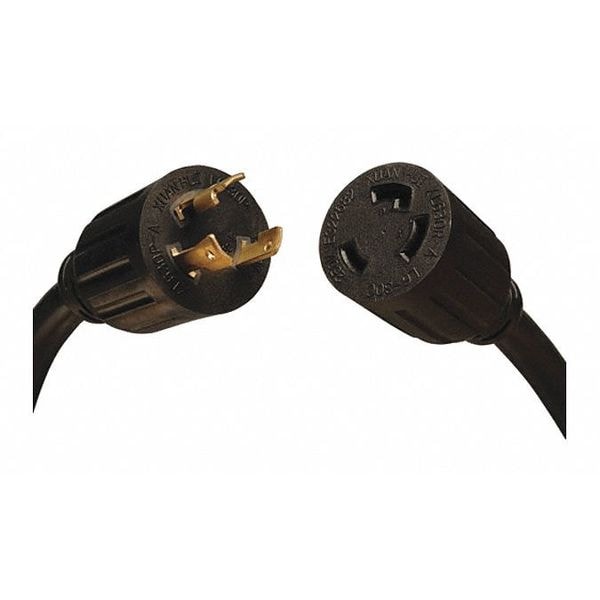

Power Cord, HD, L6-30P/R, 30A, 10AWG, 8ft
| Item | Power Cord,HD,L6-30P/R,30A,10AWG,8ft |
|---|---|
| Max. Amps | 30 |
| Number of Conductors | 3 |
| Cord Length | 8 ft |
| Wire Size | 10 AWG |
| Voltage | 250V AC |
| Description/Special Features | High Voltage; Locking Plug |
| NEC Cord Designation | SJT |
| Color | Black |
| Voltage Rating | 250 V AC |

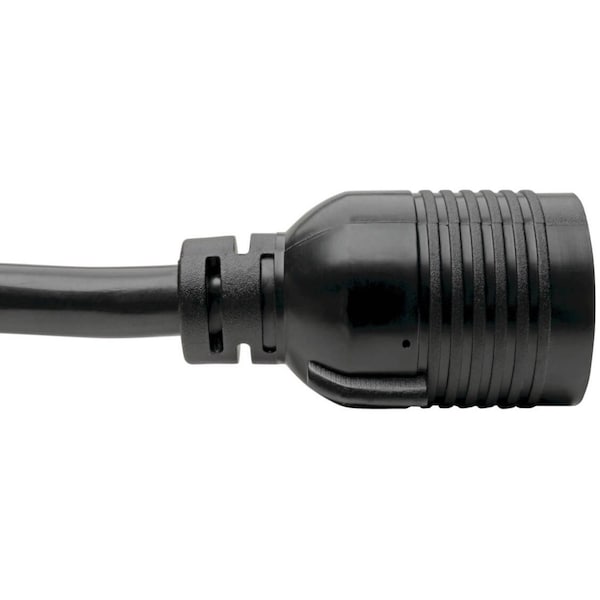

| End 2 Connection Type | NEMA L6-30R |

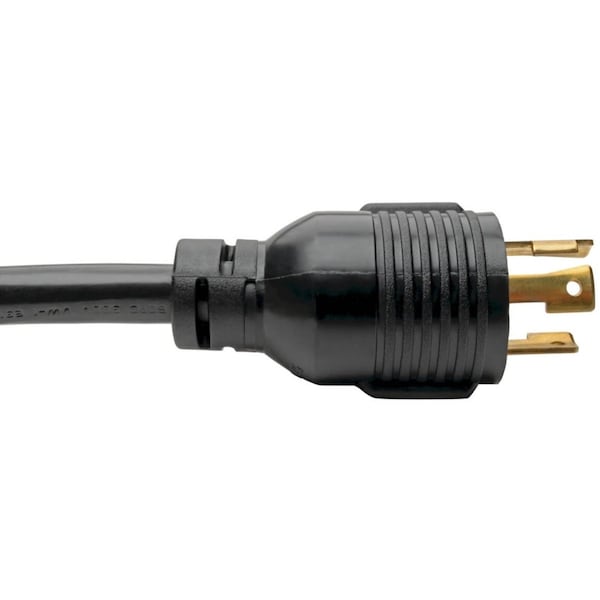

| End 1 Connection Type | NEMA L6-30P |
| Current Rating | 30 A |
| Product Color | Black |
| Frequency | 50 Hz |
| Product Name | P041-008 Power Extension Cord |
| First End Connector Detail | 1 x NEMA L6-30P |
| Second End Connector Detail | 1 x NEMA L6-30R |
| Storage Humidity Range | 20% to 80% RH |
| Cable Length (ft.) | 8 |
| High Voltage | Yes |
| Power Cord Jacket Type | SJT |
| Locking Plug | Yes |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Package Includes | P041-008 L6-30P to L6-30R Heavy-Duty Extension Cord, 8-ft. (2.43 m), Black |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Plug Color | Black |
| Side B - Connector 1 | NEMA L6-30R |
| Maximum Input Amps | 30 |
| Wire Gauge (AWG) | 10 |
| Cable Jacket Rating | FT2 |
| Operating Humidity Range | 20% to 70% RH |
| Voltage Compatibility (VAC) | 100-250 |
| Cable Jacket Material | PVC |
| Side A - Connector 1 | NEMA L6-30P |
| Device Compatibility | PDU, UPS, Server, Network Switch, Router |
| Product Certifications | UL Listed, cUL Listed |
| Cable Jacket Color | Black |
| Cable Outer Diameter (OD) | 15 mm |
| Package Quantity | 1 |
