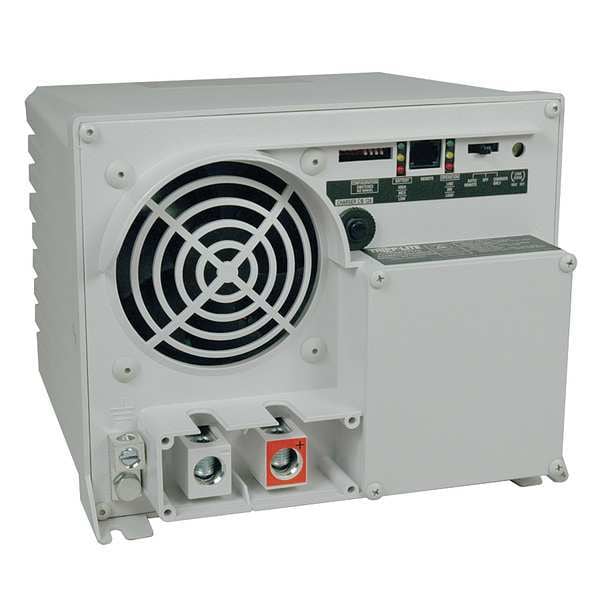

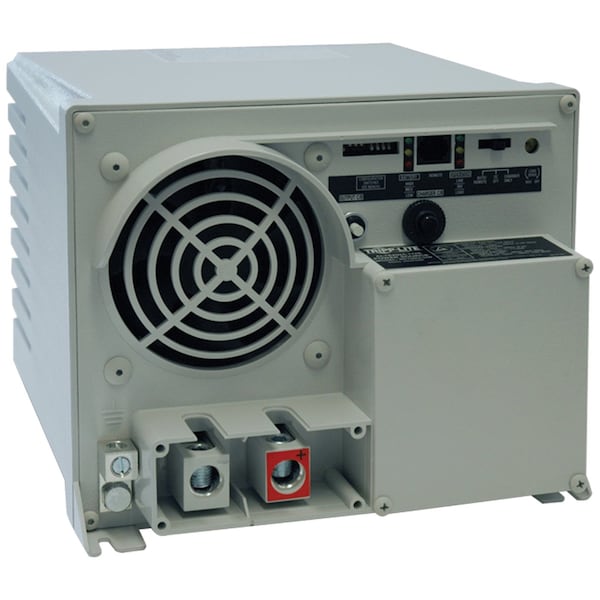

Power Inverter and Battery Charger, Modified Sine Wave, 2,500 W Peak, 1,250 W Continuous, 1 Outlets
| Item | Power Inverter and Battery Charger |
|---|---|
| Peak Output Power | 2,500 W |
| Continuous Output Power | 1,250 W |
| Inverter Output Form | Modified Sine Wave |
| Inverter Input Voltage | 12V DC; 120V AC |
| Inverter Output Voltage | 120V AC |
| Outlet Type | Hardwired |
| DC Connection | Battery Cables |
| Number of Outlets | 1 |
| Standards | CSA, UL458 |
| Case Material | Polycarbonate |
| Depth | 8-3/4 in |
| Charger Output Amps | 55 A |
| Charger Output Voltage | 120V |
| Automatic/Manual | Automatic |
| Nominal Output Power | 1,250 W |
| Charger Depth | 9 in |
| Inverter Width | 8.7 in |
| Features | Automatic Overload and Thermal Shutoff Safely Turns Off Inverter as Excessive Loads or Overheating Conditions Develop, Front Panel Remote Control Connector Enables Remote Off/on Switching (Requires Apsrm4 Switch Accessory), Grounding Lug Properly Connects the Inverter/Charger System to Earth Ground or Vehicle Grounding System |
| Application | Automotive |
| Height | 9 in |
| Inverter Height | 7 in |
| Inverter Depth | 9 in |
| Charger Height | 7 in |
| Charger Input Voltage | 120 V AC |
| Max. Input Current | Full continuous load - 95 A at 12V DC; 20 A at 120V AC with full inverter and charger load |
| Width | 7 in |
| Charger Width | 8.8 in |
| Inveter Output Voltage | 120V |
| Output Frequency | 60 Hz |
| Output Voltage | 115VAC |
| Charger Input Current | 9.3 A |
| Input Voltage | 12VDC |
| Charger Output Current | 55 A |
| Charger DxWxH | 9 in x 8.8 in x 7 in |
| Maximum Frequency | 60 Hz |
| Product Line | PowerVerter |
| Package Contents | PowerVerter RV1250ULHW 1250W Inverter, Instruction Manual |
| Product Color | Gray |
| Certifications & Standards | UL458, CSA |
| Product Name | PowerVerter RV1250ULHW 1250W Inverter |
| Unit Dimensions (hwd / in.) | 7 x 8.75 x 9 |
| LVC (Low Voltage Cut-Off) | 10VDC +/-3% |
| Product Certifications | UL 458, CSA |
| Nominal Output Voltage(s) Supported | 120 V |
| Front Panel LEDs | Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences. |
| Package Includes | RV1250ULHW Inverter/Charger;Instruction manual with warranty information |
| AC Suppression Joule Rating | 600 |
| Nominal Input Voltage(s) Supported | 120V AC |
| Load Sensing | Optional load sense function enables automatic inverter shutoff and startup as connected equipment is powered off and on. Front panel load sense potentiometer can be set to shutoff or turn on inverter power in response to loads of any level. |
| Frequency Compatibility | 60 Hz |
| Overload Protection | Includes 12A input breaker dedicated to the charging system and 20A output breaker for AC output loads |
| Transfer Time (Line Power to Battery Mode) | 16.6 milliseconds (typical - compatible with many computers - verify transfer time compatibility of loads for UPS applications) |
| High Voltage Transfer to Battery Power | In AC "auto" mode, inverter/charger switches to battery mode as line voltage increases to 135V (user adjustable to 145 - see manual) |
| Low Voltage Transfer to Battery Power | In AC "auto" mode, inverter/charger switches to battery mode as line voltage drops to 75V (user adjustable to 85, 95, 105V - see manual) |
| Voltage Compatibility (VDC) | 12 |
| Input Cord Length Details | DC INPUT: User supplies cabling. 4 gauge or larger (see manual). AC INPUT: hardwire |
| Recommended Electrical Service | DC INPUT: Requires 12V DC input source capable of delivering 95A for the required duration (when used at full continuous capacity - DC requirements increase during Over-Power and Double-Boost operation). For automotive applications, professional hardwire |
| Output Frequency Regulation | 60 Hz (+/- 0.3 Hz) |
| Voltage Compatibility (VAC) | 120 |
| Material of Construction | Polycarbonate |
| Battery Pack Accessory (Optional) | 98-121 sealed lead acid battery (optional) |
| Expandable Runtime | Yes |
| Output Voltage Regulation | LINE POWER (AC): Maintains 120V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains PWM sine wave output voltage of 120 V AC (+/-5%). |
| Switches | 3-position on/off/remote switch enables simple on/off power control plus auto/remote setting that enables distant on/off control of the inverter system when used in conjunction with APSRM4 accessory (sold separately) in inverter mode. |
| Maximum Input Amps / Watts | DC INPUT: Full continuous load - 95A at 12V DC. AC INPUT: 20 amps at 120V AC with full inverter and charger load (12A max charger-only / combined input load to support charger and AC output is automatically controllable to 66%-33%-0% based on AC output lo |
| DC System Voltage (VDC) | 12 |
| Form Factors Supported | Mounting slots enable permanent placement of inverter on any horizontal surface |
| Output Receptacles | Hardwire |
| Relative Humidity | 0%-95% Non-Condensing |
| Battery Charge | 14A / 55A (selectable) |
| Cooling Method | Fan |
| Package Quantity | 1 |
