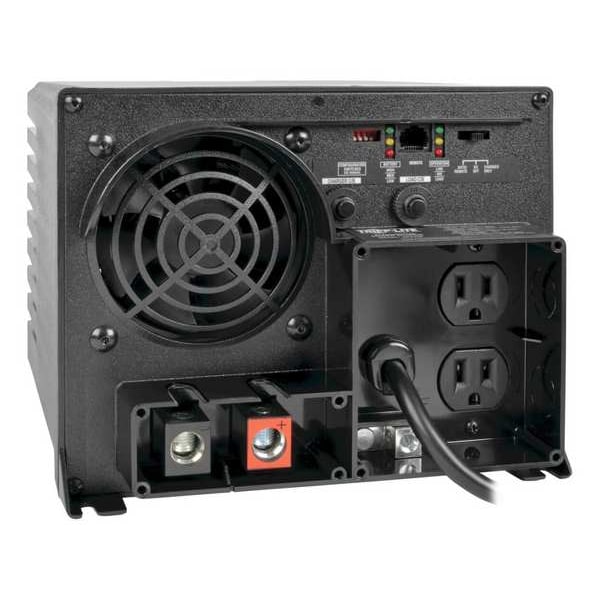

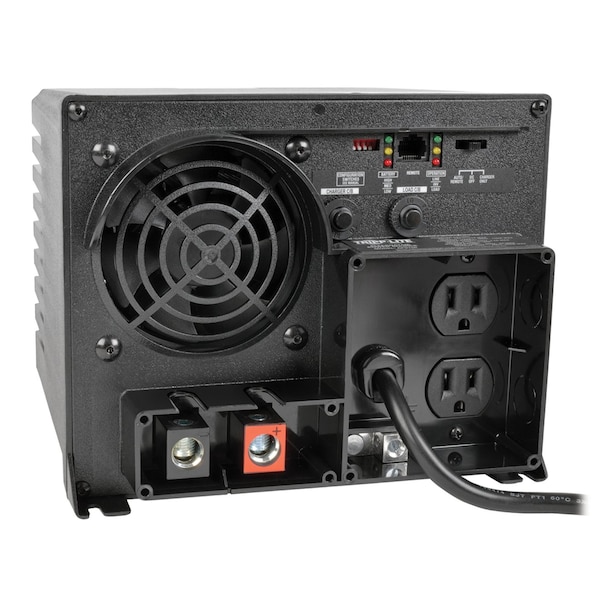

Power Inverter and Battery Charger, Modified Sine Wave, 2,500 W Peak, 1,250 W Continuous, 2 Outlets
| Item | Power Inverter and Battery Charger |
|---|---|
| Peak Output Power | 2,500 W |
| Continuous Output Power | 1,250 W |
| Inverter Output Form | Modified Sine Wave |
| Inverter Input Voltage | 12V DC; 120V AC |
| Inverter Output Voltage | 120V AC |
| Outlet Type | Standard 3-Prong Outlet |
| DC Connection | Bolt Down Terminals |
| Number of Outlets | 2 |
| Case Material | Polycarbonate |
| Width | 8-3/4 in |
| Charger Output Amps | 30 A |
| Automatic/Manual | Automatic |
| Inverter Height | 7 in |
| Depth | 9 in |
| Features | Automatic Transfer Switching, Emergency and Remote Sites, Front Panel Leds, Meets Normal and Peak Power Demands, Optional Remote Control Capability, Reliable Power for Mobile, Rugged Polycarbonate Housing |
| Charger Width | 8.8 in |
| Charger Output Voltage | 120V |
| Inverter Width | 8.7 in |
| Charger Depth | 9 in |
| Height | 7 in |
| Charger Height | 7 in |
| Charger Input Voltage | 120 V AC |
| Max. Input Current | Full continuous load - 127 A at 12V DC; 12 A at 120V AC with full inverter and charger load |
| Application | Powering Tools; Saws; Motors; Pumps; Portable Lighting; Appliances and Computer Equipment in Heavy-Load Conditions |
| Inverter Depth | 9 in |
| Nominal Output Power | 1,250 W |
| Inveter Output Voltage | 120V AC |
| Output Frequency | 60 Hz |
| Output Voltage | 115VAC |
| Charger Input Current | 6.3 A |
| Input Voltage | 12VDC |
| Charger Output Current | 30 A |
| Product Line | PowerVerter |
| Maximum Frequency | 60 Hz |
| Package Contents | PowerVerter APS 1250W Inverter, APS1250 Inverter/Charger, Instruction manual with warranty information |
| Product Color | Black |
| Product Name | PowerVerter APS 1250W Inverter |
| Product Series | APS |
| Protection Type | Overload Protection |
| Maximum Input Amps / Watts | DC INPUT: Full continuous load - 127A at 12V DC. AC INPUT: 12 amps at 120VAC with full inverter and charger load (6.3A max charger-only) |
| Voltage Compatibility (VAC) | 120 |
| Recommended Electrical Service | DC INPUT: Requires 12VDC input source capable of delivering 125A for the required duration (when used at full continuous capacity - DC requirements increase during OverPower and DoubleBoost operation). For automotive applications, professional hardwire installation with 225A minimum battery system fusing is recommended. AC INPUT: 120VAC |
| Battery Pack Accessory (Optional) | 98-121 sealed lead acid battery (optional) |
| Nominal Output Voltage(s) Supported | 120 V |
| Transfer Time (Line Power to Battery Mode) | 16.6 milliseconds (typical - compatible with many computers, servers and networking equipment - verify transfer time compatibility of loads for UPS applications) |
| DC System Voltage (VDC) | 12 |
| Output Receptacles | 5-15R |
| Expandable Runtime | Yes |
| Switches | 3 position on/off/remote switch enables simple on/off power control plus "auto/remote" setting that enables distant on/off control of the inverter system when used in conjunction with optional APSRM4 accessory when used in inverter mode. In AC uninterruptible power mode, auto/remote setting enables automatic transfer from line power to battery power - to maintain continuous AC power to connected loads. |
| Frequency Compatibility | 60 Hz |
| Low Voltage Transfer to Battery Power | In AC "auto" mode, inverter/charger switches to battery mode as line voltage drops to 75V (user adjustable to 85, 95, 105V - see manual) |
| Package Includes | APS1250 1250W PowerVerter APS 12V DC 120V AC Inverter/Charger;Owner's manual |
| Form Factors Supported | Mounting slots enable permanent placement of inverter on any horizontal surface |
| Battery Charge | 30A max, 3 step, float for long term maintenance |
| Output Voltage Regulation | LINE POWER (AC): Maintains 120V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains PWM sine wave output voltage of 120 V AC (+/-5%). |
| Overload Protection | Includes 8A input breaker dedicated to the charging system and 12A output breaker for AC output loads |
| Output Frequency Regulation | 60 Hz (+/- 0.3 Hz) |
| Unit Dimensions (hwd / in.) | 7 x 8.75 x 9 |
| Relative Humidity | 0%-95% Non-Condensing |
| Material of Construction | Polycarbonate |
| High Voltage Transfer to Battery Power | In AC "auto" mode, inverter/charger switches to battery mode as line voltage increases to 135V (user adjustable to 145 - see manual) |
| Receptacle Color | Black |
| Front Panel LEDs | Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences. |
| Voltage Compatibility (VDC) | 12 |
| Nominal Input Voltage(s) Supported | 120V AC |
| AC Suppression Joule Rating | 450 |
| Cooling Method | Fan |
| Package Quantity | 1 |
