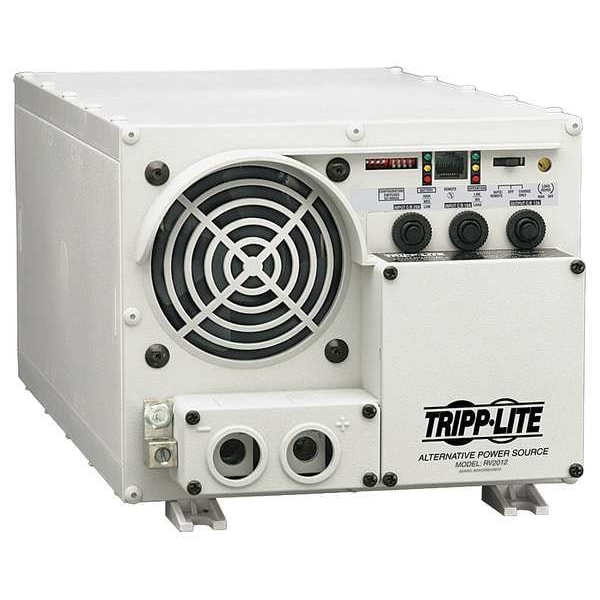

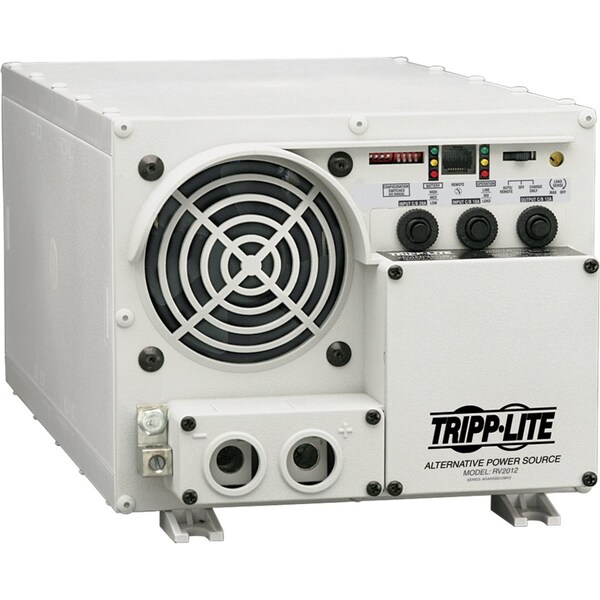

Power Inverter and Battery Charger, Modified Sine Wave, 3,000 W Peak, 1,500 W Continuous, 1 Outlets
| Item | Power Inverter and Battery Charger |
|---|---|
| Peak Output Power | 3,000 W |
| Continuous Output Power | 1,500 W |
| Inverter Output Form | Modified Sine Wave |
| Inverter Input Voltage | 12V DC; 120V AC |
| Inverter Output Voltage | 120V AC |
| Outlet Type | Hardwired |
| DC Connection | Bolt Down Terminals |
| Number of Outlets | 1 |
| Standards | CSA, UL458 |
| Case Material | Polycarbonate |
| Application | Automotive |
| Charger Output Amps | 75 A |
| Charger Output Voltage | 120V |
| Charger Height | 8 in |
| Charger Input Voltage | 120 V AC |
| Charger Depth | 17-1/2 in |
| Width | 17-1/2 in |
| Depth | 8 in |
| Max. Input Current | Full continuous load - 145 A at 12V DC; 35 A at 120V AC with full inverter and charger load |
| Features | Automatic Overload and Thermal Shutoff Safely Turns Off Inverter as Excessive Loads or Overheating Conditions Develop, Front Panel Remote Control Connector Enables Remote Off/on Switching (Requires Apsrm4 Switch Accessory), Grounding Lug Properly Connects the Inverter/Charger System to Earth Ground or Vehicle Grounding System |
| Charger Width | 10-1/2 in |
| Inverter Height | 8 in |
| Inverter Depth | 17-1/2 in |
| Nominal Output Power | 1,500 W |
| Automatic/Manual | Automatic |
| Inverter Width | 10-1/2 in |
| Height | 10-1/2 in |
| Inveter Output Voltage | 120V |
| Output Frequency | 60 Hz |
| Output Voltage | 115VAC |
| Charger Input Current | 15 A |
| Charger DxWxH | 17-1/2 in x 10-1/2 in x 8 in |
| Charger Output Current | 75 A |
| Input Voltage | 12VDC |
| Certifications & Standards | UL458, cUL (Canada) |
| Input Voltage Range | 10 DC to 15 V DC |
| Product Series | APS |
| Compatibility | Connect to an RV, conversion van or boat electrical system to run 120V AC home entertainment equipment, power tools, computers, appliances and more. |
| Additional Information | AC Output: 120 VAC nominal, DC Charger Output: 12 VDC nominal, DC Input: Requires 12 VDC input source capable of delivering 145 A, AC Input: 120 VAC, AC Input connection type: Hardwire, DC Input connection type: Set of 2 DC bolt-down terminals, AC surge suppression: 450 joules AC, Cooling method: Fan, Low voltage transfer to battery power: User configurable to 75V, 85V, 95V & 105V, High voltage transfer to battery power: User configurable to 135V, 145V, Moisture-resistant components for marine use or wet climates, Temperature-sensitive charging and automatic generator-start capabilities, Advanced 3-stage battery charger and selector switch for gel or wet cell batteries, Allows unlimited runtime capability by allowing the use any number of user-supplied batteries, Overload protection: Includes 25 A input breaker dedicated to the charging system and 20 A output load breaker |
| Maximum Frequency | 60 Hz |
| Product Line | PowerVerter |
| Package Contents | APS PowerVerter RV RV1512UL Power Inverter With Charger, RV1512UL Inverter/Charger, Instruction manual with warranty information |
| Product Color | Gray |
| Product Name | APS PowerVerter RV RV1512UL Power Inverter With Charger |
| Battery Pack Accessory (Optional) | 98-121 sealed lead acid battery (optional) |
| Low Voltage Transfer to Battery Power | In AC "auto" mode, inverter/charger switches to battery mode as line voltage drops to 75V (user adjustable to 85, 95, 105V - see manual) |
| Load Sensing | Optional load sense function enables automatic inverter shutoff and startup as connected equipment is powered off and on. Front panel load sense potentiometer can be set to shutoff or turn on inverter power in response to loads of any level, up to 150 watts. |
| High Voltage Transfer to Battery Power | In AC "auto" mode, inverter/charger switches to battery mode as line voltage increases to 135V (user adjustable to 145 - see manual) |
| Maximum Input Amps / Watts | DC INPUT: Full continuous load - 145A at 12V DC. AC INPUT: 35 amps at 120V AC with full inverter and charger load (15A max charger-only / combined input load to support charger and AC output is automatically controllable to 66%-33%-0% based on AC output l |
| DC System Voltage (VDC) | 12 |
| Package Includes | RV1512UL Inverter/Charger;Instruction manual with warranty information |
| Output Voltage Regulation | LINE POWER (AC): Maintains 120V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains PWM sine wave output voltage of 120 V AC (+/-5%). |
| Frequency Compatibility | 60 Hz |
| Relative Humidity | 0%-95% Non-Condensing |
| Output Frequency Regulation | 60 Hz (+/- 0.3 Hz) |
| Material of Construction | Polycarbonate |
| Form Factors Supported | Mounting slots enable permanent placement of inverter on any horizontal surface |
| Switches | 3-position on/off/remote switch enables simple on/off power control plus auto/remote setting that enables distant on/off control of the inverter system when used in conjunction with APSRM4 accessory (sold separately) in inverter mode. |
| Battery Charge | 19A / 75A (selectable) |
| Nominal Input Voltage(s) Supported | 120V AC |
| LVC (Low Voltage Cut-Off) | 10VDC +/-3% |
| Front Panel LEDs | Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences. |
| Overload Protection | Includes 25A input breaker dedicated to the charging system and 20A output load breaker |
| Unit Dimensions (hwd / in.) | 8 x 10.5 x 17.5 |
| Product Certifications | UL 458, CSA |
| Nominal Output Voltage(s) Supported | 120 V |
| AC Suppression Joule Rating | 450 |
| Expandable Runtime | Yes |
| Input Cord Length Details | DC INPUT: User supplies cabling. 0 gauge or larger (see manual). AC INPUT: hardwire |
| Voltage Compatibility (VAC) | 120 |
| Voltage Compatibility (VDC) | 12 |
| Recommended Electrical Service | DC INPUT: Requires 12V DC input source capable of delivering 145A for the required duration (when used at full continuous capacity - DC requirements increase during Over-Power and Double-Boost operation). For automotive applications, professional hardwire |
| Transfer Time (Line Power to Battery Mode) | 16.6 milliseconds (typical - compatible with many computers - verify transfer time compatibility of loads for UPS applications) |
| Output Receptacles | Hardwire |
| Cooling Method | Fan |
| Package Quantity | 1 |
