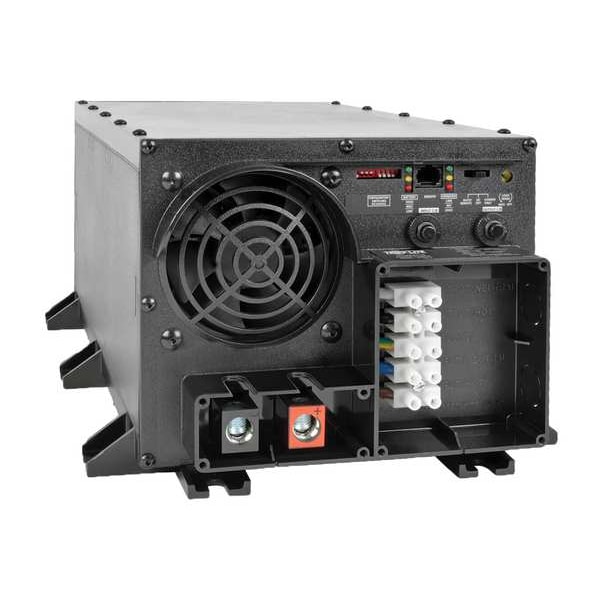

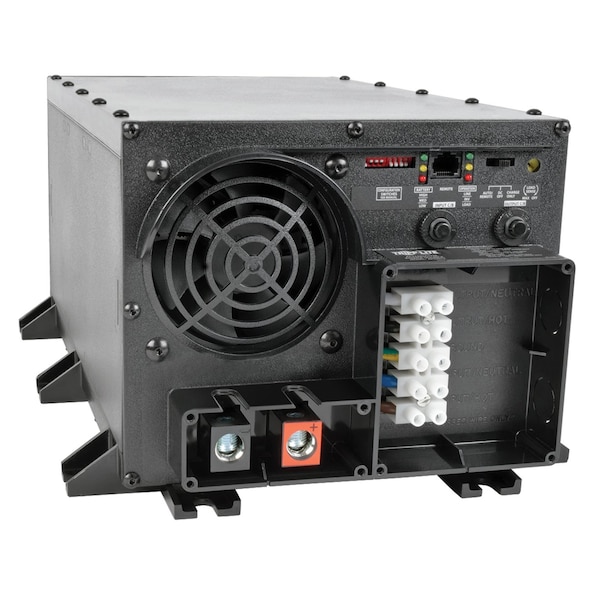

Power Inverter and Battery Charger, Modified Sine Wave, 4,000 W Peak, 2,000 W Continuous, 1 Outlets
| Item | Power Inverter and Battery Charger |
|---|---|
| Peak Output Power | 4,000 W |
| Continuous Output Power | 2,000 W |
| Inverter Output Form | Modified Sine Wave |
| Inverter Input Voltage | 12V DC; 120V AC |
| Inverter Output Voltage | 120V AC |
| Outlet Type | Hardwired |
| DC Connection | Bolt Down Terminals |
| Number of Outlets | 1 |
| Case Material | Polycarbonate |
| Charger Output Amps | 100 A |
| Inverter Width | 8-1/2 in |
| Max. Input Current | Full continuous load - 192 A at 12V DC; 38 A at 120V AC with full inverter and charger load |
| Charger Width | 8-1/2 in |
| Width | 16-1/4 in |
| Height | 8-1/2 in |
| Depth | 7-1/4 in |
| Charger Height | 7.3 in |
| Automatic/Manual | Automatic |
| Inverter Height | 7.3 in |
| Features | Automatic Transfer Switching, Emergency and Remote Sites, Front Panel Leds, Meets Normal and Peak Power Demands, Optional Remote Control Capability, Reliable Power for Mobile, Rugged Polycarbonate Housing |
| Application | Powering Tools; Saws; Motors; Pumps; Portable Lighting; Appliances and Computer Equipment in Heavy-Load Conditions |
| Nominal Output Power | 2,000 W |
| Charger Depth | 16.3 in |
| Charger Input Voltage | 120 V AC |
| Charger Output Voltage | 120V |
| Inverter Depth | 16.3 in |
| Inveter Output Voltage | 120V |
| Output Frequency | 60 Hz |
| Input Voltage | 12VDC |
| Charger DxWxH | 16.3 in x 8-1/2 in x 7.3 in |
| Charger Input Current | 21 A |
| Charger Output Current | 100 A |
| Output Voltage | 115VAC |
| Maximum Frequency | 60 Hz |
| Product Series | APS |
| Input Voltage Range | 10 DC to 15 V DC |
| Product Line | PowerVerter |
| Product Color | Black |
| Package Contents | PowerVerter APS Inverter/Charger 2000W, APS2012 Inverter/Charger, Instruction manual with warranty information |
| Product Name | PowerVerter APS 4kW Inverter |
| Additional Information | Extended Run UPS Configure as a UPS for long-term battery support of telecom systems, security alarms, computer systems and various other motorized and electronic loads., Standalone Power Alternative power source for use in off-grid, backwoods, alternative energy and export applications where commercial power is not continuously available., Automotive Connect to an automotive electrical system to run power tools, computers, electronic test equipment, home entertainment and other AC appliances in fleet service vehicles, over-the-road trucks, campers, RVs, minivans and more., Allows unlimited runtime capability by allowing the use any number of user-supplied batteries, Frequency control for operating stability, User supplies cabling, 4 gauge or larger recommended, Cooling Method: Fan, Auto-transfer to enable battery charging and automatic UPS support for blackouts and brownouts, RJ45 port allows connection of APS remote switch, Battery runtime is dependent upon the size and number of user-supplied batteries in 12V configuration, Advanced 20/60 amp selectable , 3-stage battery charger and selector switch for gel or wet cell batteries, Resettable circuit breaker protects APS against system overloadLow voltage transfer to battery power: User configurable to 75V, 85V, 95V and 105VHigh voltage transfer to battery power: User configurable to 135V, 145VLED Alarm and Switches: Front Panel LEDS : Six LEDS, Switches : Three position on/off/remote switch enables simple on/off power control plus auto or remote setting |
| Load Sensing | Optional load sense function enables automatic inverter shutoff and startup as connected equipment is powered off and on. Front panel load sense potentiometer can be set to shutoff or turn on inverter power in response to loads of any level, up to 150 watts. |
| Nominal Output Voltage(s) Supported | 120 V |
| Output Receptacles | Hardwire |
| Output Voltage Regulation | LINE POWER (AC): Maintains 120V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains PWM sine wave output voltage of 120 V AC (+/-5%). |
| Transfer Time (Line Power to Battery Mode) | 16.6 milliseconds (typical - compatible with many computers, servers and networking equipment - verify transfer time compatibility of loads for UPS applications) |
| Battery Pack Accessory (Optional) | 98-121 sealed lead acid battery (optional) |
| High Voltage Transfer to Battery Power | In AC "auto" mode, inverter/charger switches to battery mode as line voltage increases to 135V (user adjustable to 145 - see manual) |
| Unit Dimensions (hwd / in.) | 7.25 x 8.5 x 16.25 |
| Expandable Runtime | Yes |
| Recommended Electrical Service | DC INPUT: Requires 12V DC input source capable of delivering 192A for the required duration (when used at full continuous capacity - DC requirements increase during Over-Power and Double-Boost operation). |
| Battery Charge | 25A / 100A (selectable) |
| Form Factors Supported | Mounting slots enable permanent placement of inverter on any horizontal surface |
| Package Includes | APS2012 2000W PowerVerter APS 12V DC 120V AC Inverter/Charger;Owner's manual |
| Voltage Compatibility (VAC) | 120 |
| Low Voltage Transfer to Battery Power | In AC "auto" mode, inverter/charger switches to battery mode as line voltage drops to 75V (user adjustable to 85, 95, 105V - see manual) |
| Nominal Input Voltage(s) Supported | 120V AC |
| Switches | 3 position on/off/remote switch enables simple on/off power control plus "auto/remote" setting that enables distant on/off control of the inverter system when used in conjunction with optional APSRM4 accessory when used in inverter mode. In AC uninterruptible power mode, "auto/remote" setting enables automatic transfer from line power to battery power - to maintain continuous AC power to connected loads. |
| Overload Protection | Includes 25A input breaker dedicated to the charging system and 20A output breaker for AC output loads |
| Frequency Compatibility | 60 Hz |
| Material of Construction | Polycarbonate |
| AC Suppression Joule Rating | 600 |
| Voltage Compatibility (VDC) | 12 |
| Front Panel LEDs | Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences. |
| Relative Humidity | 0%-95% Non-Condensing |
| DC System Voltage (VDC) | 12 |
| Maximum Input Amps / Watts | DC INPUT: Full continuous load - 192A at 12V DC. AC INPUT: 38 amps at 120V AC with full inverter and charger load (21A max charger-only / combined input load to support charger and AC output is automatically controllable to 66%-33%-0% based on AC output l |
| Output Frequency Regulation | 60 Hz (+/- 0.3 Hz) |
| Cooling Method | Fan |
| Package Quantity | 1 |
