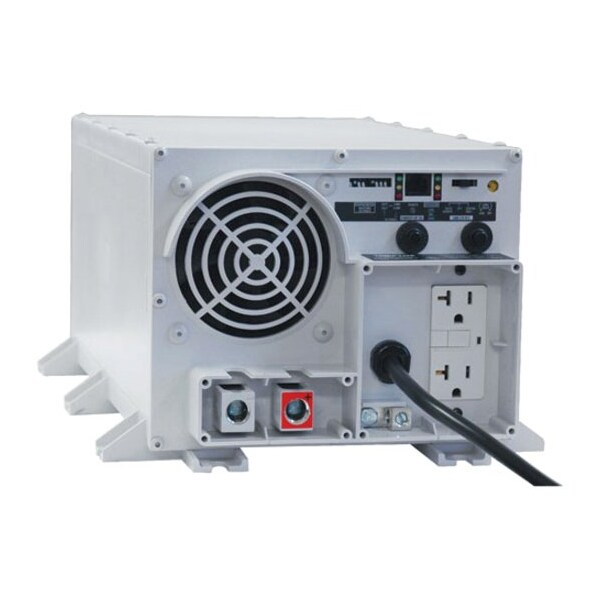

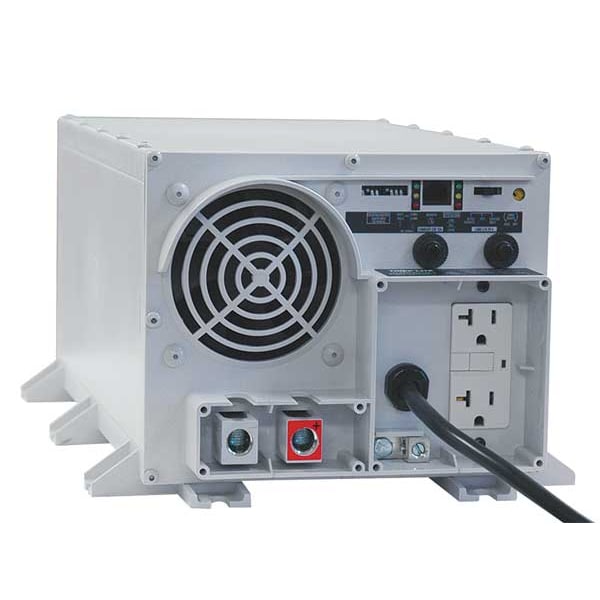

Power Inverter and Battery Charger, Modified Sine Wave, 4,000 W Peak, 2,000 W Continuous, 2 Outlets
| Item | Power Inverter and Battery Charger |
|---|---|
| Peak Output Power | 4,000 W |
| Continuous Output Power | 2,000 W |
| Inverter Output Form | Modified Sine Wave |
| Inverter Input Voltage | 12V DC; 120V AC |
| Inverter Output Voltage | 120V AC |
| Outlet Type | GFCI |
| DC Connection | Bolt Down Terminals |
| Number of Outlets | 2 |
| Standards | CSA, UL458 |
| Case Material | Polycarbonate |
| Charger Output Voltage | 120V |
| Features | Automatic Overload, Thermal Shutoff |
| Width | 16-1/4 in |
| Inverter Height | 7.3 in |
| Charger Depth | 16.3 in |
| Inverter Depth | 16.3 in |
| Charger Input Voltage | 120 V AC |
| Inverter Width | 8-1/2 in |
| Charger Output Amps | 60 A |
| Charger Height | 7.3 in |
| Automatic/Manual | Automatic |
| Nominal Output Power | 2,000 W |
| Depth | 7-1/4 in |
| Charger Width | 8-1/2 in |
| Includes | Remote Control Module |
| Height | 8-1/2 in |
| Inveter Output Voltage | 120V |
| Output Frequency | 60 Hz |
| Charger DxWxH | 16.3 in x 8-1/2 in x 7.3 in |
| Input Voltage | 12VDC |
| Output Voltage | 115VAC |
| Charger Input Current | 15 A |
| Charger Output Current | 60 A |
| Product Name | UT2012UL DC-to-AC Inverter |
| Package Contents | UT2012UL DC-to-AC Inverter, Remote, Remote Battery Temperature Sensor Cable, Instruction Manual with Warranty Information |
| Maximum Frequency | 60 Hz |
| Nominal Output Voltage(s) Supported | 120 V |
| Expandable Runtime | Yes |
| AC Suppression Joule Rating | 600 |
| Low Voltage Transfer to Battery Power | In AC "auto" mode, inverter / charger switches to battery mode as line voltage drops to 75V (user adjustable to 85,95,105 -see manual) |
| Frequency Compatibility | 60 Hz |
| Form Factors Supported | Mounting slots enable permanent placement of inverter on any horizontal surface |
| DC System Voltage (VDC) | 12 |
| Relative Humidity | 0%-95% Non-Condensing |
| Output Nominal Voltage | 120V |
| Output Receptacles | 5-15R |
| Receptacle Color | White |
| High Voltage Transfer to Battery Power | In AC "auto" mode, inverter / charger switches to battery mode as line voltages increases 135V (user adjustable to 145 -see manual) |
| Material of Construction | Polycarbonate |
| Transfer Time (Line Power to Battery Mode) | 16.6 milliseconds (typical -compatible with many computers, servers and networking equipment -verify transfer time compatibility loads for UPS applications) |
| Recommended Electrical Service | DC INPUT: Requires 12VDC input source capable of delivering 192A for the required Duration (when used at full continuous capacity- DC requirements increase during Over-Power and Double-Boost operation). AC INPUT: 15A 120VAC recommended. |
| Front Panel LEDs | Set of (6) LEDs offer continuous status information on load percentage ( 6 levels reported) and battery charge level (7 levels reported) See manual for sequences |
| Nominal Input Voltage(s) Supported | 120V AC |
| Outlet Details | 2 NEMA 5-15R GFCI protected outlets |
| Switches | 3 position on / off remote switch enables simple on / off power control plus "auto/ remote" |
| Voltage Compatibility (VDC) | 12 |
| Voltage Compatibility (VAC) | 120 |
| Product Certifications | UL 458, CSA |
| Overload Protection | Includes 25A input breaker dedicated to the charging system and 20A output breaker for AC output loads |
| Output Frequency Regulation | 60 Hz (+/- 0.3Hz) |
| Battery Charge | 15A / 60A (selectable) |
| Output Voltage Regulation | LINE POWER (AC): Maintains 120V nominal sine wave output from line Source. Inverter Power (AC) Maintains PWM sine wave output voltage of 120 VAC (+/- 5%) |
| Battery Pack Accessory (Optional) | 98-121 sealed lead acid battery (optional) |
| Input Cord Length Details | DC INPUT: User supplies cabling. 6 gauge or larger (see manual) AC INPUT: attached 6ft. AC line cord with plug |
| Unit Dimensions (hwd / in.) | 7.25 x 8.5 x 16.25 |
| Package Includes | UT2012UL Inverter/Charger;APSRM4 Remote;Remote battery temperature sensor cable;Instruction manual with warranty information |
| Cooling Method | Fan |
| Package Quantity | 1 |
