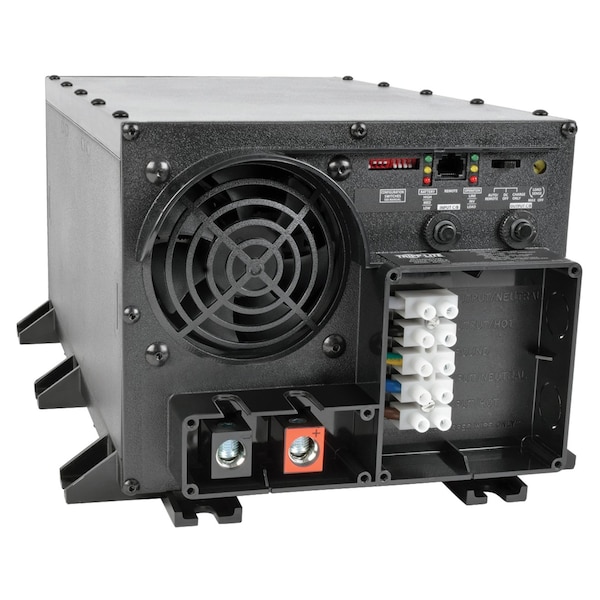

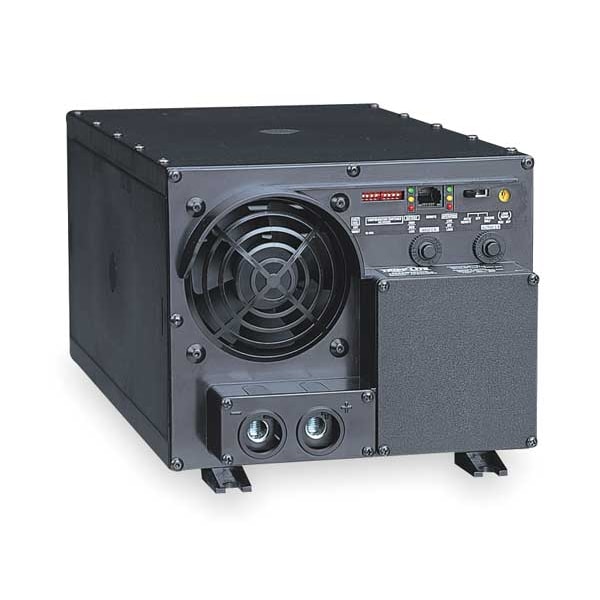

Power Inverter and Battery Charger, Modified Sine Wave, 4,800 W Peak, 2,400 W Continuous, 1 Outlets
| Item | Power Inverter and Battery Charger |
|---|---|
| Peak Output Power | 4,800 W |
| Continuous Output Power | 2,400 W |
| Inverter Output Form | Modified Sine Wave |
| Inverter Input Voltage | 24V DC; 120V AC |
| Inverter Output Voltage | 120V AC |
| Outlet Type | Hardwired |
| DC Connection | Bolt Down Terminals |
| Number of Outlets | 1 |
| Case Material | Polycarbonate |
| Inverter Height | 7.3 in |
| Charger Output Amps | 55 A |
| Charger Output Voltage | 120V |
| Charger Depth | 16.3 in |
| Application | Powering Tools; Saws; Motors; Pumps; Portable Lighting; Appliances and Computer Equipment in Heavy-Load Conditions |
| Charger Width | 8-1/2 in |
| Charger Height | 7.3 in |
| Depth | 16-1/4 in |
| Height | 7-1/4 in |
| Max. Input Current | Full continuous load - 112 A at 24V DC; AC INPUT: 44 A at 120V AC with full inverter and charger load |
| Width | 8-1/2 in |
| Automatic/Manual | Automatic |
| Inverter Depth | 16.3 in |
| Nominal Output Power | 2,400 W |
| Charger Input Voltage | 120 V AC |
| Inverter Width | 8-1/2 in |
| Features | Automatic Transfer Switching, Automatic Voltage Regulation, Meets Normal and Peak Power Demands, Reliable Power for Mobile, Emergency and Remote Sites, Remote Control Capability, Rugged Polycarbonate Housing |
| Inveter Output Voltage | 120V |
| Output Frequency | 60 Hz |
| Charger Output Current | 55 A |
| Charger Input Current | 24 A |
| Output Voltage | 115VAC |
| Charger DxWxH | 16.3 in x 8-1/2 in x 7.3 in |
| Input Voltage | 24VDC |
| Product Color | Black |
| Product Series | APS |
| Maximum Frequency | 60 Hz |
| Product Name | PowerVerter APS APS2424 DC-to-AC Inverter |
| Package Contents | PowerVerter APS APS2424 DC-to-AC Inverter, Instruction Manual with Warranty Information |
| Product Line | PowerVerter |
| Battery Charge | 14A / 55A (selectable) |
| Relative Humidity | 0%-95% Non-Condensing |
| Output Receptacles | Hardwire |
| Recommended Electrical Service | DC INPUT: Requires 24VDC input source capable of delivering 112A for the required duration (when used at full continuous capacity - DC requirements increase during Over-Power and Double-Boost operation). |
| Overload Protection | Includes 30A input breaker dedicated to the charging system and 20A output breaker for AC output loads |
| AC Suppression Joule Rating | 600 |
| Maximum Input Amps / Watts | DC INPUT: Full continuous load - 112A at 24VDC. AC INPUT: 44 amps at 120VAC with full inverter and charger load (24A max charger-only / combined input load to support charger and AC output is automatically controllable to 66%-33%-0% based on AC output load |
| DC System Voltage (VDC) | 24 |
| Nominal Output Voltage(s) Supported | 120 V |
| Transfer Time (Line Power to Battery Mode) | 16.6 milliseconds (typical - compatible with many computers, servers and networking equipment - verify transfer time compatibility of loads for UPS applications) |
| Nominal Input Voltage(s) Supported | 120V AC |
| Battery Pack Accessory (Optional) | 98-121 sealed lead acid battery (optional) |
| Voltage Compatibility (VDC) | 24 |
| Load Sensing | Optional load sense function enables automatic inverter shutoff and startup as connected equipment is powered off and on. Front panel load sense potentiometer can be set to shutoff or turn on inverter power in response to loads of any level, up to 150 watts. |
| Output Frequency Regulation | 60 Hz (+/- 0.3 Hz) |
| Switches | 3 position on/off/remote switch enables simple on/off power control plus "auto/remote" setting that enables distant on/off control of the inverter system when used in conjunction with optional APSRM4 accessory when used in inverter mode. In AC uninterruptible power mode, "auto/remote" setting enables automatic transfer from line power to battery power - to maintain continuous AC power to connected loads. |
| Package Includes | APS2424 2400W PowerVerter APS 24V DC 120V AC Inverter/Charger;Owner's manual |
| Frequency Compatibility | 60 Hz |
| Output Voltage Regulation | LINE POWER (AC): Maintains 120V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains PWM sine wave output voltage of 120 V AC (+/-5%). |
| Front Panel LEDs | Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences. |
| Unit Dimensions (hwd / in.) | 7.25 x 8.5 x 16.25 |
| High Voltage Transfer to Battery Power | In AC "auto" mode, inverter/charger switches to battery mode as line voltage increases to 135V (user adjustable to 145 - see manual) |
| Form Factors Supported | Mounting slots enable permanent placement of inverter on any horizontal surface |
| Voltage Compatibility (VAC) | 120 |
| Expandable Runtime | Yes |
| Material of Construction | Polycarbonate |
| Low Voltage Transfer to Battery Power | In AC "auto" mode, inverter/charger switches to battery mode as line voltage drops to 75V (user adjustable to 85, 95, 105V - see manual) |
| Cooling Method | Fan |
| Package Quantity | 1 |
