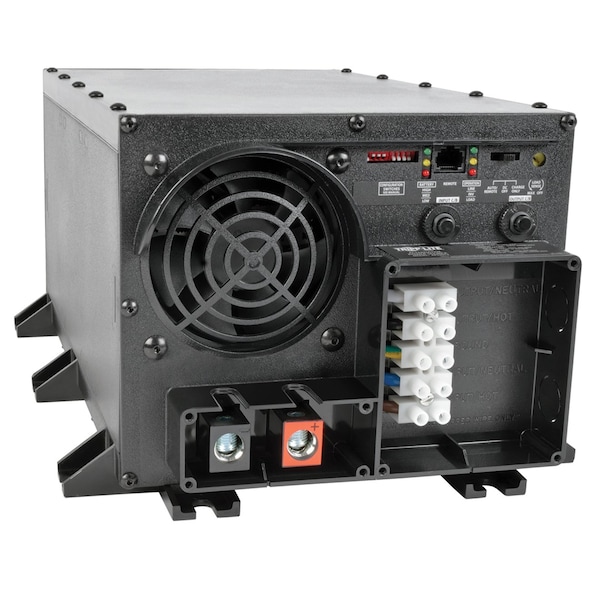

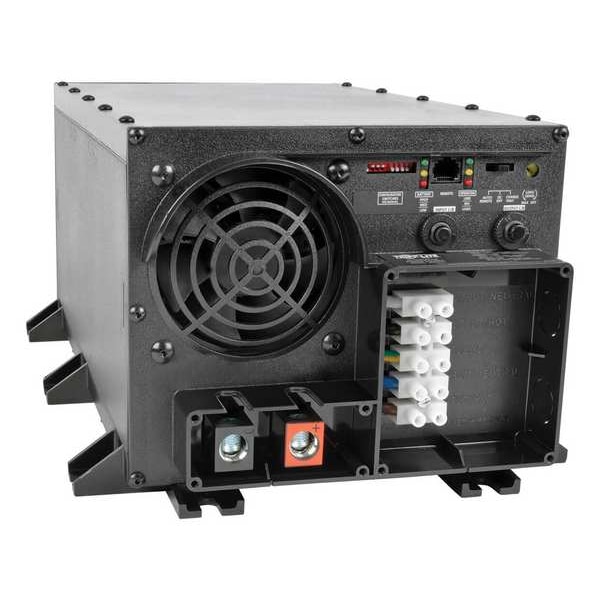

Power Inverter and Battery Charger, Modified Sine Wave, 4,800 W Peak, 2,400 W Continuous, 1 Outlets
| Item | Power Inverter and Battery Charger |
|---|---|
| Peak Output Power | 4,800 W |
| Continuous Output Power | 2,400 W |
| Inverter Output Form | Modified Sine Wave |
| Inverter Input Voltage | 48V DC; 120V AC |
| Inverter Output Voltage | 120V AC |
| Outlet Type | Hardwired |
| DC Connection | Bolt Down Terminals |
| Number of Outlets | 1 |
| Standards | CSA CAN/CSA-C22.2 No.107.1-M91, NOM, RoHS, UL1778 |
| Case Material | Polycarbonate |
| Application | Powering Tools; Saws; Motors; Pumps; Portable Lighting; Appliances and Computer Equipment in Heavy-Load Conditions |
| Features | Automatic Transfer Switching, Automatic Voltage Regulation, Meets Normal and Peak Power Demands, Reliable Power for Mobile, Emergency and Remote Sites, Remote Control Capability, Rugged Polycarbonate Housing |
| Charger Width | 8-1/2 in |
| Inverter Height | 7.3 in |
| Charger Output Amps | 15 A |
| Inverter Depth | 16.8 in |
| Depth | 7-1/4 in |
| Width | 16-3/4 in |
| Charger Input Voltage | 120 V AC |
| Temp. Range | 32°F to 104°F |
| Height | 8-1/2 in |
| Charger Height | 7.3 in |
| Charger Depth | 16.8 in |
| Inverter Width | 8-1/2 in |
| Charger Output Voltage | 120V |
| Automatic/Manual | Automatic |
| Max. Input Current | Full continuous load - 56 A at 48V DC; 33 A at 120V AC with full inverter and charger load |
| Nominal Output Power | 2,400 W |
| Inveter Output Voltage | 120V |
| Output Frequency | 60 Hz |
| Charger Output Current | 20 A |
| Charger Input Current | 13 A |
| Charger DxWxH | 16.8 in x 8-1/2 in x 7.3 in |
| Output Voltage | 115VAC |
| Input Voltage | 48VDC |
| Maximum Frequency | 60 Hz |
| System Requirements | DC INPUT: Requires 48VDC input source capable of delivering 56A for the required duration (when used at full continuous capacity). For automotive applications, professional hardwire installation with 100A minimum battery system fusing is recommended. |
| Product Line | PowerVerter |
| Product Name | PowerVerter APS 2400 Watt Power Inverter |
| Input Voltage Range | 40 DC to 60 V DC |
| Product Series | APS |
| Package Contents | PowerVerter APS 2400 Watt Power Inverter, APS2448 Inverter/Charger, Instruction manual with warranty information |
| Expandable Runtime | Yes |
| Output Frequency Regulation | 60 Hz (+/- 0.3 Hz) |
| Front Panel LEDs | Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences. |
| Load Sensing | Optional load sense function enables automatic inverter shutoff and startup as connected equipment is powered off and on. Front panel load sense potentiometer can be set to shutoff or turn on inverter power in response to loads of any level, up to 150 watts. |
| Switches | 3 position on/off/remote switch enables simple on/off power control plus "auto/remote" setting that enables distant on/off control of the inverter system when used in conjunction with optional APSRM4 accessory when used in inverter mode. In AC uninterruptible power mode, "auto/remote" setting enables automatic transfer from line power to battery power - to maintain continuous AC power to connected loads. |
| Voltage Compatibility (VAC) | 120 |
| Nominal Output Voltage(s) Supported | 120 V |
| Low Voltage Transfer to Battery Power | In AC "auto" mode, inverter/charger switches to battery mode as line voltage drops to 75V (user adjustable to 85, 95, 105V - see manual) |
| Frequency Compatibility | 60 Hz |
| Form Factors Supported | Mounting slots enable permanent placement of inverter on any horizontal surface |
| Recommended Electrical Service | DC INPUT: Requires 48VDC input source capable of delivering 56A for the required duration (when used at full continuous capacity - DC requirements increase during Over-Power and Double-Boost operation). |
| Maximum Input Amps / Watts | DC INPUT: Full continuous load - 56A at 48VDC. AC INPUT: 33 amps at 120VAC with full inverter and charger load (13A max charger-only / combined input load to support charger and AC output is automatically controllable to 66%-33%-0% based on AC output load |
| Relative Humidity | 0%-95% Non-Condensing |
| Nominal Input Voltage(s) Supported | 120V AC |
| Operating Temperature | 32 to 104 F (0 to 40 C) |
| Overload Protection | Includes 15A input breaker dedicated to the charging system and 20A output breaker for AC output loads. |
| Output Receptacles | Hardwire |
| Material of Construction | Polycarbonate |
| Product Certifications | CAN/CSA-C22.2 No. 107.1, NOM, UL 1778 |
| Package Includes | APS2448UL 2400W PowerVerter APS 48V DC 120V AC Inverter/Charger;Owner's manual |
| Battery Pack Accessory (Optional) | 98-121 sealed lead acid battery (optional) |
| High Voltage Transfer to Battery Power | In AC "auto" mode, inverter/charger switches to battery mode as line voltage increases to 135V (user adjustable to 145 - see manual) |
| DC System Voltage (VDC) | 48 |
| Unit Dimensions (hwd / in.) | 7.25 x 8.5 x 16.75 |
| Voltage Compatibility (VDC) | 48 |
| Battery Charge | 15A |
| Output Voltage Regulation | LINE POWER (AC): Maintains 120V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains PWM sine wave output voltage of 120 V AC (+/-5%). |
| Transfer Time (Line Power to Battery Mode) | 8 milliseconds (typical - compatible with many computers, servers and networking equipment - verify transfer time compatibility of loads for UPS applications) |
| Cooling Method | Fan |
| Package Quantity | 1 |
