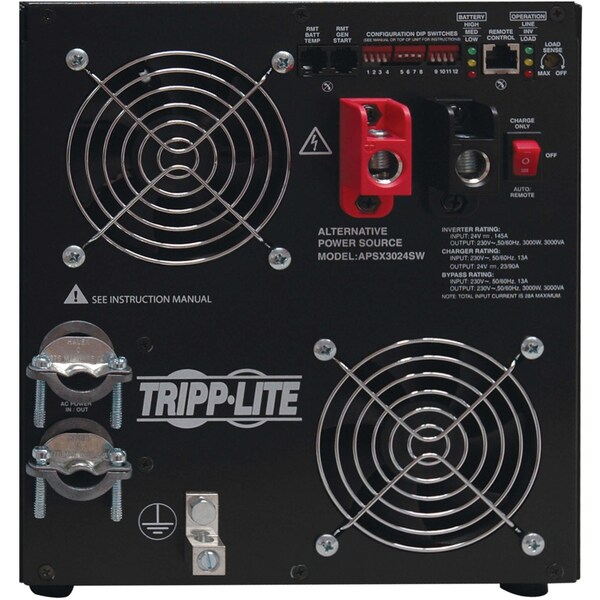

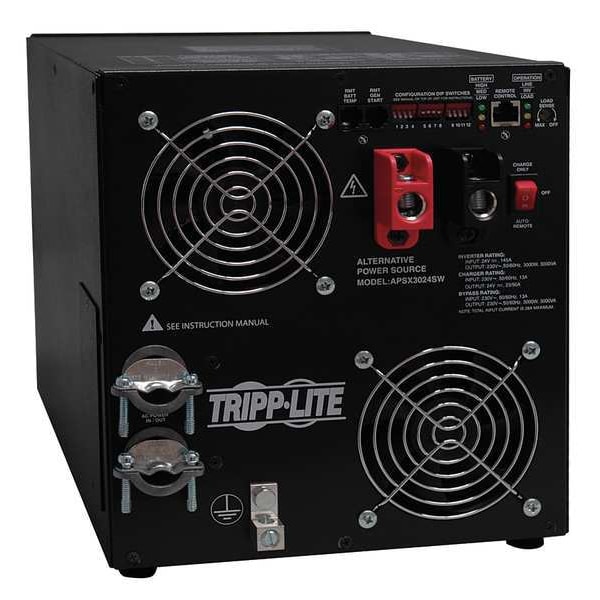

Power Inverter and Battery Charger, Pure Sine Wave, 6,000 W Peak, 3,000 W Continuous, 1 Outlets
| Item | Power Inverter and Battery Charger |
|---|---|
| Peak Output Power | 6,000 W |
| Continuous Output Power | 3,000 W |
| Inverter Output Form | Pure Sine Wave |
| Inverter Input Voltage | 24V DC; 230V AC |
| Inverter Output Voltage | 230V AC |
| Outlet Type | Hardwired |
| DC Connection | Bolt Down Terminals |
| Number of Outlets | 1 |
| Case Material | Steel |
| Depth | 10.08 in |
| Automatic/Manual | Automatic |
| Standards | RoHS, UL1741 |
| Inverter Height | 10.1 in |
| Features | Automatic Voltage Regulation, Emergency and Remote Sites, External Ports, Front-Panel LEDs, Pure Sine-Wave Power for Normal and Peak Power Demands, Reliable Power for Mobile, Rugged Steel Housing |
| Inverter Depth | 12.4 in |
| Charger Width | 8.9 in |
| Charger Depth | 12.4 in |
| Width | 12.4 in |
| Charger Output Amps | 90 A |
| Temp. Range | 32°F to 104°F |
| Max. Input Current | 28 A |
| Height | 8.9 in |
| Application | Speed Tools; Computers; Leds; Fans; Audio/Video Components |
| Inverter Width | 8.9 in |
| Charger Input Voltage | 230 V AC |
| Nominal Output Power | 3,000 W |
| Charger Output Voltage | 230V |
| Charger Height | 10.1 in |
| Inveter Output Voltage | 230V |
| Output Frequency | 50/60 Hz |
| Input Voltage | 24VDC |
| Output Voltage | 230VAC |
| Charger Input Current | 28 A |
| Charger DxWxH | 12.4 in x 8.9 in x 10.1 in |
| Charger Output Current | 90 A |
| Product Series | APS X |
| Product Name | PowerVerter APSX3024SW DC-to-AC Power Inverter |
| Maximum Frequency | 50 Hz |
| Product Line | PowerVerter |
| Package Contents | PowerVerter APSX3024SW DC-to-AC Power Inverter, Instruction Manual with Warranty Information, Remote Control Switch |
| Frequency Compatibility Details | 50 or 60 Hz (user-selectable) |
| Brownout Correction | Brownouts are automatically boosted by 10% and 20% |
| Transfer Time (Line Power to Battery Mode) | Dip-switch selectable 20 millisecond (full cycle) / 10 millisecond (half-cycle) transfer times which are compatible with many computers, servers and networking equipment - verify transfer time compatibility of loads for UPS applications |
| Package Includes | APSX3024SW 3000W APS X Series 24V DC 230V AC Inverter/Charger;Owner's manual |
| Front Panel LEDs | Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences. |
| Nominal Input Voltage(s) Supported | 230V AC |
| Switches | 3 position on/off/remote switch enables simple on/off power control plus "auto/remote" setting that enables distant on/off control of the inverter system when used in conjunction with optional APSRM4 accessory when used in inverter mode. In AC uninterruptible power mode, "auto/remote" setting enables automatic transfer from line power to battery power - to maintain continuous AC power to connected loads. |
| Product Certifications | UL 1741 |
| Low Voltage Transfer to Battery Power | In 230V AC "auto" mode, inverter/charger switches to battery mode as line voltage drops to 170V AC (user adjustable to 180V). |
| Voltage Compatibility (VDC) | 24 |
| Expandable Runtime | Yes |
| Output Voltage Regulation | LINE POWER (AC): Maintains 230V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains sine wave output voltage of 230 VAC (+/-5%). |
| Battery Pack Accessory (Optional) | 98-121 sealed lead acid battery (optional) |
| High Voltage Transfer to Battery Power | In 230V AC "auto" mode, inverter/charger switches to battery mode as line voltage increases to 260V (user adjustable to 270 - see manual). |
| Battery Charge | Selectable 23 / 90A |
| Output Frequency Regulation | 50/60 Hz (+/- 0.3 Hz) |
| Maximum Input Amps | 28 |
| Relative Humidity | 0%-95% Non-Condensing |
| Voltage Regulation Description | Includes automatic voltage regulation to correct brownouts and overvoltages back to usable levels |
| DC System Voltage (VDC) | 24 |
| Frequency Compatibility | 50 / 60 Hz |
| Unit Dimensions (hwd / in.) | 10.08 x 8.9 x 12.4 |
| Material of Construction | Metal |
| Recommended Electrical Service | DC INPUT: Requires 24VDC input source capable of delivering 145A for the required duration (when used at full continuous capacity - DC requirements increase during OverPower and DoubleBoost operation). |
| Voltage Compatibility (VAC) | 230 |
| Output Receptacles | Hardwire |
| Overvoltage Correction | Overvoltages are automatically reduced by 10% |
| Nominal Output Voltage(s) Supported | 230 V |
| Operating Temperature | 32 to 104 F (0 to 40 C) |
| Grounding | Main grounding lug connects inverter/charger to earth or vehicle chassis ground |
| Cooling Method | Fan |
| Package Quantity | 1 |
